2001 Kawasaki KDX220R Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2001 Kawasaki KDX220R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

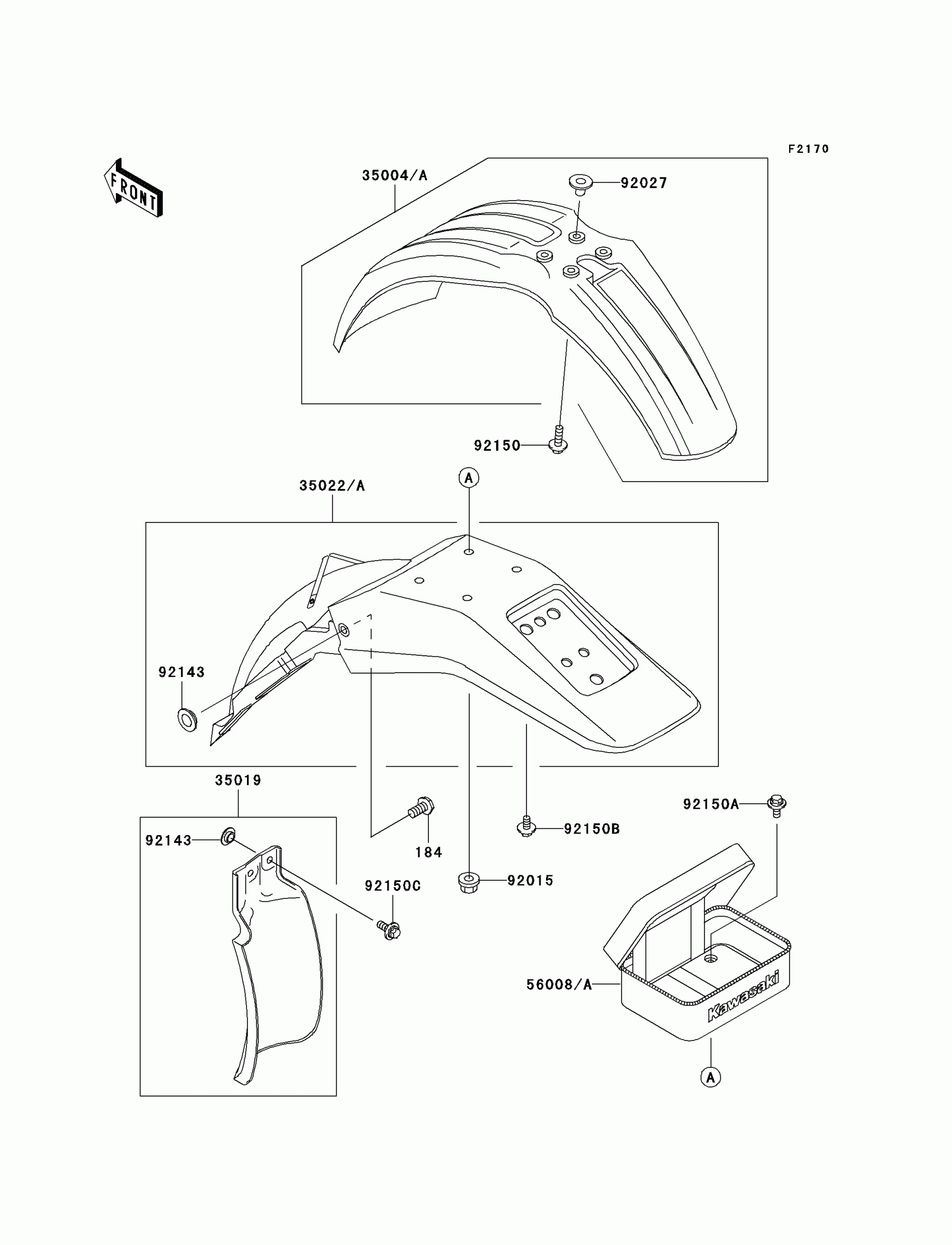

2001 Kawasaki KDX220R Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

184

BOLT-UPSET-WP-SMALL,8X16

184B0816

1
Out of stock

35004

FENDER-FRONT,L.GREEN

35004-1319-6W

1
Out of stock

35019

FLAP,RR FENDER,FR

35019-1323

1
Out of stock

35022

FENDER-COMP-REAR,L.GREEN

35022-1306-6W

1
Out of stock

56008

BAG,TOOL,BLACK

56008-1073-MW

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92027

COLLAR

92027-1936

1
Out of stock

92143

COLLAR

92143-1196

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92150A

BOLT,6X14

92150-1340

1
Out of stock

92150B

BOLT,6X12

92150-1435

1
Out of stock

92150C

BOLT,FLANGED,6X16

92150-1506

1
Out of stock
