1991 Kawasaki KDX200 Head Lamp Diagram

← All diagrams

Find the part on the Head Lamp diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

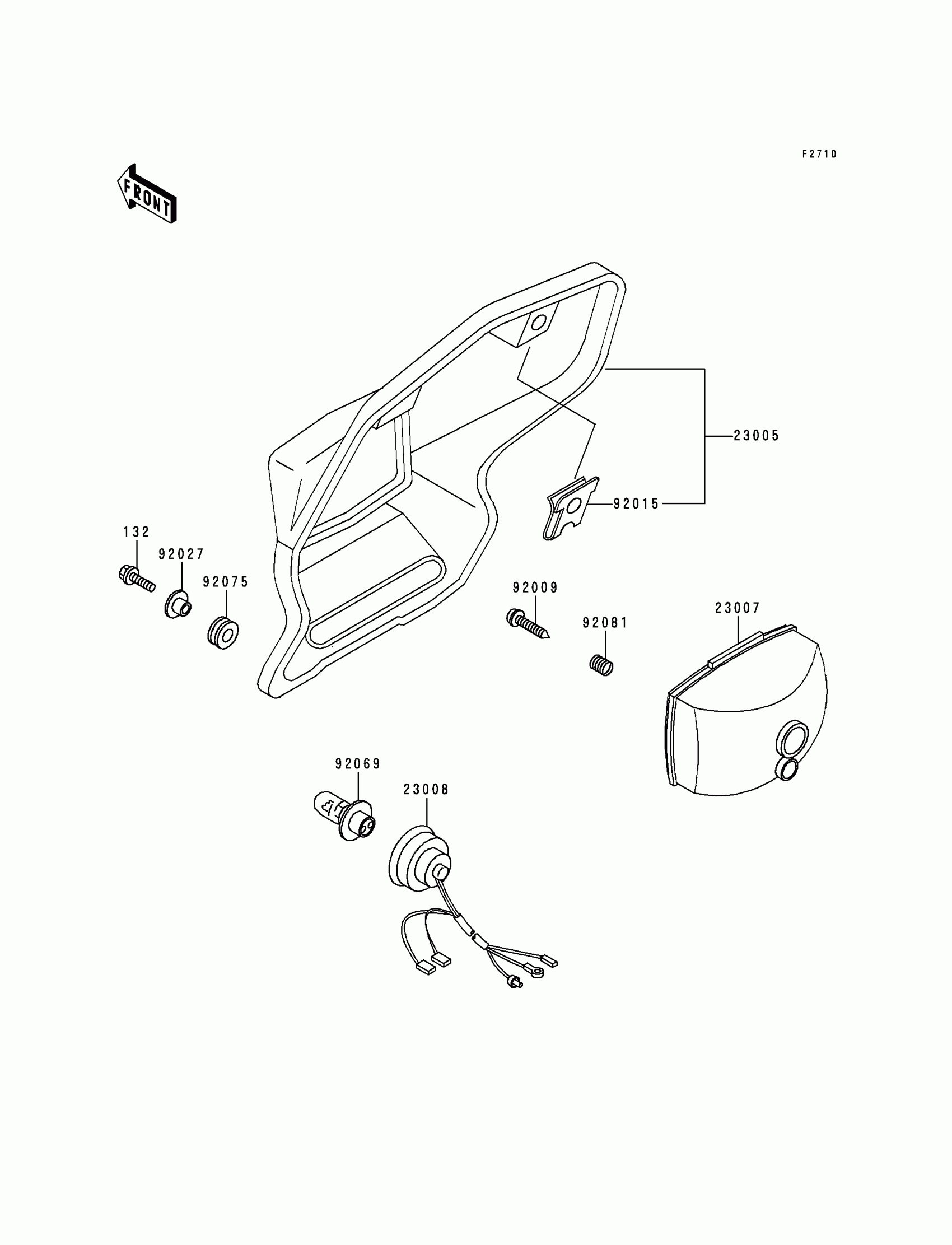

1991 Kawasaki KDX200 Head Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23005

1

$179.13

In stock

23005B

1

$149.17

In stock

23007A

LENS-COMP,HEAD LAMP

23007-1246

1

$50.25

In stock

23008A

1

$62.78

In stock

92009

SCREW

92009-1583

1
Out of stock

92015

NUT,6MM

92015-1826

1
Out of stock

92027

COLLAR

92027-1045

1

$4.37

In stock

92069A

BULB,12V 30/30W

92069-1080

1

$27.68

In stock

92075

DAMPER

92075-1028

1

$3.72

In stock

92081

1

$3.88

In stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock
