1991 Kawasaki KDX200 Rear Caliper Diagram

← All diagrams

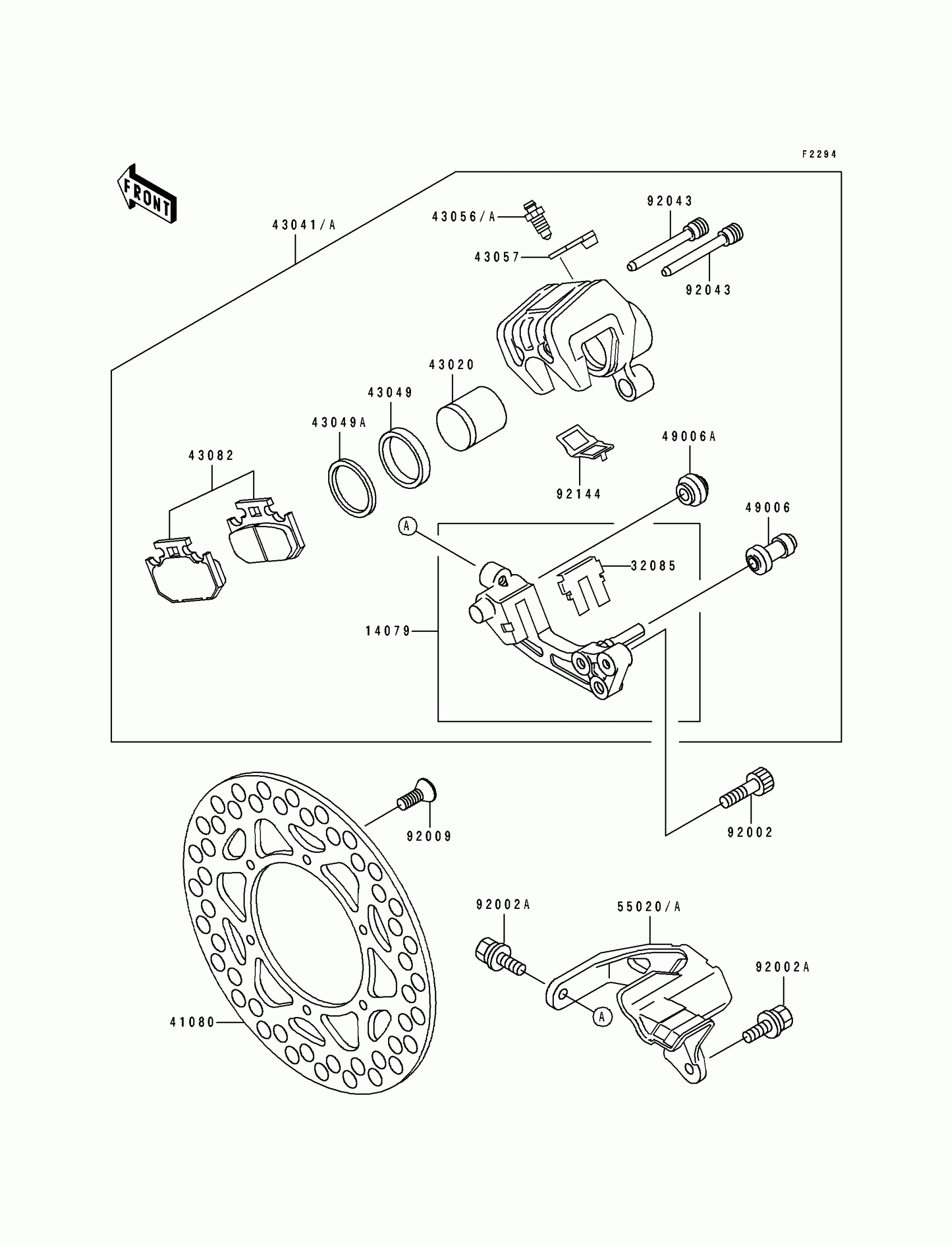

Find the part on the Rear Caliper diagram for your 1991 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1991 Kawasaki KDX200 Rear Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14079

1

$170.00

In stock

32085

STOPPER,PAD

32085-1315

1

$10.00

In stock

41080

DISC,RR

41080-1243

1

$237.27

In stock

43020

PISTON-COMP-BRAKE

43020-1088

1

$62.39

In stock

43041A

CALIPER-ASSY,RR

43041-1430

1

$404.75

In stock

43049

PACKING,PISTON SEAL

43049-1060

1

$15.29

In stock

43049A

PACKING,PISTON SEAL

43049-1061

1

$8.38

In stock

43056A

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43082

PAD-ASSY-BRAKE

43082-1090

1

$50.71

In stock

49006

BOOT,CALIPER

49006-1088

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1242

1

$4.34

In stock

55020A

GUARD,CALIPER,P.WHITE

55020-1323-6F

1

$34.83

In stock

92002

BOLT,SOCKET,8X25

92002-1442

1

$4.01

In stock

92002A

BOLT,6X18

92002-1952

1
Out of stock

92009

SCREW,6X14

92009-1546

1
Out of stock

92043

PIN,HANGER

92043-1416

1

$14.60

In stock

92144

SPRING,PAD

92144-1364

1

$15.88

In stock
