1985 Kawasaki KDX200 Brake Pedal Diagram

← All diagrams

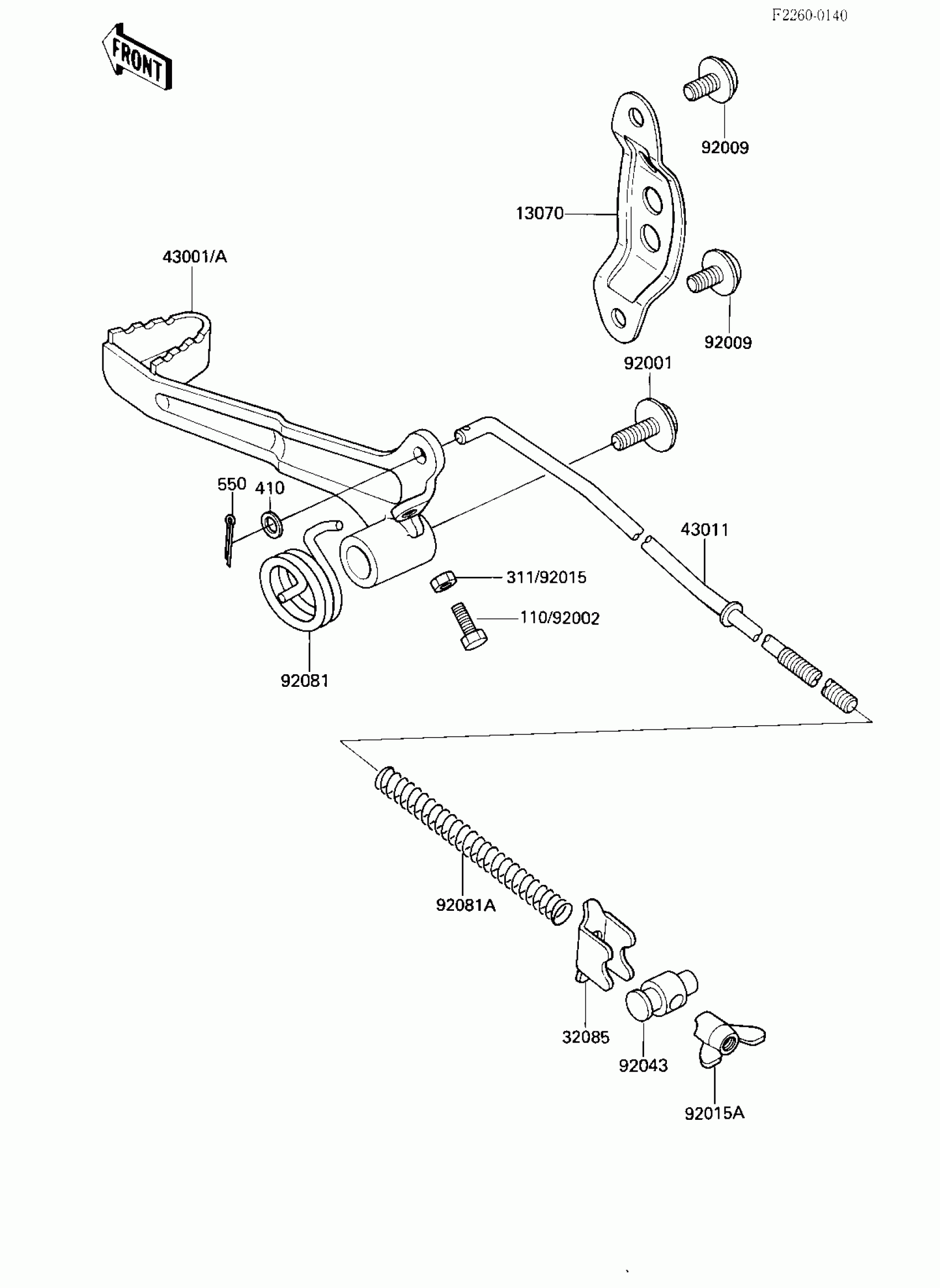

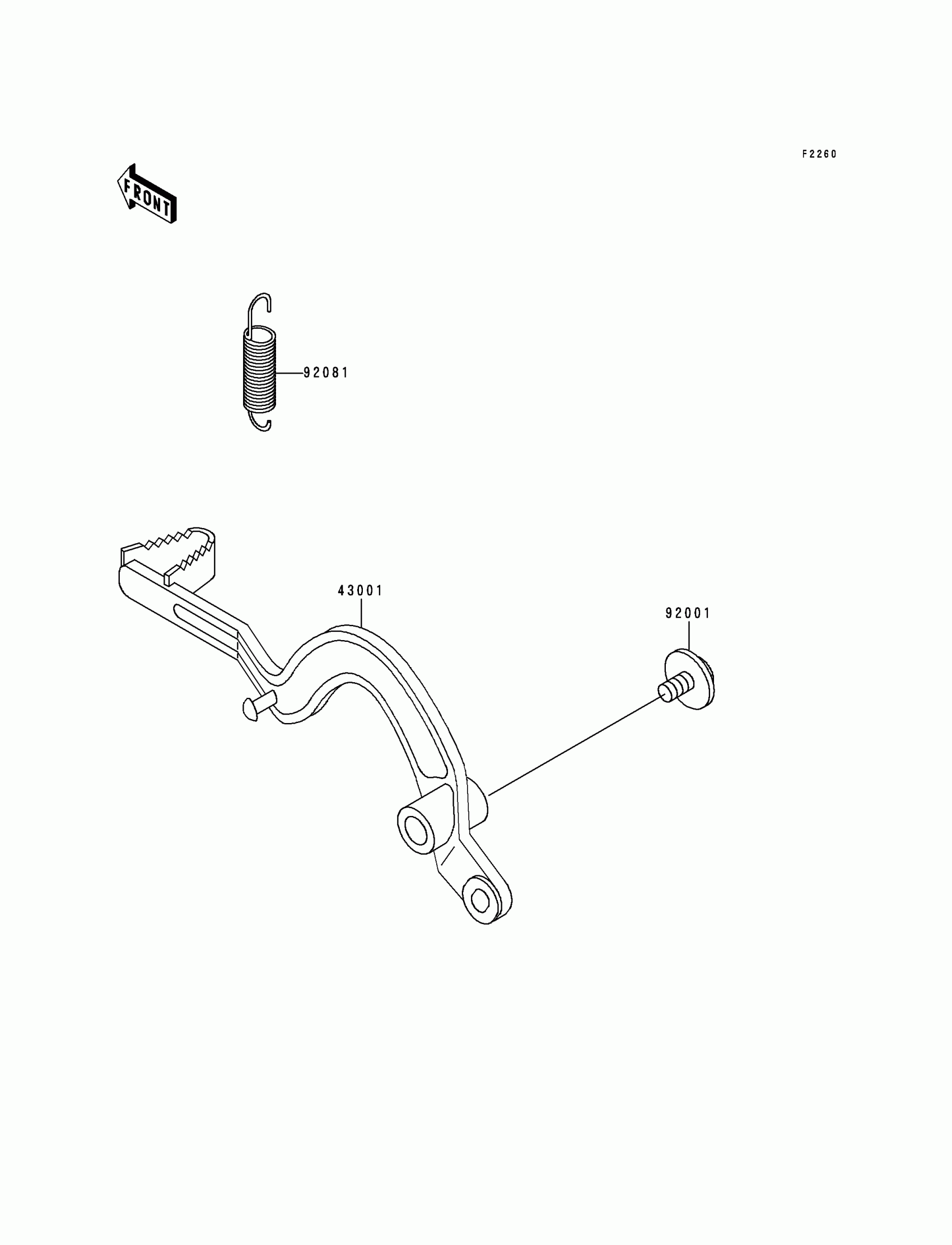

Find the part on the Brake Pedal diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Kawasaki KDX200 Brake Pedal Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,BRAKE ROD

13070-1082

1
Out of stock

32085

STOPPER,BRAKE ROD

32085-1115

1
Out of stock

43001A

LEVER-BRAKE,PEDAL

43001-1164

1

$124.87

In stock

43011

ROD-BRAKE

43011-1055

1
Out of stock

92001

BOLT,FLANGED,6X10

92001-1034

1

$8.16

In stock

92002

BOLT,6X20

92002-1373

1

$3.92

In stock

92009

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,6MM

92015-1391

1

$2.05

In stock

92015A

NUT,WING,6MM

92015-4004

1

$5.81

In stock

92043

PIN,BRAKE ROD

92043-1139

1
Out of stock

92081

SPRING,BRAKE PEDAL

92144-1085

1
Out of stock

92081A

SPRING,BRAKE ROD

92081-1688

1

$3.69

In stock

410

1

$1.19

In stock

550

PIN COTTER 2.0X15

550D2015

1
Out of stock
