1985 Kawasaki KDX200 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1985 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

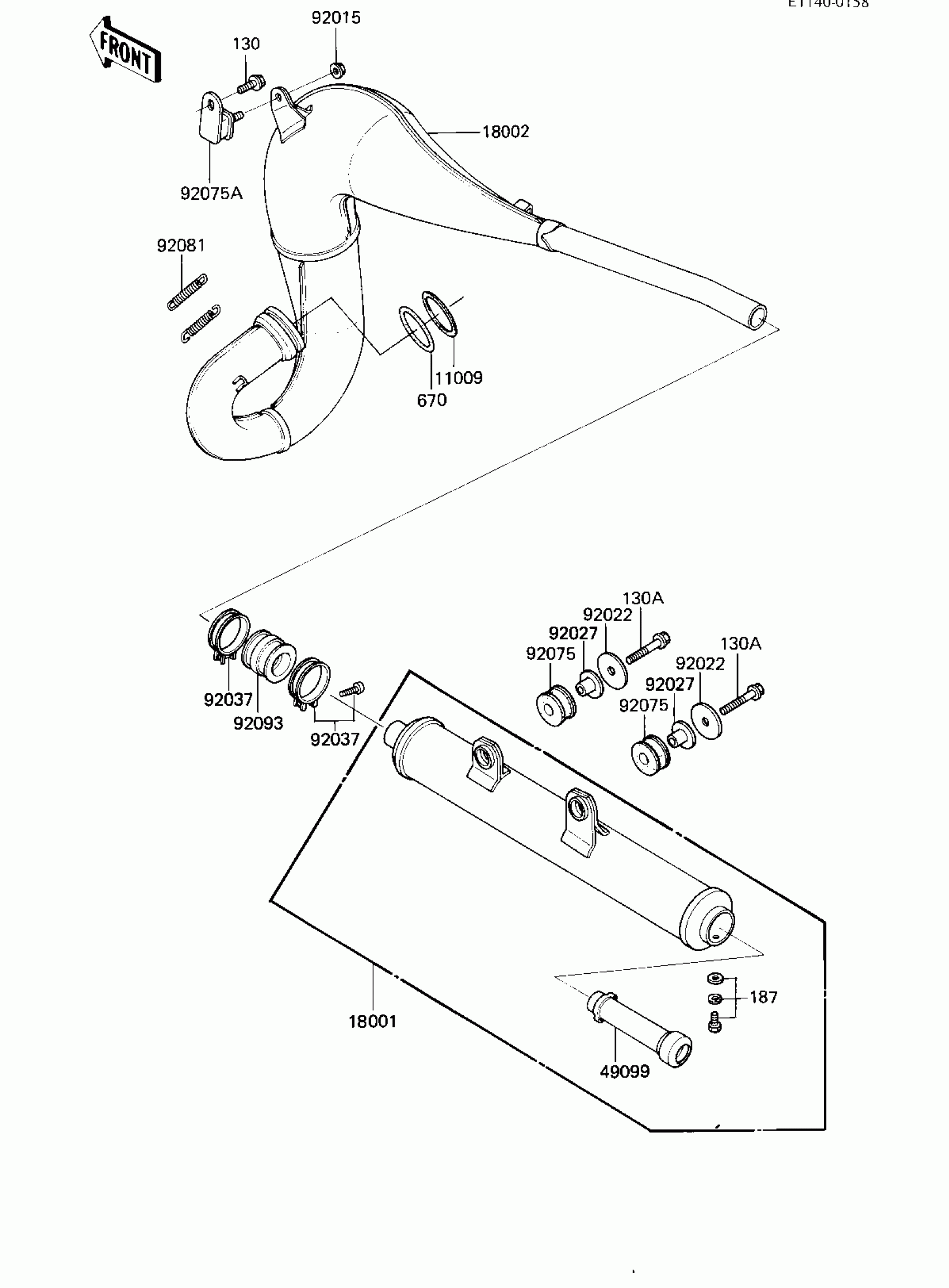

1985 Kawasaki KDX200 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST PIPE

11009-1123

1
Out of stock

18001

MUFFLER

18001-1414

1
Out of stock

18002

BODY-COMP-MUFFLER

18002-1317

1
Out of stock

49099

BAFFLE-PIPE MUFFLER

49099-1126

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,8.5X35X2.3

92022-298

1
Out of stock

92027

COLLAR,FUEL TANK FITT

92027-1134

1
Out of stock

92037

CLAMP,CARBURETOR HOLD

92037-1242

1
Out of stock

92075

DAMPER,MUFFLER

92075-1196

1
Out of stock

92075A

DAMPER,MUFFLER

92075-1891

1
Out of stock

92081

SPRING

92081-1526

1
Out of stock

92093

SEAL,EXHAUST PIPE

92093-1012

1
Out of stock

130

BOLT-FLANGED,6X12

130G0612

1
Out of stock

130A

BOLT,FLANGED,8X30

130G0830

1
Out of stock

187

BOLT 6X12

187B0612

1
Out of stock

670

O RING,45MM

670E3045

1
Out of stock
