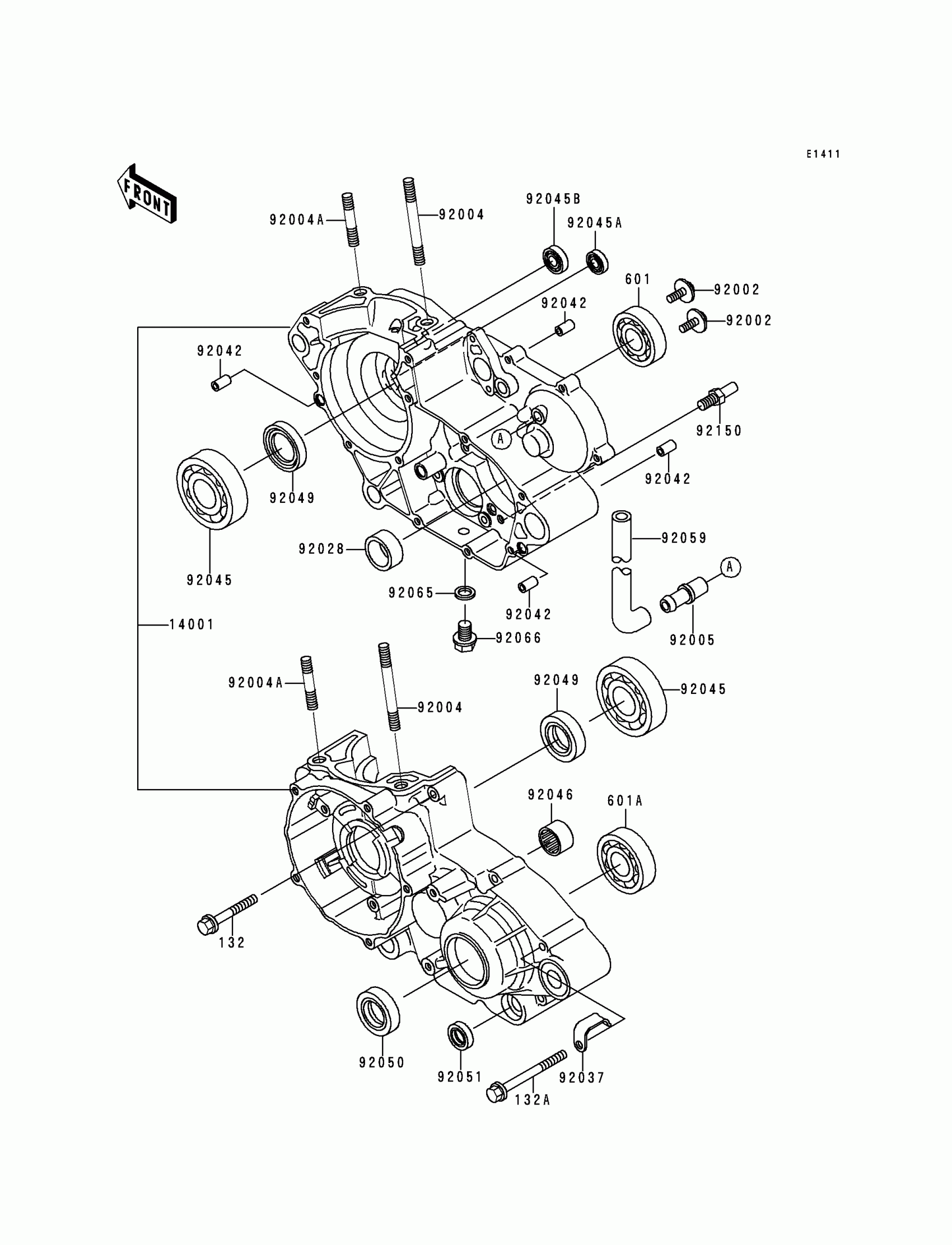

Kawasaki KDX200 CRANKCASE Diagram

#

Description
Price

11009

GASKET,10.5X16X1

92065-058

$3.03

14001A

SET-CRANKCASE

14001-5157

Unavailable

14069

BREATHER ASSY

14069-1001

$19.99

92001

BOLT,FLANGED,6X18

92001-1066

$4.67

92028

BUSHING

92028-1133

Unavailable

92028A

BUSHING,23X30X13

92028-132

$38.79

92037

CLAMP CABLE

92037-016

Unavailable

92037A

CLAMP,HARNESS

92037-1318

$7.25

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92045

BEARING,BALL,#6305SH

92045-1024

Unavailable

92046

BEARING-NEEDLE,#7E-HKS162412-1

92046-026

$19.46

92049

SEAL-OIL,TBJ25407

92049-1068

Unavailable

92049B

SEAL-OIL,TB3040

92050-033

$17.58

92049C

SEAL-OIL,TB13225.5

92051-005

$5.91

92059

TUBE,6X9X500

92059-1125

$14.06

92066

PLUG,DRAIN,10X12

92067-001

$3.36

92071

GROMMET,BREATHER

92071-042

$3.25

172

STUD,8X25

92004-1008

$2.46

172A

STUD 8X60

172G0860

Unavailable

601

BEARING-BALL,#6204C3

601B6204

$10.33

601A

BEARING-BALL,#6205C3

601B6205

$14.76
