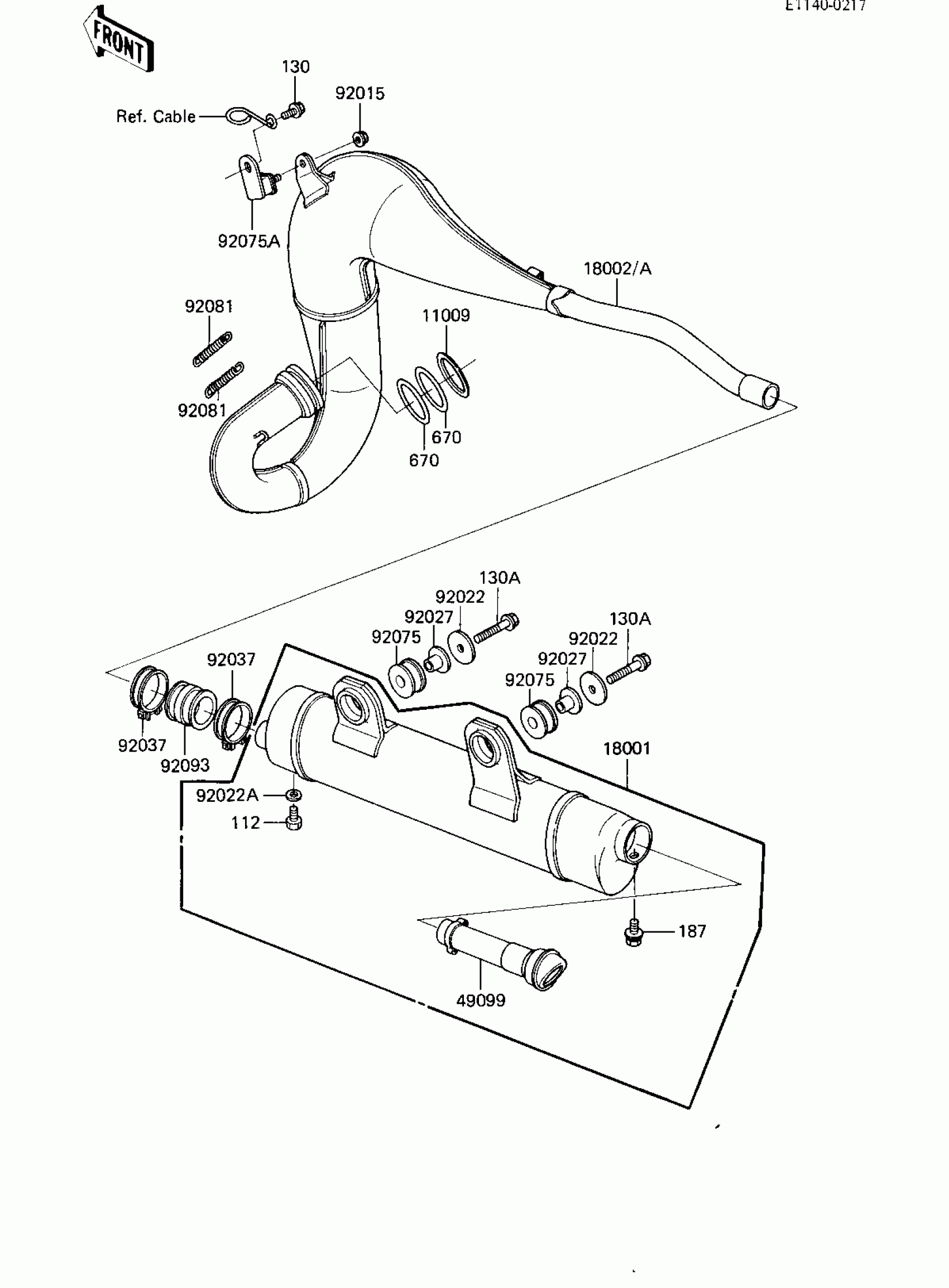

Kawasaki KDX200 MUFFLER (KDX200-A2/A3) Diagram

Description

Price

11009

GASKET,EXHAUST PIPE

11009-1123

Unavailable

18001

MUFFLER

18001-1483

$289.21

18002A

BODY-COMP-MUFFLER

18002-1558

$627.98

49099

BAFFLE-PIPE MUFFLER

49099-1221

Unavailable

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,8.5X35X2.3

92022-298

Unavailable

92022A

WASHER,6.2X11X1

92022-304

$2.92

92027

COLLAR

92027-1081

$9.29

92037

CLAMP

92037-177

Unavailable

92075

DAMPER,MUFFLER

92075-1196

Unavailable

92075A

DAMPER,MUFFLER

92075-1891

$29.76

92081

SPRING

92081-1526

$9.32

92093

SEAL,MUFFLER

92093-1014

Unavailable

112

BOLT-UPSET,6X8

112B0608

Unavailable

130

BOLT-FLANGED,6X12

130G0612

Unavailable

130A

BOLT,FLANGED,8X30

130G0830

Unavailable

187

BOLT 6X12

187B0612

Unavailable

670

O RING,45MM

670E3045

$14.69
