1988 Kawasaki KDX200 Front Brake Diagram

← All diagrams

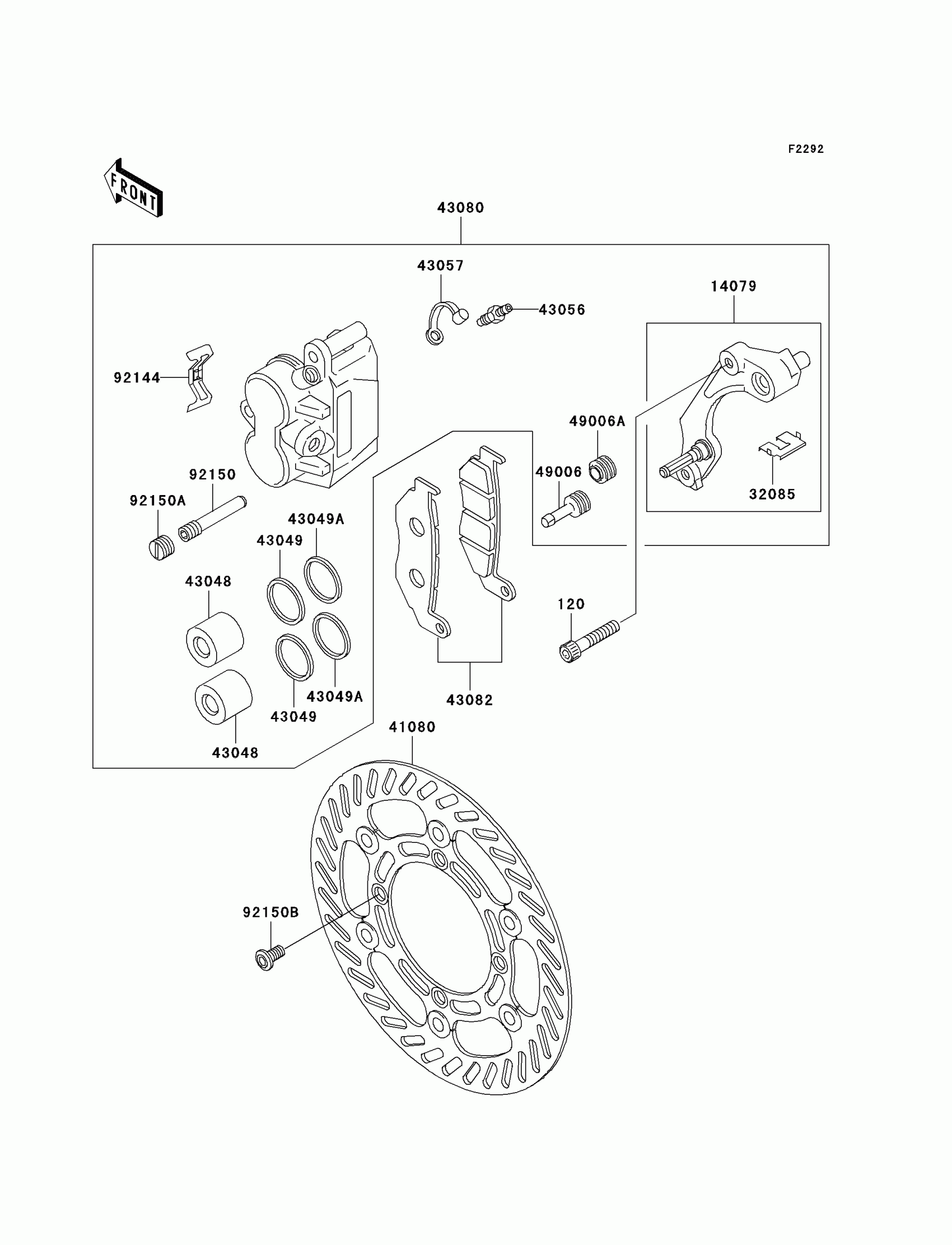

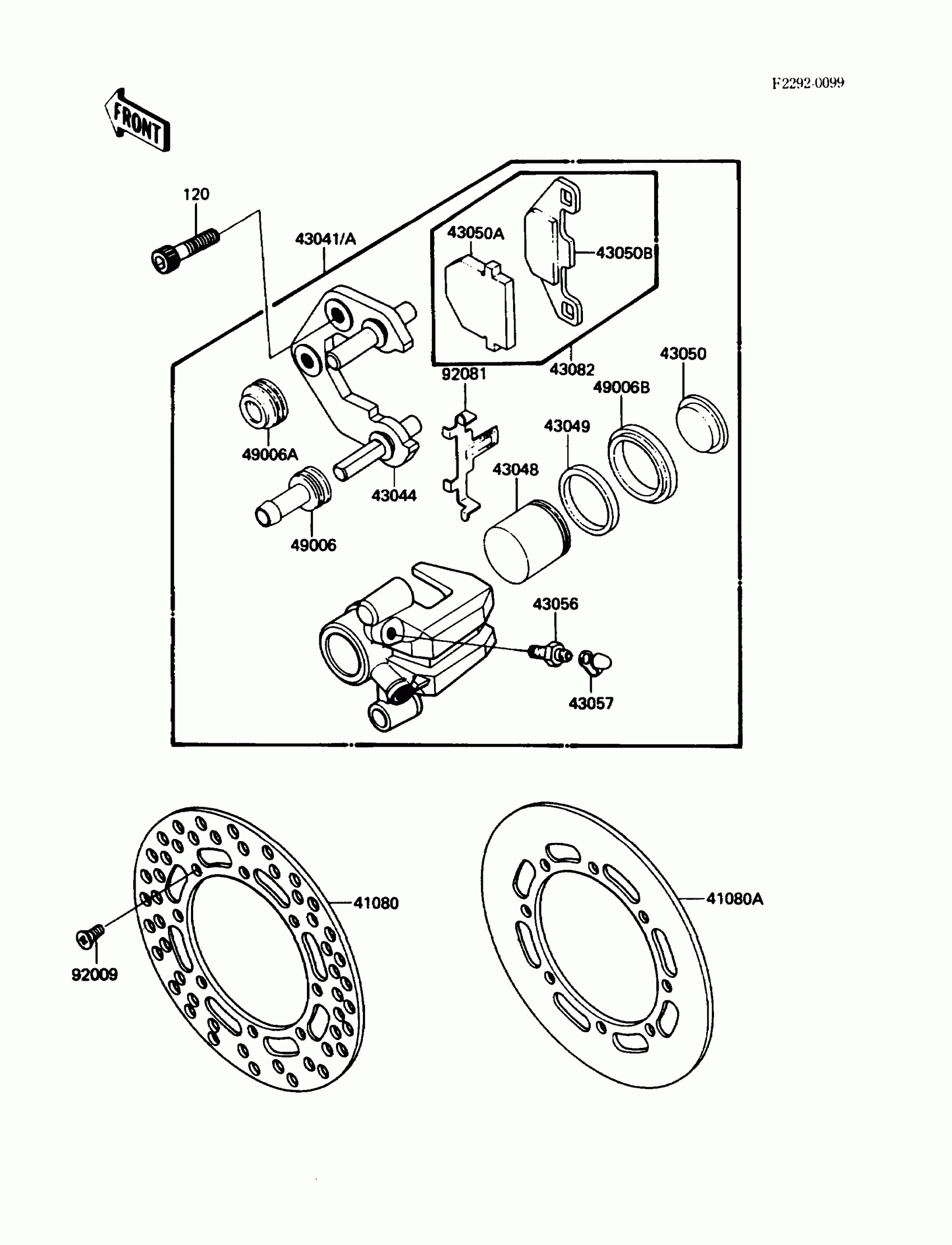

Find the part on the Front Brake diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KDX200 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR

41080-1147

1

$316.07

In stock

41080A

DISC,FR

41080-1188

1

$342.30

In stock

43041A

CALIPER-ASSY

43041-1242

1

$275.19

In stock

43044

HOLDER-COMP-CALIPER

43044-1034

1

$143.35

In stock

43048

PISTON-CALIPER

43048-1010

1

$100.47

In stock

43049

PACKING

43049-1027

1

$10.38

In stock

43050

PAD-BRAKE

43050-1051

1
Out of stock

43056

BREATHER

43056-003

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

43082

PAD-ASSY-BRAKE

43082-1084

1

$62.66

In stock

49006

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006A

BOOT,CALIPER

49006-1055

1

$5.78

In stock

49006B

BOOT,CALIPER

49006-1093

1

$13.67

In stock

92009

SCREW,6X10

92009-1375

1
Out of stock

92081

SPRING,PAD

92081-1341

1

$12.00

In stock

120

BOLT-SOCKET,8X20

120P0820

1
Out of stock
