1988 Kawasaki KDX200 Engine Cover Diagram

← All diagrams

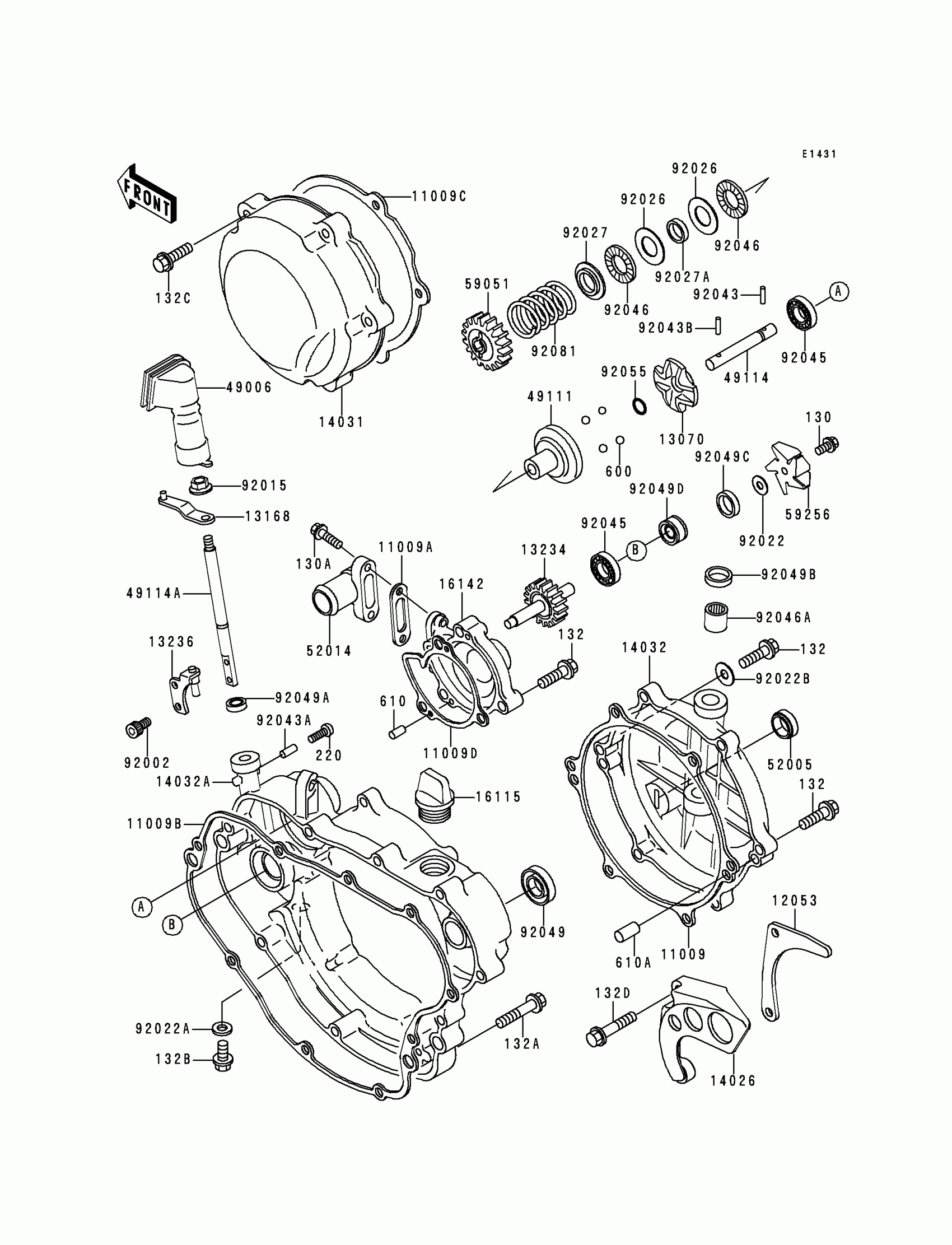

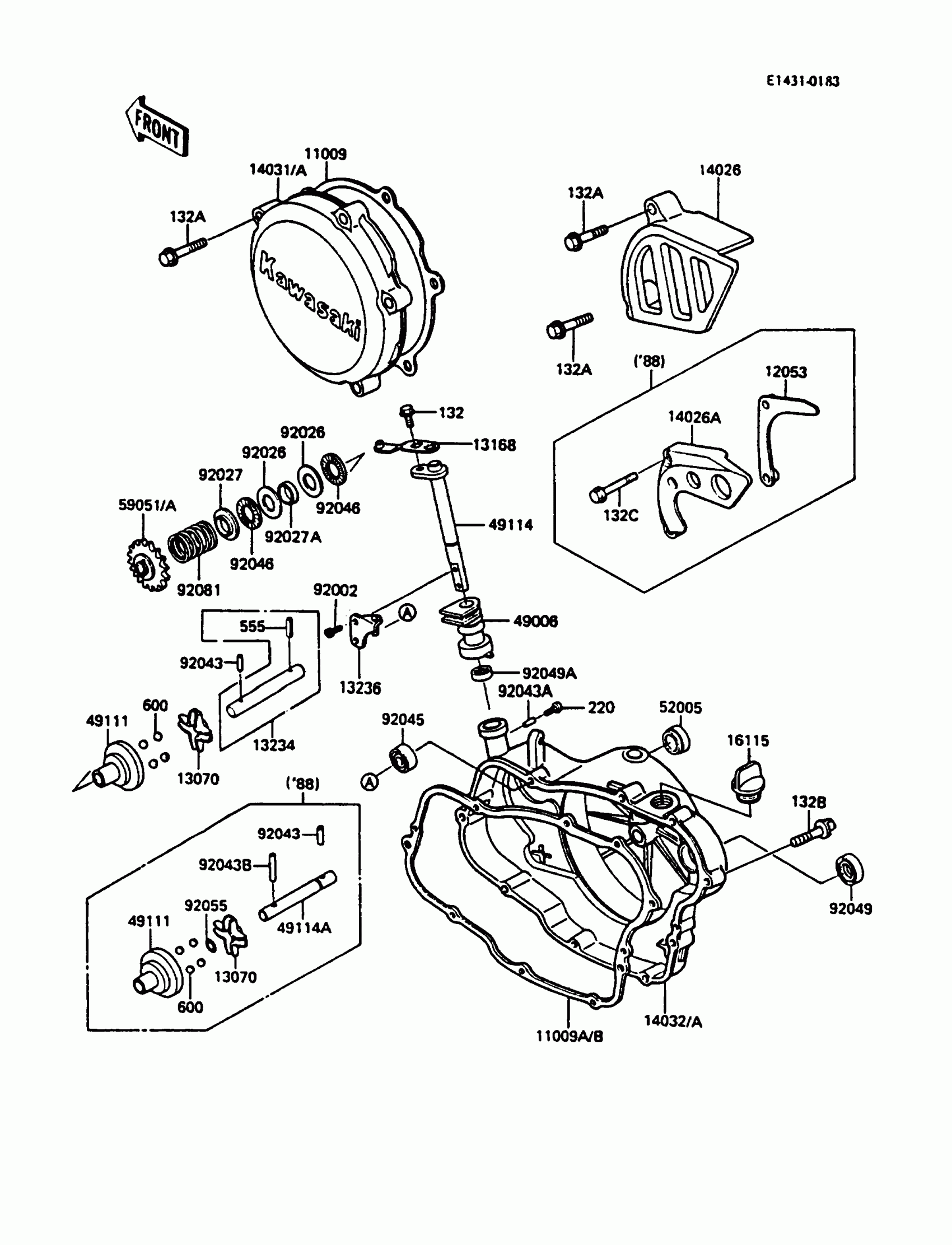

Find the part on the Engine Cover diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Kawasaki KDX200 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,GENERATOR COVER

11009-1266

1
Out of stock

11009B

GASKET,CLUTCH COVER

11009-1740

1
Out of stock

12053

GUIDE-CHAIN

12053-1228

1
Out of stock

13070

GUIDE

13070-1122

1

$80.59

In stock

13168

LEVER

13168-1283

1
Out of stock

13236

LEVER-COMP,GOVERNOR

13236-1139

1
Out of stock

14026A

COVER-CHAIN

14026-1136

1
Out of stock

14031A

COVER-GENERATOR

14031-1213

1
Out of stock

14032A

COVER-CLUTCH

14032-1240

1
Out of stock

16115

CAP-OIL FILLER

16115-018

1

$8.38

In stock

49006

BOOT

49006-1180

1
Out of stock

49111

1

$68.68

In stock

49114

SHAFT-GOVERNOR

49114-1055

1
Out of stock

49114A

SHAFT-GOVERNOR

49114-1058

1

$33.01

In stock

52005

GAUGE,OIL LEVEL

52005-1055

1

$11.67

In stock

59051A

GEAR-SPUR,GOVERNOR,18T

59051-1189

1
Out of stock

92002

BOLT,SOCKET,4X8

92002-1403

1

$2.66

In stock

92026

SPACER,15X28X1

92026-1238

1

$6.73

In stock

92027

COLLAR

92027-1838

1

$29.83

In stock

92027A

COLLAR,15.2X17X4

92027-1839

1

$11.73

In stock

92043

PIN,3X12.8

92043-1256

1

$4.00

In stock

92043A

PIN,2X9.8

92043-1293

1

$5.16

In stock

92043B

PIN,3X19.8

92043-1319

1

$3.68

In stock

92045

BEARING-BALL,#608

92045-1048

1

$9.80

In stock

92046

1

$11.45

In stock

92049

SEAL-OIL,SB18307

92049-013

1
Out of stock

92049A

SEAL-OIL,SDO8144

92049-1207

1
Out of stock

92055

RING-O,5.5X1.5

92055-1343

1

$0.69

In stock

92081

SPRING,GOVERNOR

92081-1769

1

$5.32

In stock

132

BOLT-FLANGED-SMALL,6X8

132G0608

1
Out of stock

132A

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X30

132G0630

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X40

132G0640

1
Out of stock

220

SCREW-PAN-CROS,3X6

220B0306

1
Out of stock

600

BALL-STEEL,5/16

600A1000

1

$0.76

In stock
