1988 Kawasaki KDX200 Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 1988 Kawasaki KDX200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

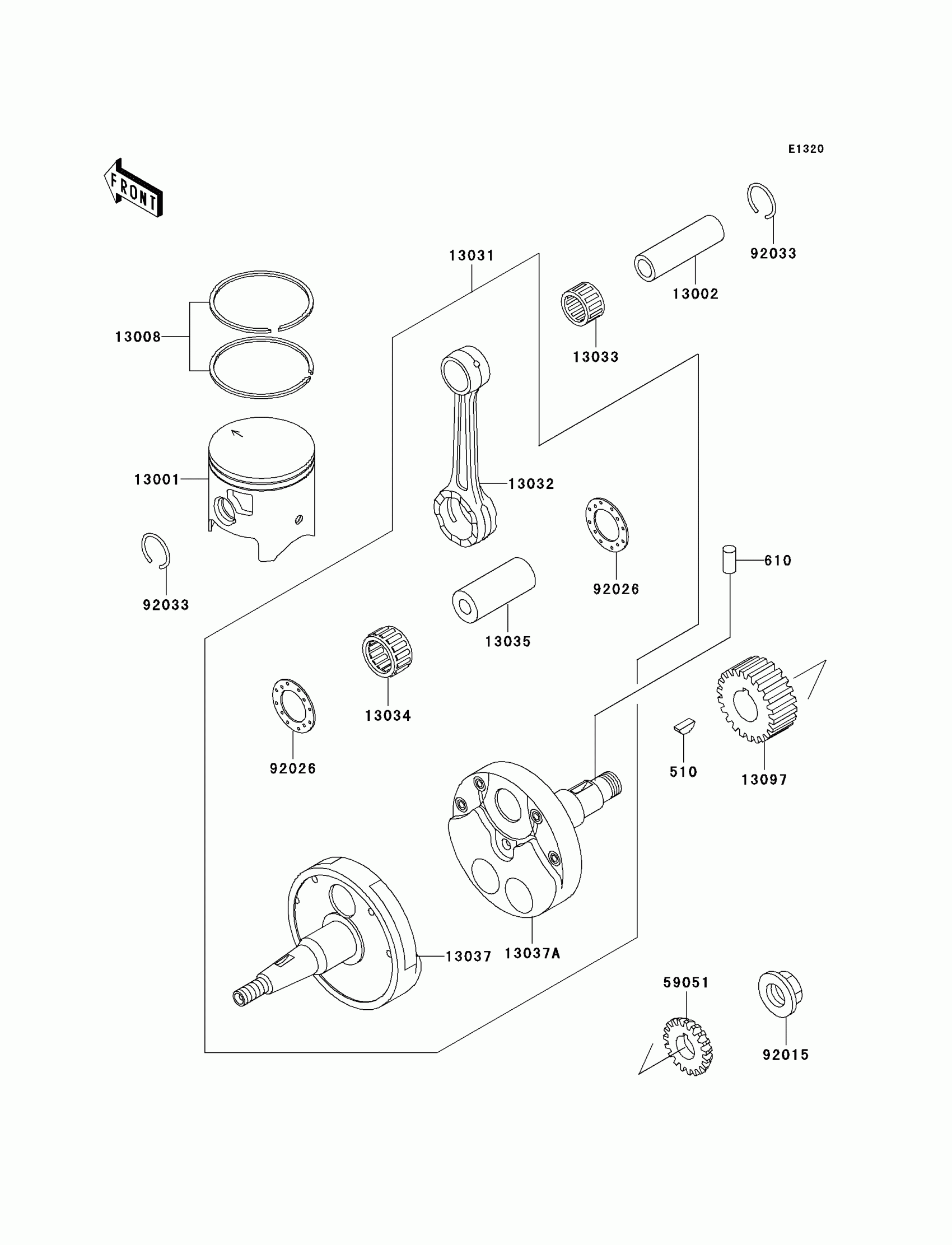

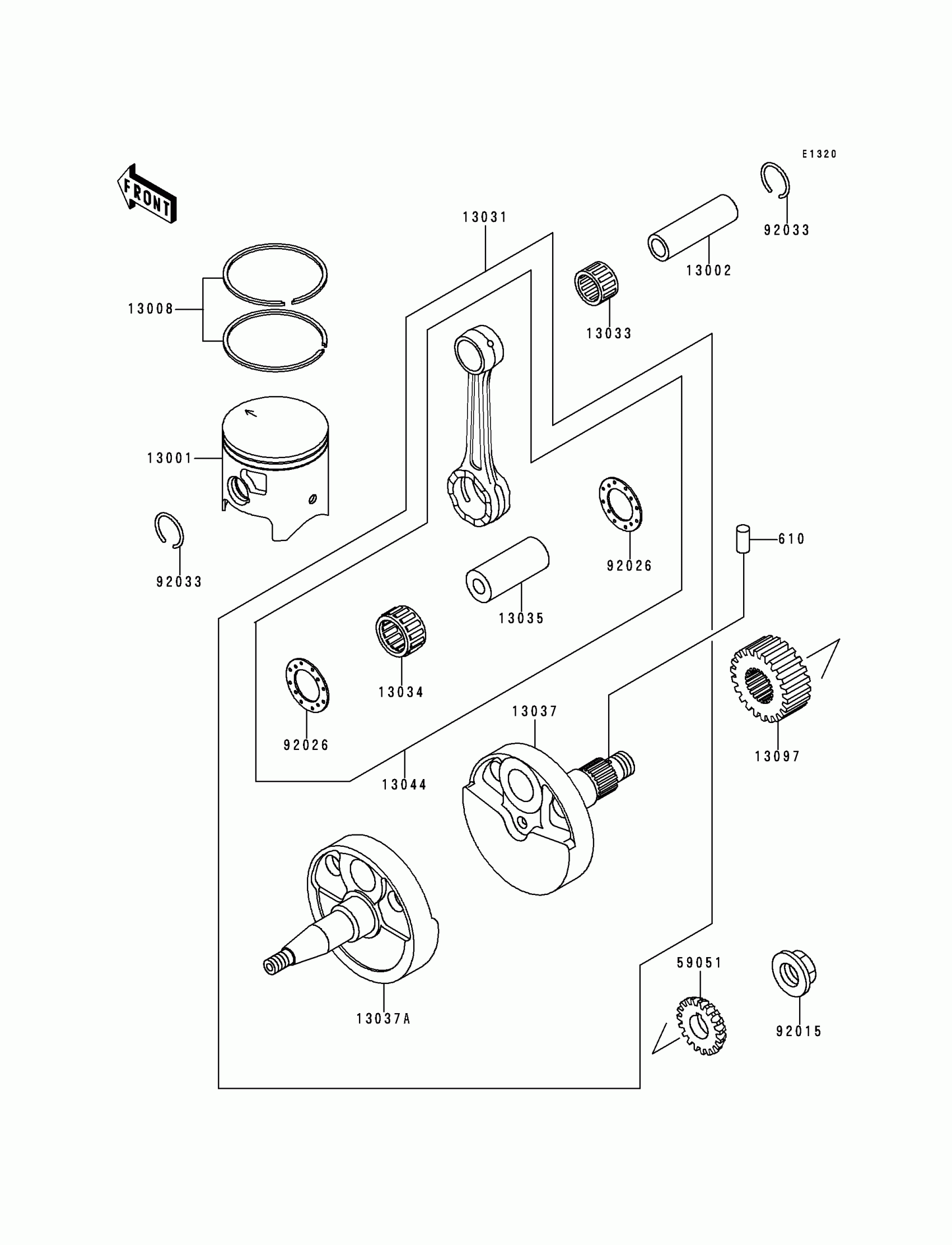

1988 Kawasaki KDX200 Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13001A

PISTON-ENGINE

13001-1256

1
Out of stock

13002

PIN-PISTON

13002-1053

1
Out of stock

13008

RING-SET-PISTON

13008-1093

1
Out of stock

13031B

CRANKSHAFT-COMP

13031-1253

1
Out of stock

13033

BEARING-SMALL END,KBK16X21

13033-1007

1
Out of stock

13034

BEARING-BIG END,H22X29X16.8

13034-1071

1
Out of stock

13035A

PIN-CRANK

13035-1010

1
Out of stock

13037B

CRANKSHAFT,LH

13037-1315

1
Out of stock

13037C

CRANKSHAFT,RH

13037-1316

1
Out of stock

13044A

SET-CONNECTING ROD

13044-5062

1
Out of stock

13097

GEAR-PRIMARY SPUR,22T

13097-1157

1
Out of stock

92015

NUT,16MM

92015-1176

1
Out of stock

92022

WASHER,16.3X29X1.75

92022-1356

1
Out of stock

92026

SPACER,22.5X37X1.0

92026-011

1
Out of stock

92033

RING-SNAP,PISTON PIN

92033-1161

1
Out of stock
