1982 Kawasaki KDX175 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 1982 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

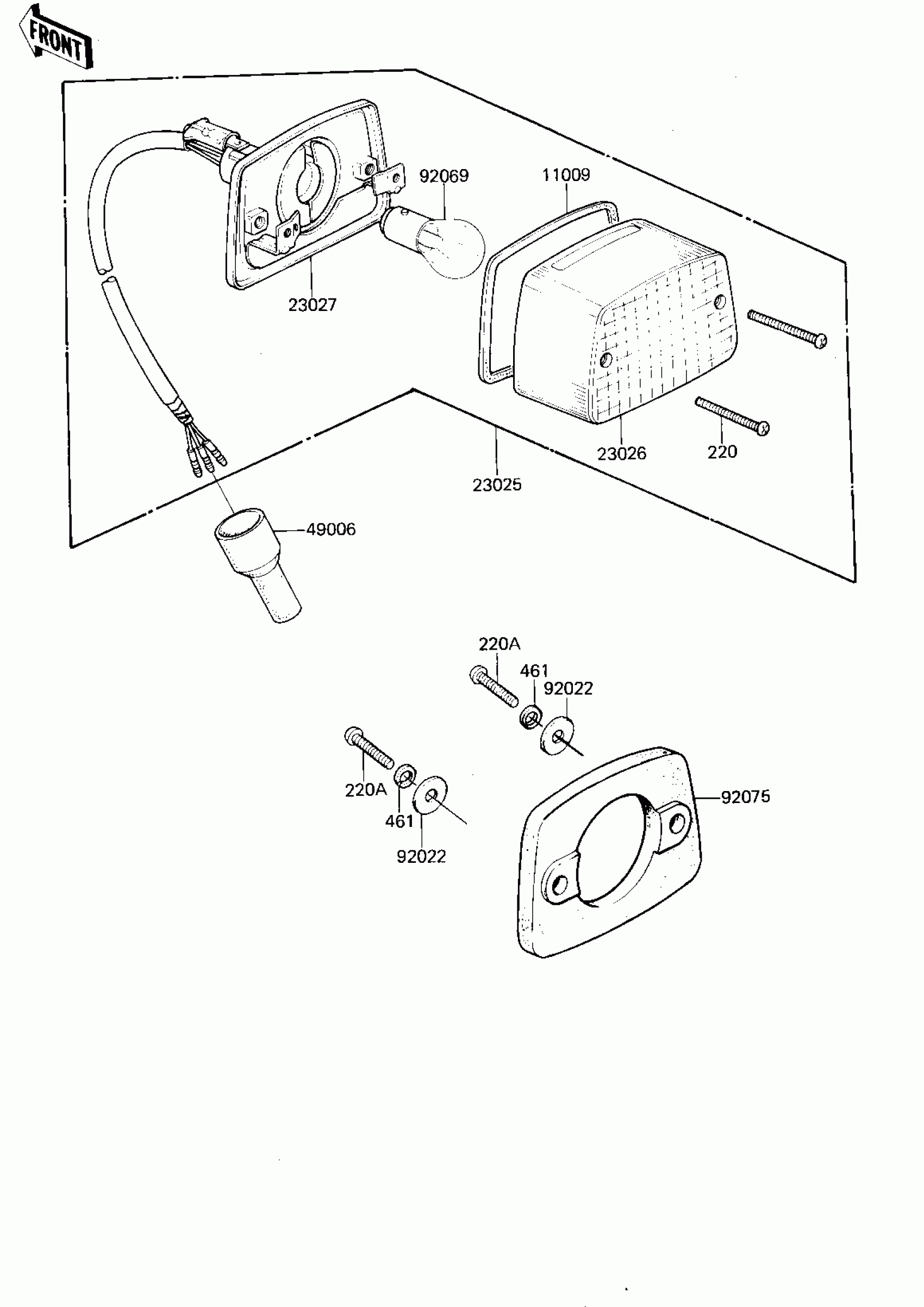

1982 Kawasaki KDX175 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LIGHT

23028-020

1
Out of stock

23025

LAMP,TAIL

23025-075

1
Out of stock

23026

LENS,TAIL LAMP

23026-040

1
Out of stock

23027

CASE,TAIL LAMP

23027-044

1
Out of stock

49006

BOOT,HARNESS COVER

49006-1048

1
Out of stock

92022

WASHER,5.2X16X1.2

92022-263

1
Out of stock

92069

BULB,6V 17/5.3W

92069-028

1
Out of stock

92075

DAMPER RUBBER

92075-4014

1
Out of stock

220

SCREW-PAN-CROS

220B0330

1
Out of stock

220A

SCREW-PAN-CROS

220B0520

1
Out of stock

461

WASHER SPRING 5MM

461F0500

1
Out of stock
