1982 Kawasaki KDX175 Ignition Diagram

← All diagrams

Find the part on the Ignition diagram for your 1982 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

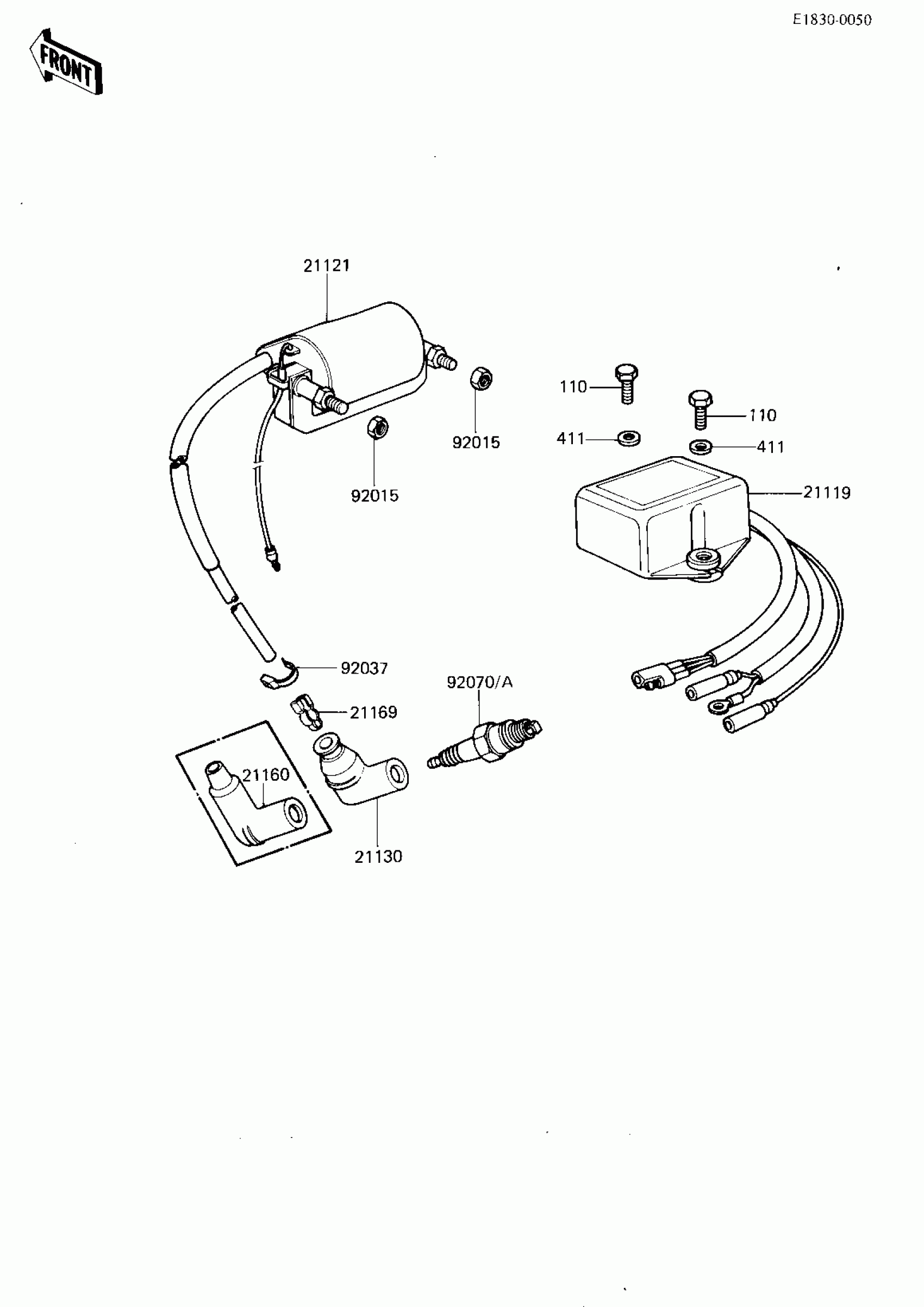

1982 Kawasaki KDX175 Ignition Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21119

IGNITER

21119-1031

1
Out of stock

21121

COIL,IGNITION

21121-1032

1
Out of stock

21130

CAP-SPARK PLUG

21130-1006

1
Out of stock

21160

CAP-ASSY-PLUG

21160-1009

1
Out of stock

21169

TERMINAL,PLUG CAP

21169-001

1
Out of stock

92015

NUT,LOCK,6MM

92019-008

1
Out of stock

92037

CLAMP

92037-1173

1
Out of stock

92070

SPARK PLUG B9ES

B9ES

1
Out of stock

92070A

SPARK PLUG BR9EV

92070-3002

1
Out of stock

110

BOLT-UPSET,6X16

112G0616

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock
