1982 Kawasaki KDX175 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1982 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

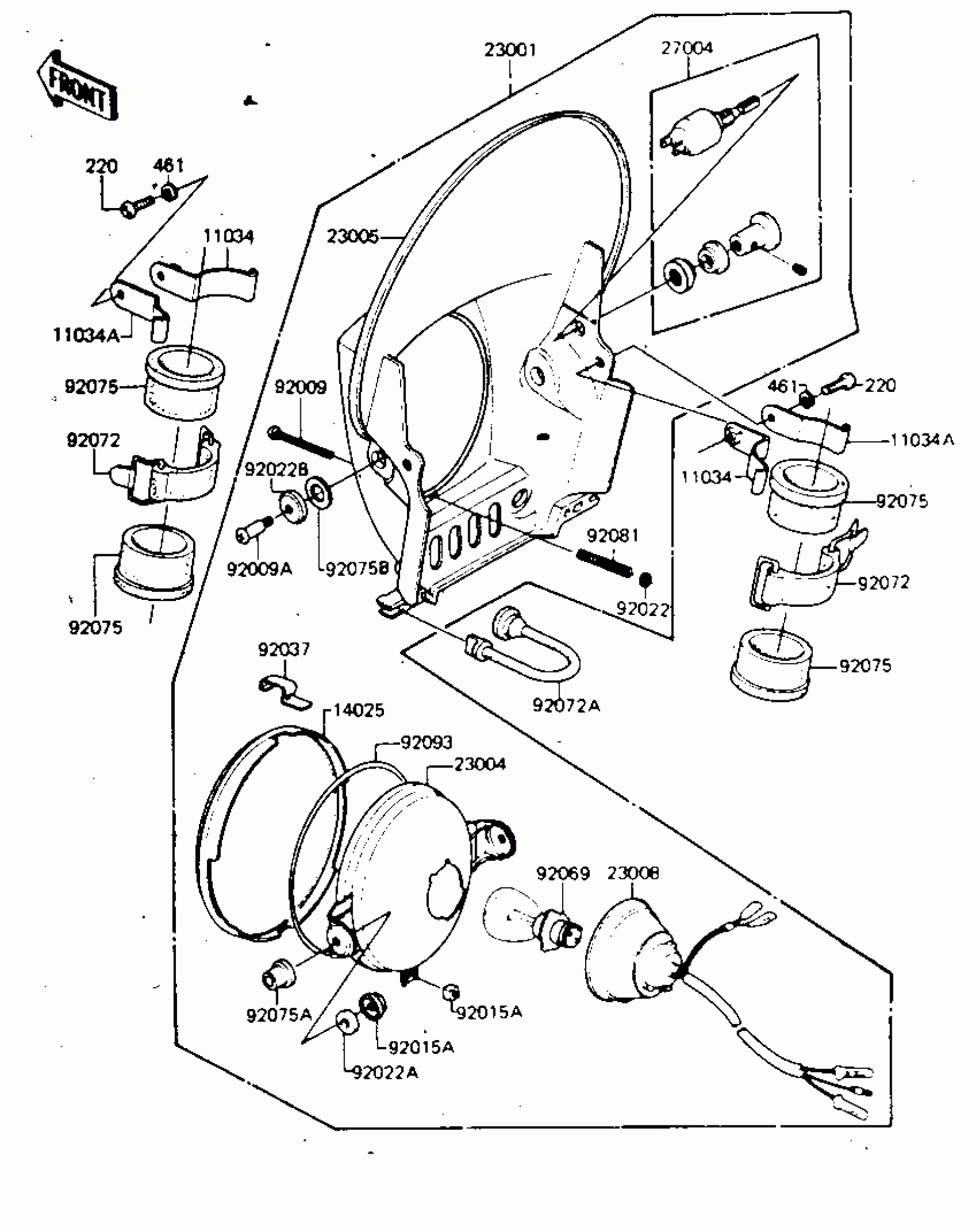

1982 Kawasaki KDX175 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11034

BRACKET,HEAD LMP PFI

11034-1688

1
Out of stock

11034A

BRACKET,HEAD LMP FIT

11034-1693

1
Out of stock

14025

COVER,HEAD LAMP

14025-4002

1
Out of stock

23001

HEAD LAMP ASSY

23001-4001

1
Out of stock

23004

LAMP,HEAD

23004-4001

1
Out of stock

23005

BODY-COMP-HEAD LAMP,

23005-5002-7F

1
Out of stock

23008

SOCKET,HEAD LAMP

23008-4001

1
Out of stock

27004

SWITCH,HEAD LAMP

27004-4001

1
Out of stock

92009

SCREW,ADJUSTING,4X43

92009-4002

1
Out of stock

92009A

SCREW,HEAD LAMP

92009-4003

1
Out of stock

92015

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

92015A

NUT,5MM

23020-023

1
Out of stock

92022

WASHER,4.1X8X0.8

23021-004

1
Out of stock

92022A

WASHER,PLAIN,5MM

23021-012

1
Out of stock

92022B

WASHER,HEAD LAMP

92022-4005

1
Out of stock

92037

CLAMP,HEAD LAMP

92037-4001

1
Out of stock

92069

BULB,6V 35/25W

92069-4001

1
Out of stock

92072

BAND,FUEL TANK

92072-076

1
Out of stock

92072A

BAND,HEAD LAMP

92072-077

1
Out of stock

92075

DAMPER,HEAD LMP FITT

92075-1236

1
Out of stock

92075A

DAMPER,HEAD LAMP

92075-4009

1
Out of stock

92075B

DAMPER,HEAD LAMP

92075-4010

1
Out of stock

92081

SPRING,FOCUS ADJUSTN

92081-4003

1
Out of stock

92093

SEAL,HEAD LAMP

92093-4001

1
Out of stock

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

461

WASHER SPRING 6MM

461F0600

1
Out of stock
