1982 Kawasaki KDX175 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1982 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

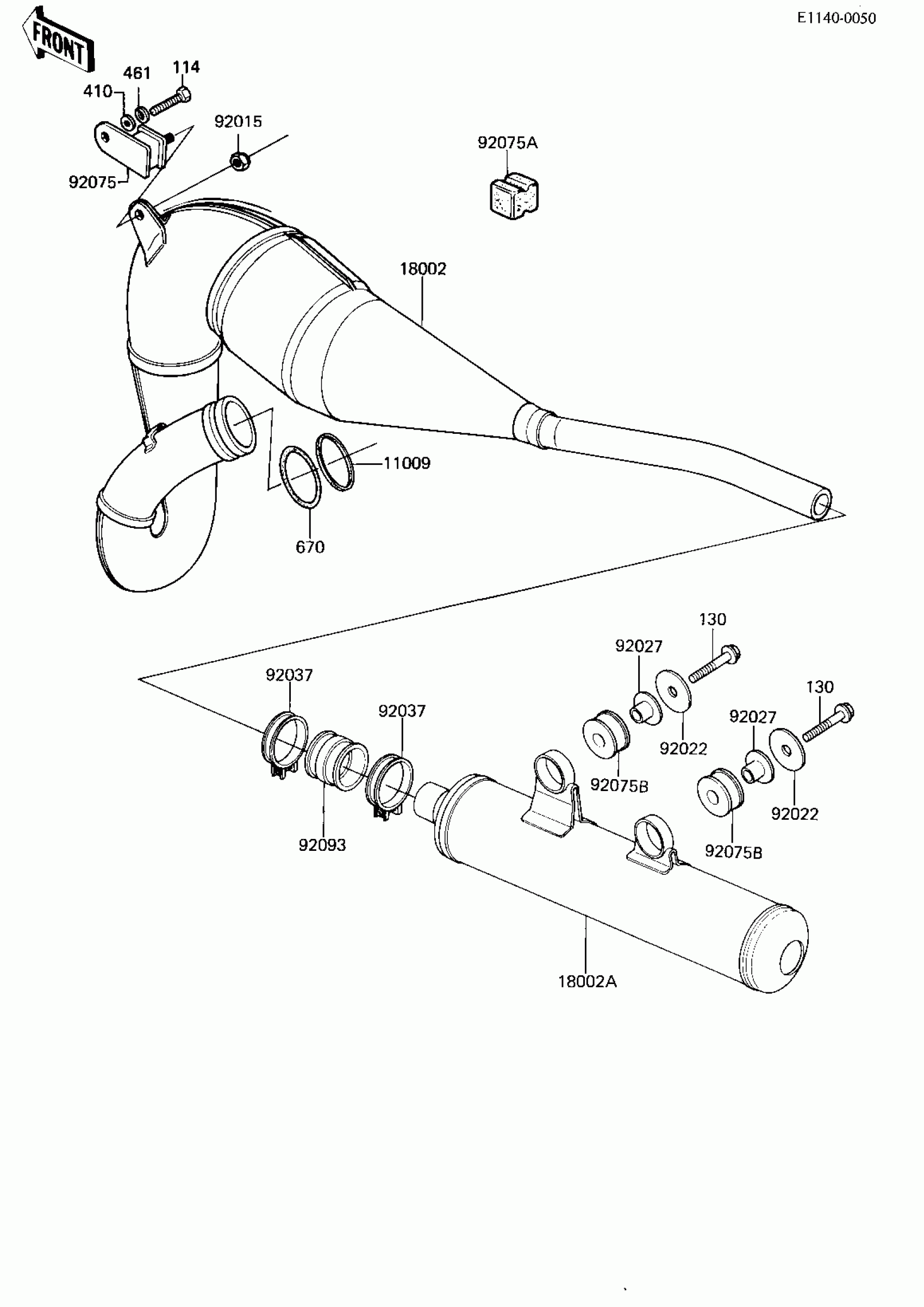

1982 Kawasaki KDX175 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST PIPE

11009-1123

1
Out of stock

18002

BODY-COMP-MUFFLER,F.

18002-1128

1
Out of stock

18002A

BODY-COMP-MUFFLER

18002-1188

1
Out of stock

92015

NUT,LOCK,8MM

92015-1124

1
Out of stock

92022

WASHER,8.5X35X2.3

92022-298

1
Out of stock

92027

COLLAR,FUEL TANK FITT

92027-1134

1
Out of stock

92037

CLAMP,CARBURETOR,40MM

92037-1129

1
Out of stock
