1982 Kawasaki KDX175 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1982 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

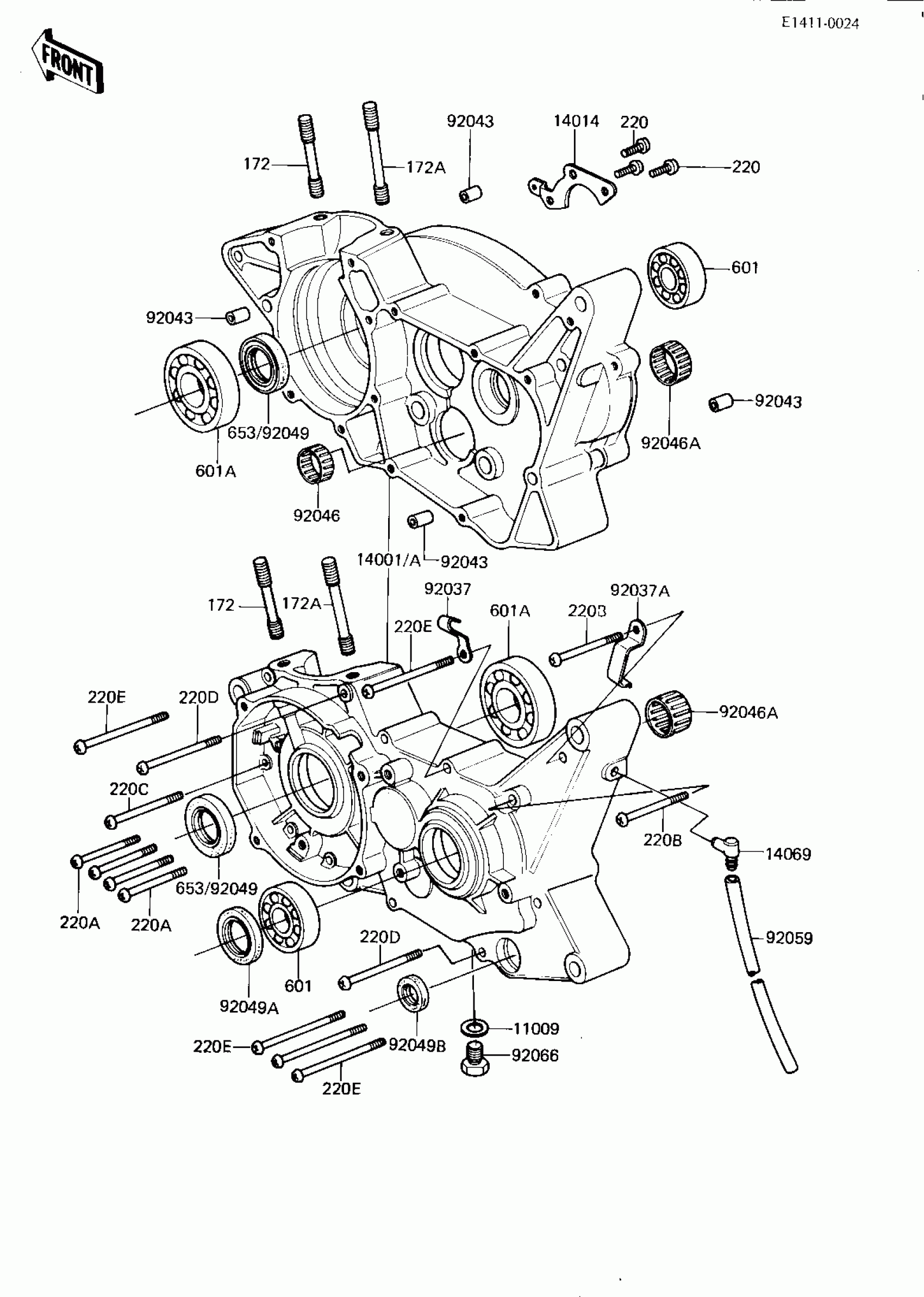

1982 Kawasaki KDX175 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10.5X16X1

92065-058

1
Out of stock

14001A

SET-CRANKCASE

14001-5074

1
Out of stock

14014

PLATE,POSITIONING

14014-1003

1
Out of stock

14069

BREATHER

14069-003

1

$8.16

In stock

92037

CLAMP CABLE

92037-016

1
Out of stock

92037A

CLAMP

92037-1073

1
Out of stock

92043

PIN,DOWEL,10X14

92043-1037

1
Out of stock

92046

BEARING,NEEDLE

92046-043

1
Out of stock

92046A

BEARING,NEEDLE

92046-1007

1
Out of stock

92049

SEAL-OIL,TBJ25407

92049-1068

1
Out of stock

92049A

SEAL-OIL,SC25376

92050-013

1
Out of stock

92049B

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92059

PIPE-BREATHER

92059-061

1
Out of stock

92066

PLUG,DRAIN,10X12

92067-001

1
Out of stock

172

STUD,8X25

92004-1008

1
Out of stock

172A

STUD 8X60

172G0860

1
Out of stock

220

SCREW-PAN-CROS,6X14

220B0614

1
Out of stock

220A

SCREW PAN HEAD 6X45

220B0645

1
Out of stock

220B

SCREW PAN HEAD 6X50

220B0650

1
Out of stock

220C

SCREW PAN HEAD 6X55

220B0655

1
Out of stock

220D

SCREW-PAN-CROS,6X60

220B0660

1
Out of stock

220E

SCREW PAN HEAD 6X70

220B0670

1
Out of stock

601

BEARING-BALL,#6204C3

601B6204

1
Out of stock

601A

BEARING-BALL,#6305C3

601B6305

1
Out of stock
Crankshaft/piston →
