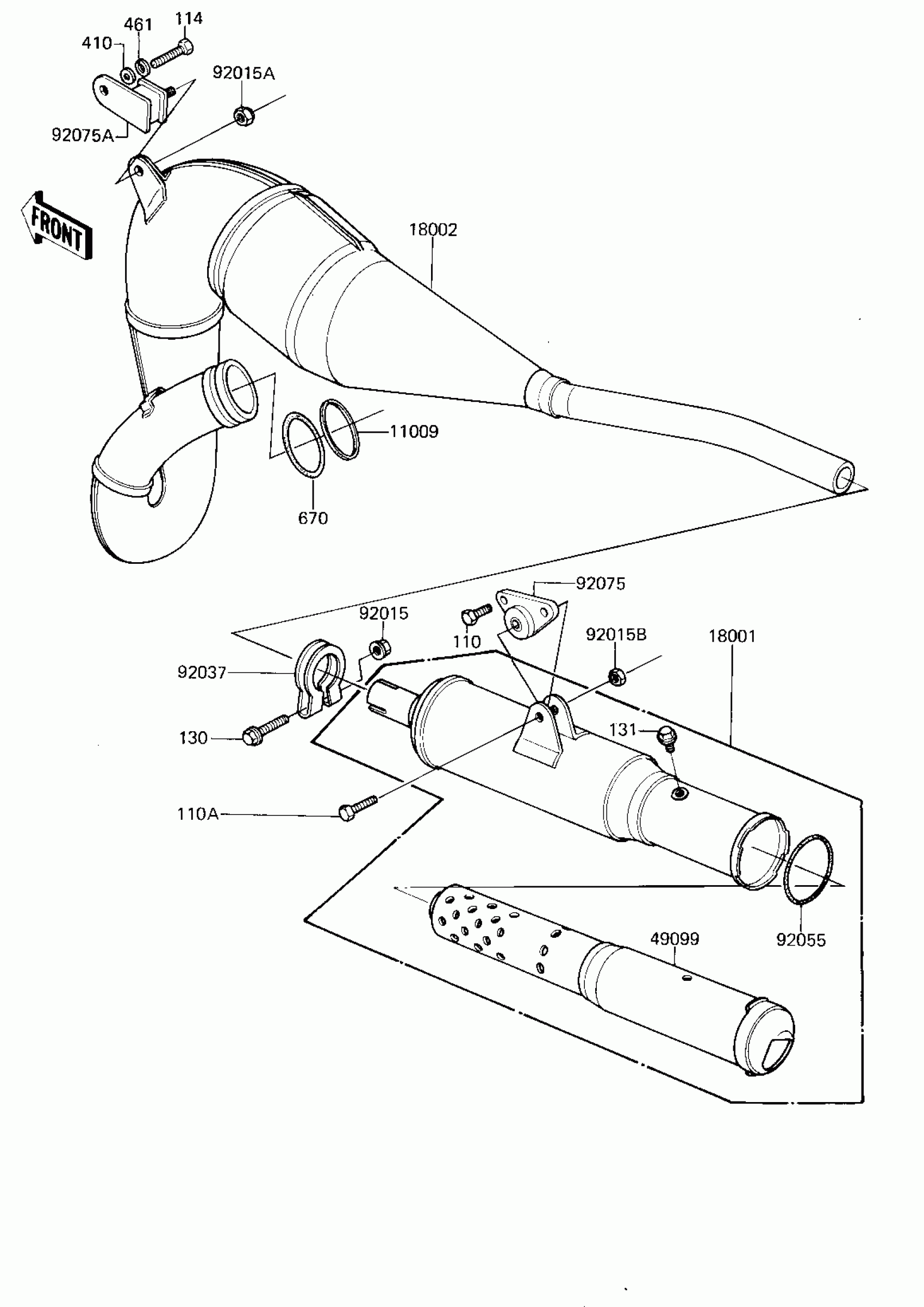

Kawasaki KDX175 MUFFLER (KDX175-A2) Diagram

Description

Price

11009

GASKET,EXHAUST PIPE

11009-1123

Unavailable

18001

MUFFLER ASSY

18001-1106

Unavailable

18002

BODY-COMP-MUFFLER,F.

18002-1128

$451.52

49099

BUFFLE PIPE,MUFFLER

49099-1025

$116.90

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,LOCK,8MM

92015-1124

$4.10

92015B

NUT,LOCK,6MM

92019-008

$3.12

92037

CLAMP,MUFFLER

92037-1169

Unavailable

92055

"0" RING,50.8MM,MUFL

92055-1077

Unavailable

92075

DAMPER RUBBER

92075-1046

Unavailable

92075A

DAMPER,MUFFLER FITING

92075-1060

Unavailable

110

BOLT-UPSET

112G0618

Unavailable

110A

BOLT-UPSET

112G0625

Unavailable

114

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

130

BOLT,FLANGED,6X35

130H0635

Unavailable

131

BOLT-FLANGED,6X8

130B0608

Unavailable

410

WASHER PLAIN 8MM

410B0800

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

670

O RING,45MM

670E3045

$14.10
