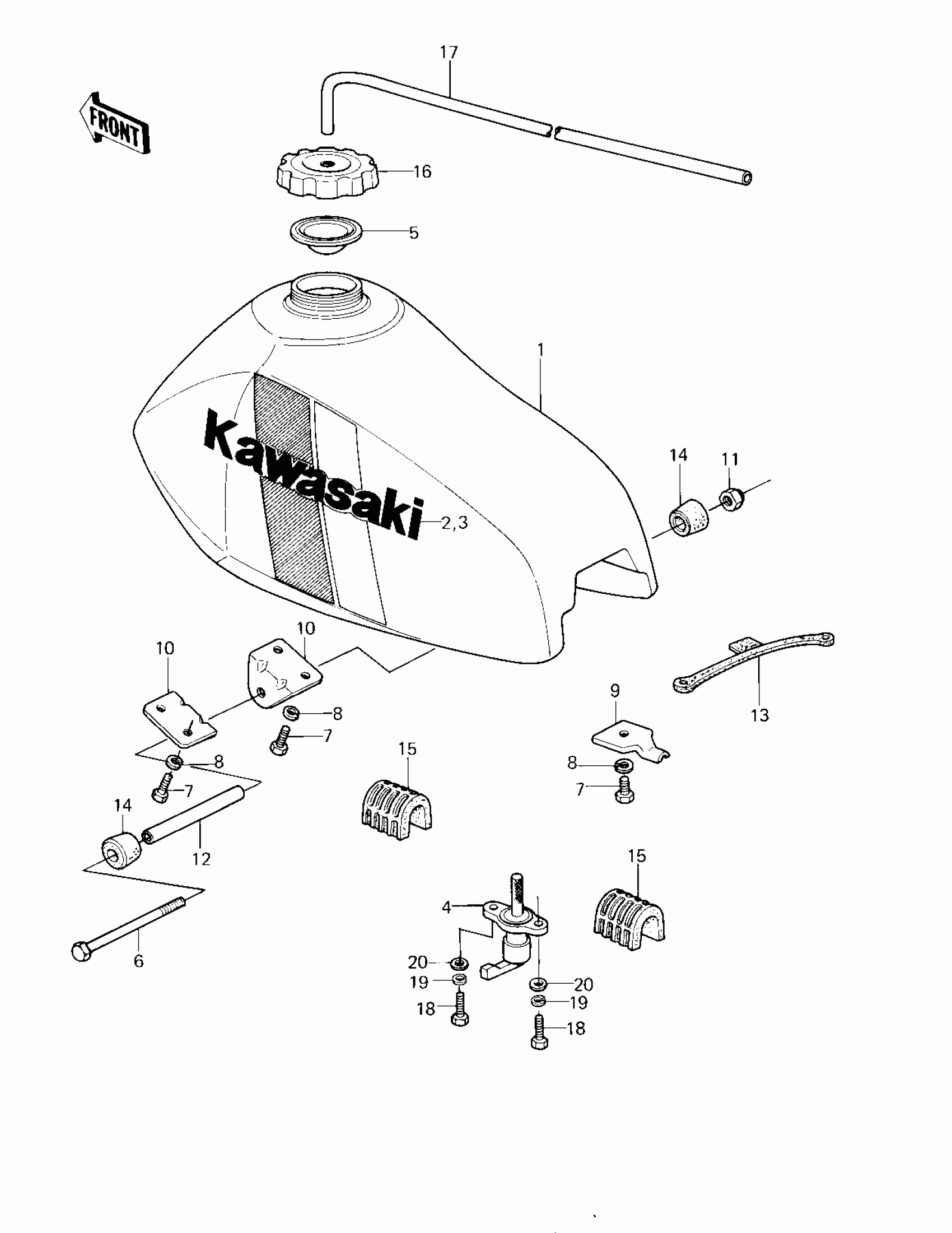

Kawasaki KDX175 FUEL TANK ('80 A1) Diagram

#

Description
Price

1

TANK-FUEL,L.GREEN

51001-5107-6W

$512.47

2

EMBLEM,FUEL TANK,L.H

56027-1855

Unavailable

3

EMBLEM,FUEL TANK,R.H

56027-1856

Unavailable

4

TAP-ASSY,FUEL

51023-1115

Unavailable

5

GASKET,FUEL TANK CAP

11009-4001

Unavailable

6

BOLT-UPSET,6X105

112G06105

Unavailable

7

BOLT-UPSET,6X12

112G0612

Unavailable

8

WASHER SPRING 6MM

461F0600

Unavailable

9

BRACKET,FUEL TANK

32052-1009

$6.42

10

BRACKET,FUEL TANK FIT

32052-1036

$7.51

11

NUT,LOCK,6MM

92019-008

$3.12

12

COLLAR,FUEL TANK FIT

92027-1228

Unavailable

13

BAND,FUEL TANK

92072-042

$11.53

14

DAMPER,FUEL TANK FITT

92075-1220

Unavailable

15

DAMPER,FUEL TANK

92075-1221

Unavailable

16

CAP-TANK,FUEL

51049-1060

Unavailable

17

TUBE,5X7X500

92059-4001

Unavailable

18

BOLT-UPSET

112G0618

Unavailable

19

WASHER SPRING 6MM

461F0600

Unavailable

20

WASHER PLAIN 6MM

411B0600

Unavailable
