1980 Kawasaki KDX175 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

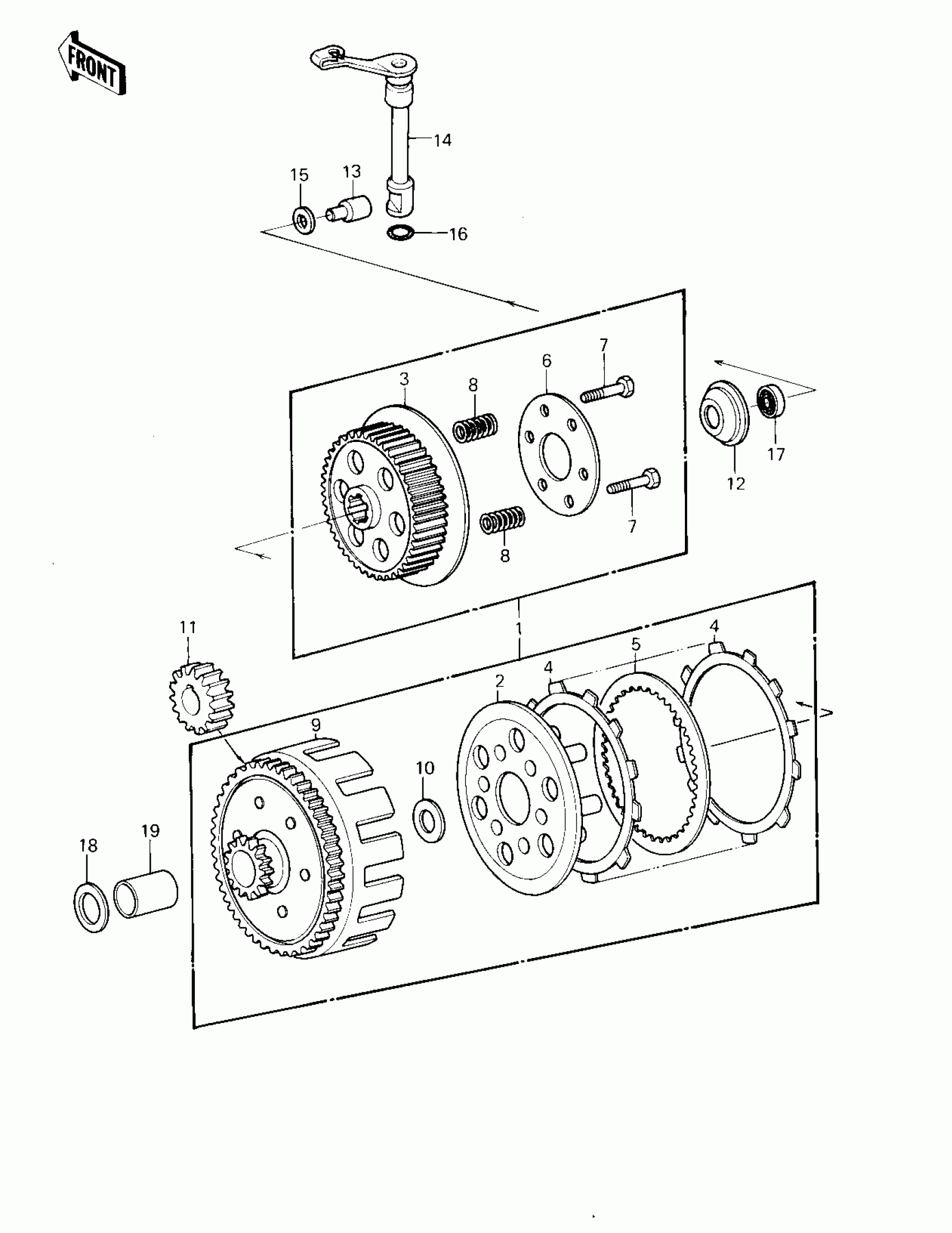

1980 Kawasaki KDX175 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLUTCH-ASSY

13081-1040

1
Out of stock

2

WHEEL,CLUTCH

13086-1001

1
Out of stock

3

HUB,CLUTCH

13087-1014

1
Out of stock

4

PLATE-FRICTION

13088-1015

1

$19.58

In stock

5

PLATE CLUTCH STEEL

13089-003

1

$11.25

In stock

6

HOLDER,CLUTCH

13091-015

1
Out of stock

7

BOLT,5X18

92003-078

1
Out of stock

8

SPRING,CLUTCH

92081-123

1
Out of stock

9

HOUSING,CLUTCH

13095-1027

1
Out of stock

10

WASHER,20.5X30X1.4

92022-223

1
Out of stock

11

GEAR,PRIMARY,23T

13097-1033

1
Out of stock

12

HOLDER,CLUTCH PUSHER

13091-1071

1
Out of stock

13

PUSHER,CLUTCH

13114-1004

1
Out of stock

14

LEVER ASSY,CLUTCH RL

13236-1022

1
Out of stock

15

WASHER PLAIN 6MM

411B0600

1
Out of stock

16

O RING,10MM

670B2010

1

$1.31

In stock

17

BEARING-BALL

92045-1211

1

$9.41

In stock

18

WASHER,20.5X30X1.4

92022-223

1
Out of stock

19

BUSHING,CLUTCH

92028-1081

1
Out of stock
