1980 Kawasaki KDX175 Transmission Diagram

← All diagrams

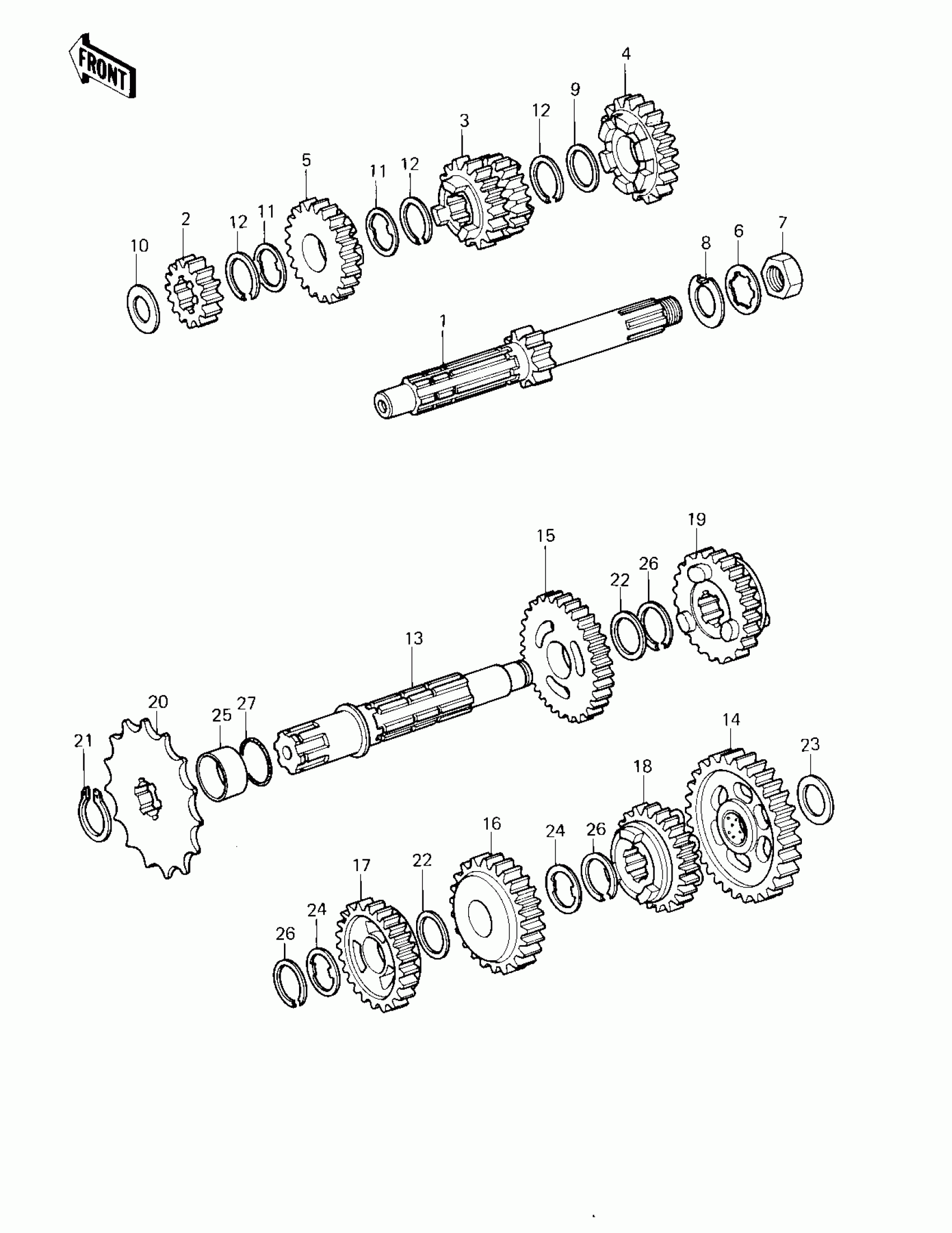

Find the part on the Transmission diagram for your 1980 Kawasaki KDX175, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Kawasaki KDX175 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT,DRIVE

13127-1026

1
Out of stock

2

2ND GEAR,DRIVE SHAFT

13129-1181

1
Out of stock

3

3RD&4TH GEAR,DRIVE S

13129-1182

1
Out of stock

4

5TH GEAR,DRIVE SHAFT

13129-1183

1
Out of stock

5

TOP GEAR,DRIVE SHAFT

13129-1184

1
Out of stock

6

WASHER,TOOTHED,16M/M

463H1600

1
Out of stock

7

NUT 16MM

92016-036

1

$3.37

In stock

8

WASHER,16.8X32X1.6

92022-1277

1
Out of stock

9

WASHER,22.3X27X0.5

92022-198

1
Out of stock

10

WASHER,PLAIN

92022-268

1
Out of stock

11

WASHER,TOOTHED,22.5X27X0.5

92024-039

1
Out of stock

12

1

$3.94

In stock

13

SHAFT,OUTPUT

13128-1026

1
Out of stock

14

LOW GEAR,OUTPUT SHAF

13129-1185

1
Out of stock

15

2ND GEAR,OUTPUT SHAF

13129-1186

1
Out of stock

16

3RD GEAR,OUTPUT SHAF

13129-1187

1
Out of stock

17

GEAR-TRANSMISSION SP

13129-1324

1
Out of stock

18

5TH GEAR,OUTPUT SHAF

13129-1189

1
Out of stock

19

TOP GEAR,OUTPUT SHAF

13129-1190

1
Out of stock

20

SPROCKET-OUTPUT,12T

13144-1049

1
Out of stock

20

SPROCKET-OUTPUT,13T

13144-1050

—
Out of stock

20

SPROCKET-OUTPUT,11T

13144-1036

—
Out of stock

21

1

$2.12

In stock

22

WASHER,22.3X27X0.5

92022-198

1
Out of stock

23

WASHER,PLAIN

92022-268

1
Out of stock

24

WASHER,TOOTHED,22.5X27X0.5

92024-039

1
Out of stock

25

COLLAR,ENGINE SPROCK

92027-1244

1
Out of stock

26

1

$3.94

In stock

27

RING-O,17.5X1.5

92055-022

1

$4.93

In stock
