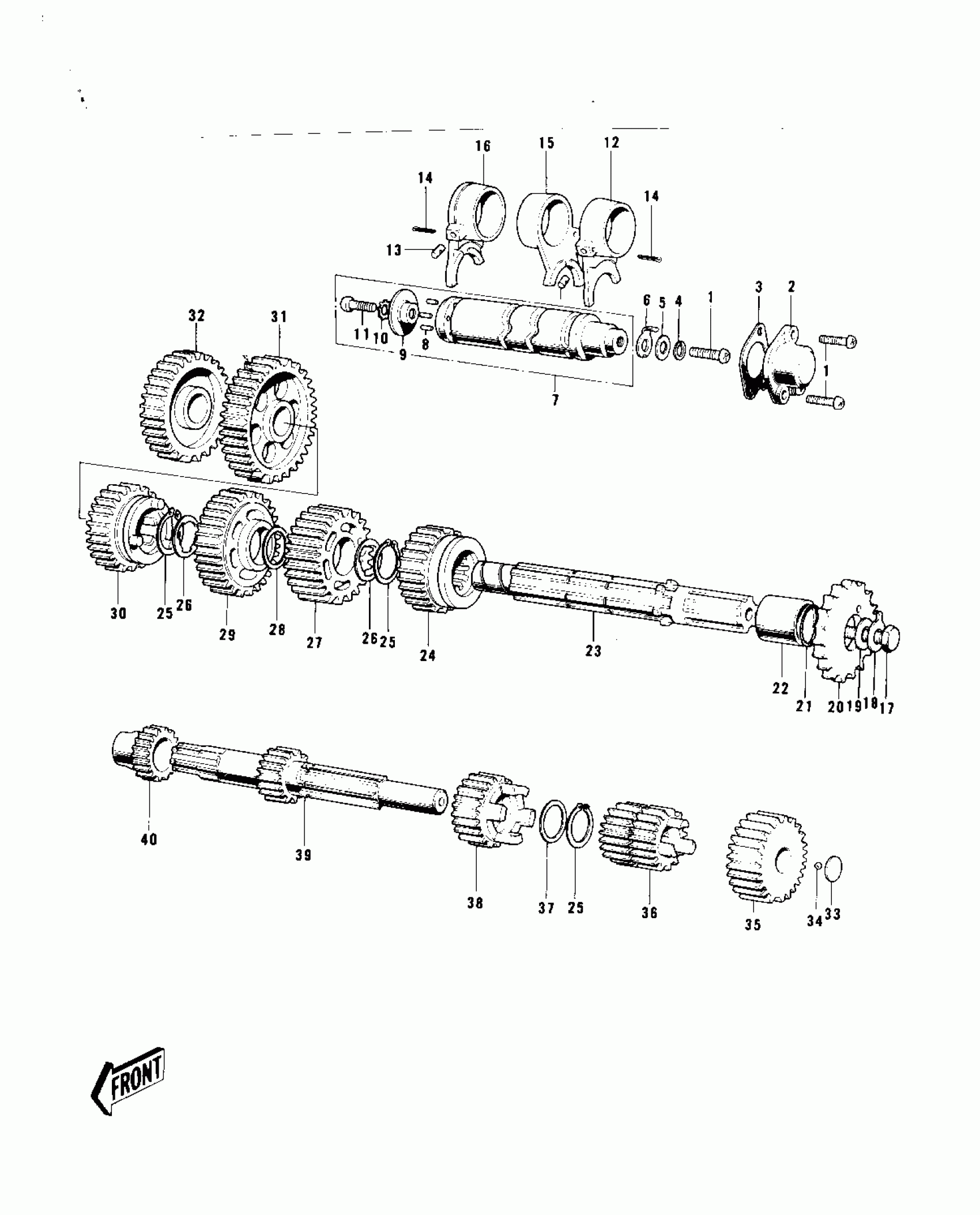

Kawasaki KD80 TRANSMISSION/CHANGE DRUM Diagram
#
Description
Price
1
SCREW-PAN-CROS,6X16
220B0616
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
7
DRUM ASSY-GEAR CHANGE
13239-005
Unavailable
9
PLATE CHANGE DRUM PIN
13142-008
Unavailable
10
WASHER LOCK 6MM
464H0600
Unavailable
12
FORK SELECTOR 3RD
13140-009
Unavailable
13
PIN SELECT FORK GUIDE
92043-005
Unavailable
15
FORK SELECTOR 4TH-TOP
13140-017
Unavailable
16
FORK SELECTOR LOW-2ND
13140-010
Unavailable
17
BOLT-SMALL-UPSET,8X16
115G0816
Unavailable
20
ENGINE SPROCKET,13T
13144-053
Unavailable
20
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
20
SPROCKET-OUTPUT,14T
13144-1058
Unavailable
20
ENGINE SPROCKET,13T
13144-053
Unavailable
23
SHAFT-TRANSMISSION OUTPUT
13128-021
Unavailable
24
TOP GEAR OUTPUT SHAFT
13137-012
Unavailable
25
RING-SNAP,16MM
92033-014
Unavailable
26
WASHER,TOOTHED,18.5X23X1.2
92024-030
Unavailable
27
3RD GEAR OUTPUT SHAFT
13133-005
Unavailable
29
2ND GEAR OUTPUT SHAFT
13131-008
Unavailable
35
GEAR,INPUT TOP,24T
13129-1927
Unavailable
36
2ND&3RD GEAR,DRIVE
13129-1052
Unavailable
38
4TH GEAR,DRIVE
13129-1053
Unavailable
39
SHAFT,DRIVE
13127-032
Unavailable
