1990 Kawasaki KD80 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1990 Kawasaki KD80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

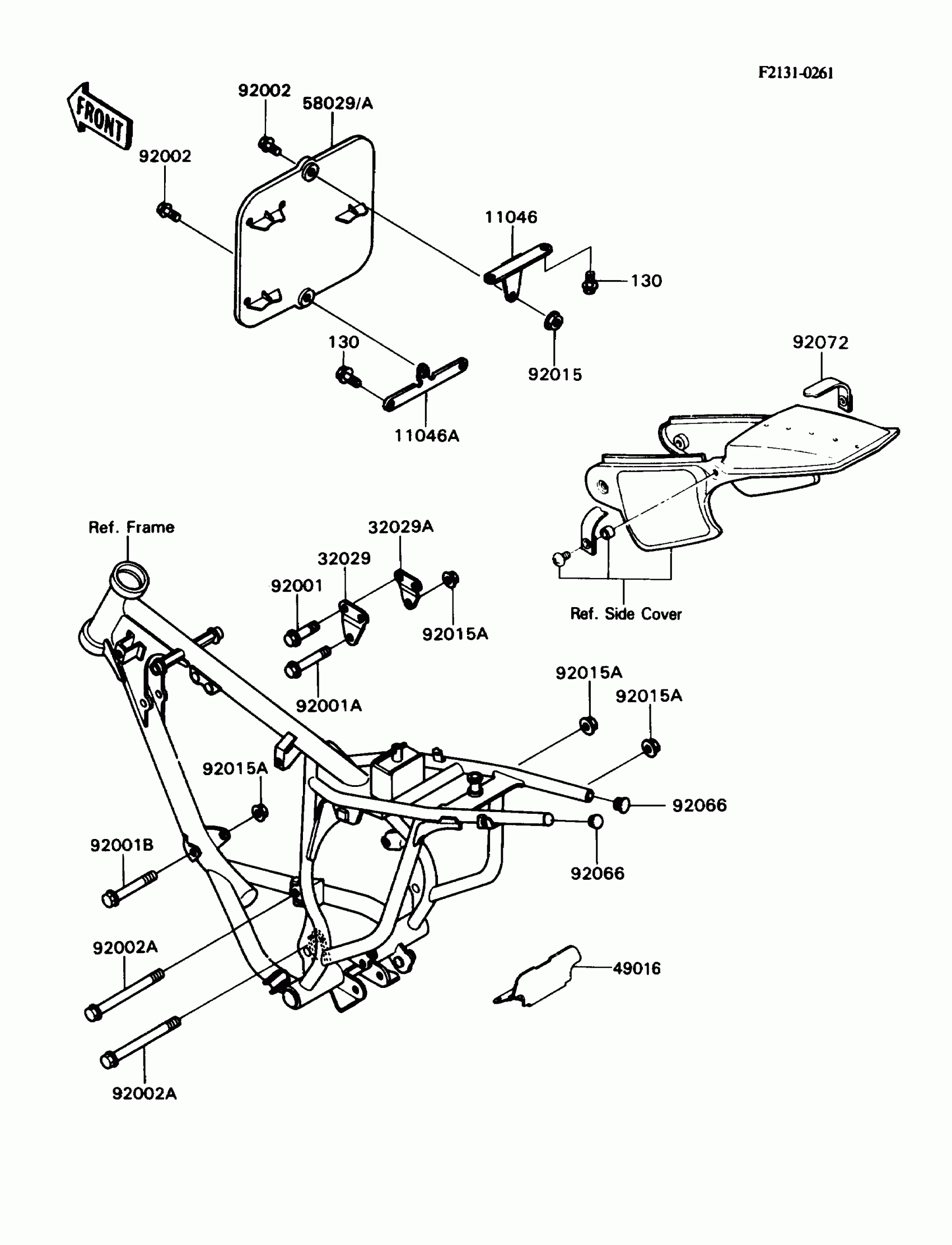

1990 Kawasaki KD80 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11046

BRACKET,NUMBER PLATE,UPP

11046-1163

1
Out of stock

11046A

BRACKET,NUMBER PLATE,LWR

11046-1164

1
Out of stock

32029

1

$8.73

In stock

32029A

1

$13.53

In stock

49016

1

$15.03

In stock

58029

PLATE-NUMBER,L.GREEN

58029-5019-6W

1
Out of stock

92001

BOLT,FLANGED,8X35

92001-1577

1
Out of stock

92001A

BOLT,FLANGED,8X60

92001-1581

1

$4.53

In stock

92001B

BOLT,FLANGED,8X70,BLACK

92001-1958

1
Out of stock

92002

BOLT,6X14

92002-1460

1

$4.02

In stock

92002A

BOLT,FLANGED,8X128

92002-1547

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92015A

NUT,FLANGED,8MM,BLACK

92015-1183

1
Out of stock

92066

PLUG

92066-1231

1

$4.48

In stock

92072

BAND

92072-1234

1

$9.41

In stock

130

BOLT-FLANGED

130J0610

1
Out of stock
