1979 Kawasaki KD125-A5 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1979 Kawasaki KD125-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

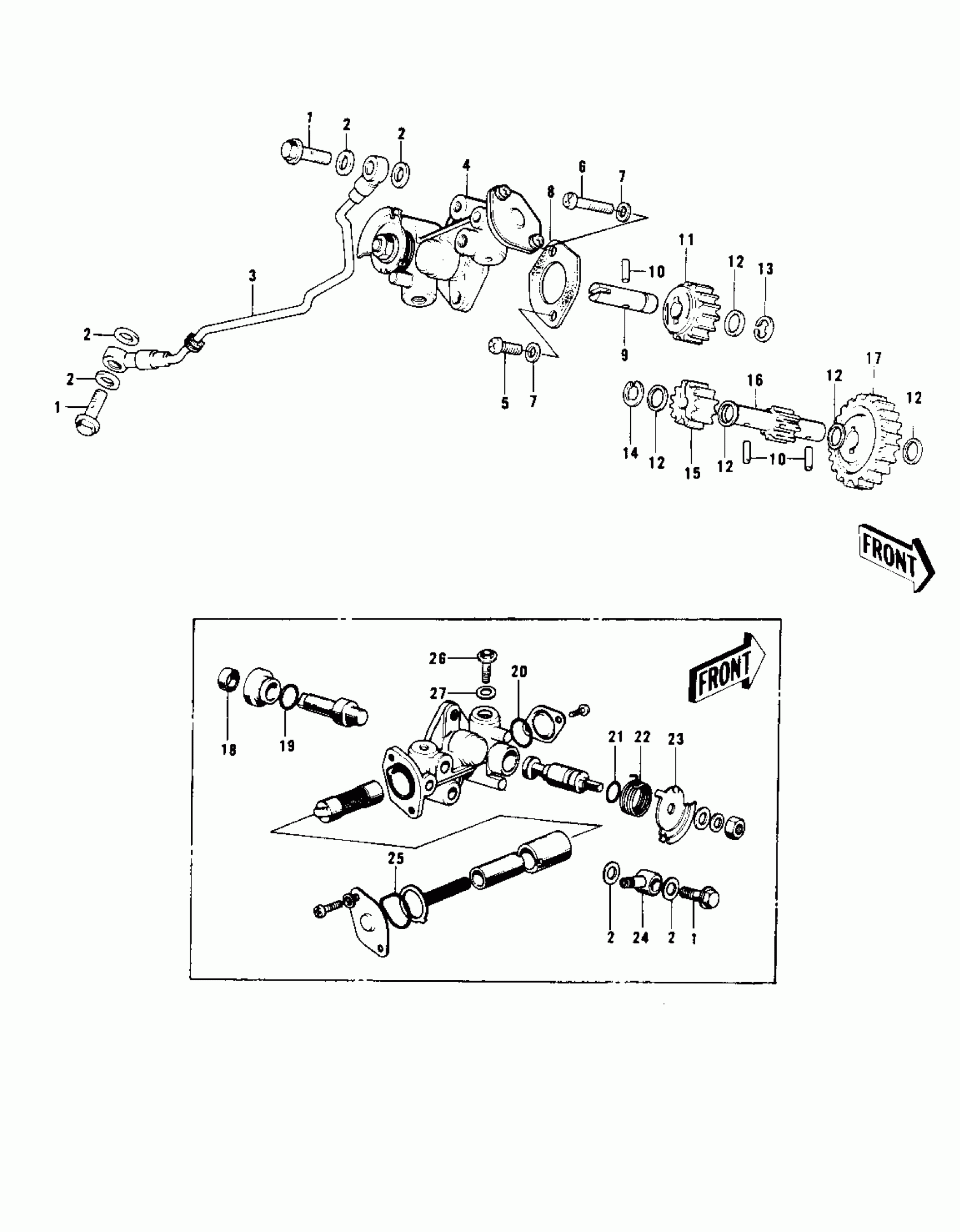

1979 Kawasaki KD125-A5 Oil Pump Diagram

#

Description
Price
Status
Order Qty

1

BOLT,BANJO,L=16

92060-013

$5.16

In stock

2

$3.13

In stock

3

PIPE,OIL

16134-022

Out of stock

4

OIL PUMP ASSY

16082-069

Out of stock

4

OIL PUMP ASSY

16082-069

Out of stock

5

SCREW-PAN-CROS

220B0514

Out of stock

6

SCREW-PAN-CROS

220B0528

$1.34

In stock

7

$3.12

In stock

8

GASKET,OIL PUMP

11060-1160

$4.41

In stock

9

$10.42

In stock

10

PIN,DOWEL

92042-035

Out of stock

11

GEAR,OIL PUMP

16085-021

$17.90

In stock

12

WASHER,THRUST

92026-095

Out of stock

13

$0.76

In stock

14

$0.67

In stock

15

GEAR,OIL PUMP

16085-020

$17.90

In stock

16

PINION,TACHOMETER

13224-010

Out of stock

17

GEAR,OIL PUMP

16085-022

$19.39

In stock

18

$5.76

In stock

19

$3.43

In stock

20

"0" RING,LOWER CAP

16090-003

Out of stock

20

RING-O,CAP,CAMSHAFT SIDE

16090-004

Out of stock

21

SEAL-OIL,CAMSHAFT,"X"TYPE

92049-1294

Out of stock

22

$9.42

In stock

23

$7.78

In stock

24

FITTING,BANJO

92061-009

Out of stock

25

$7.84

In stock

26

BOLT,AIR VENT

92009-1010

Out of stock

27

WASHER

92022-1006

$5.14

In stock
