1979 Kawasaki KD125-A5 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1979 Kawasaki KD125-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

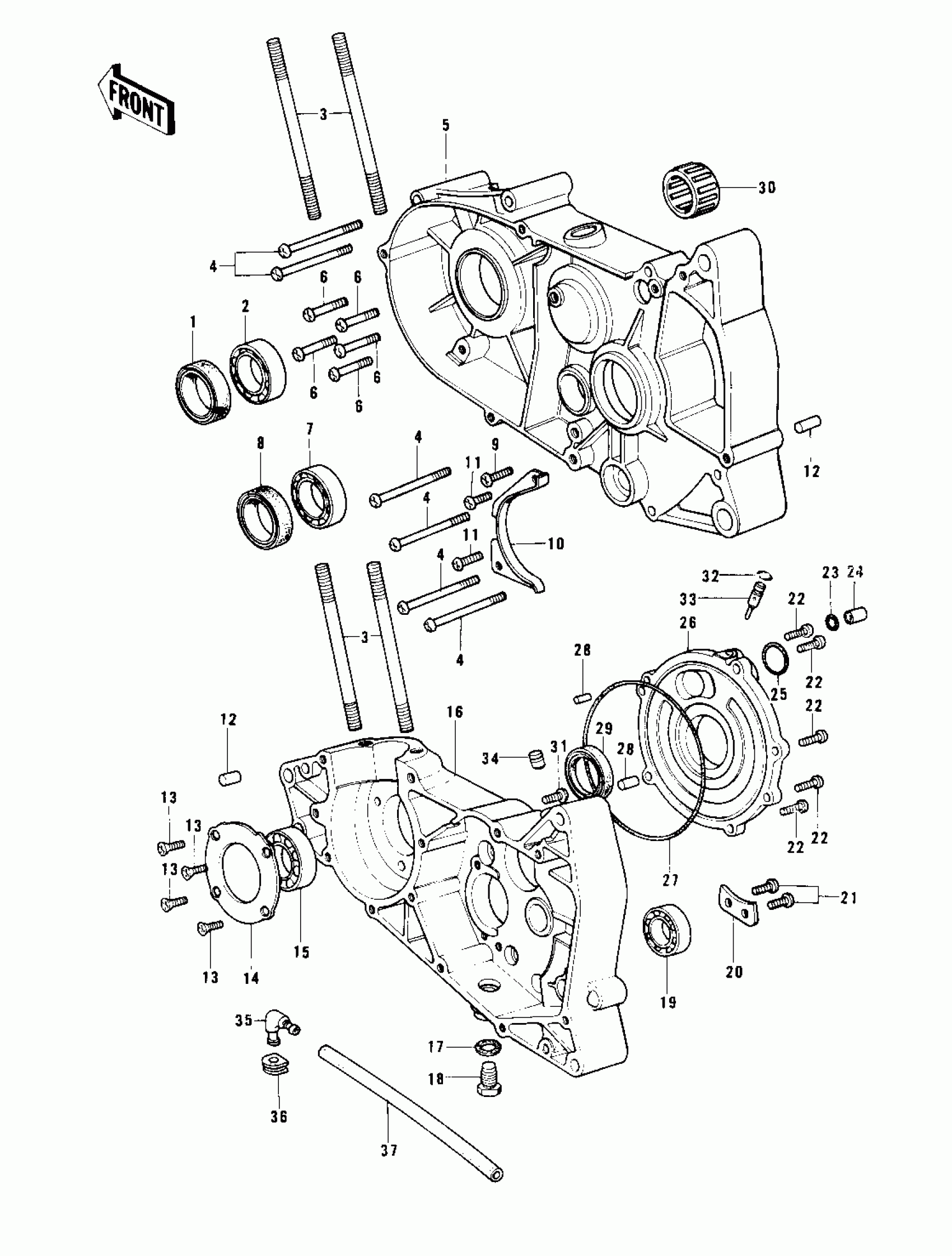

1979 Kawasaki KD125-A5 Crankcase Diagram

#

Description
Price
Status
Order Qty

1

SEAL-OIL

92049-1240

Out of stock

2

$10.76

In stock

3

STUD,8X70

172G0870

Out of stock

4

SCREW-PAN-CROS,6X60

220B0660

Out of stock

5

SET-CRANKCASE,F.BLACK

14001-5149

Out of stock

5

SET-CRANKCASE,F.BLACK

14001-5138

Out of stock

6

SCREW PAN HEAD 6X40

220B0640

Out of stock

7

$9.84

In stock

8

SEAL-OIL,SC25376

92050-013

Out of stock

9

$4.61

In stock

10

GUIDE,CHAIN

14077-003

Out of stock

11

SCREW PAN HEAD 6X12

220B0612

Out of stock

12

PIN,DOWEL,10X14

92043-1037

$0.76

In stock

13

$0.63

In stock

14

PLATE,CRANK BEARING

14014-028

Out of stock

15

$37.55

In stock

16

CRANKCASE,R.H.,BLACK

14002-1040-21

Out of stock

16

SET-CRANKCASE,F.BLACK

14001-5138

Out of stock

17

$3.24

In stock

18

PLUG

92066-1240

Out of stock

19

$11.12

In stock

20

PLATE,MISSION BERNG

14014-029

Out of stock

21

SCREW PAN HEAD 6X12

220B0612

Out of stock

22

$4.61

In stock

23

RING-O,7.8X3.5

92055-029

$3.65

In stock

24

PIN,DOWEL

92042-037

Out of stock

24

PIN,DOWEL,8X16

92042-017

$5.10

In stock

25

"O" RING,28MM

670B3028

Out of stock

26

COVER,ROTARY DISC VLV

14019-052

Out of stock

26

COVER,ROTARY DISC

14019-055

Out of stock

27

"O" RING,VALVE COVER

92055-057

Out of stock

28

ROLLER,5X12

610A0512

$4.53

In stock

29

SEAL-OIL

92049-1250

Out of stock

30

BEARING,NEEDLE

92046-043

Out of stock

31

SCREW PAN HEAD 6X25

220B0625

Out of stock

32

"O" RING

92055-080

Out of stock

33

NOZZLE

92062-012

$13.07

In stock

34

PLUG,15X19

92074-035

$5.97

In stock

35

BREATHER ASSY

14069-1001

$22.77

In stock

36

GROMMET,BREATHER

92071-042

$3.39

In stock

37

BREATHER ASSY

14069-1001

$22.77

In stock
Crankshaft/piston/rotary Valve →
