1979 Kawasaki KD125-A5 Kickstarter Mechanism Diagram

← All diagrams

Find the part on the Kickstarter Mechanism diagram for your 1979 Kawasaki KD125-A5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

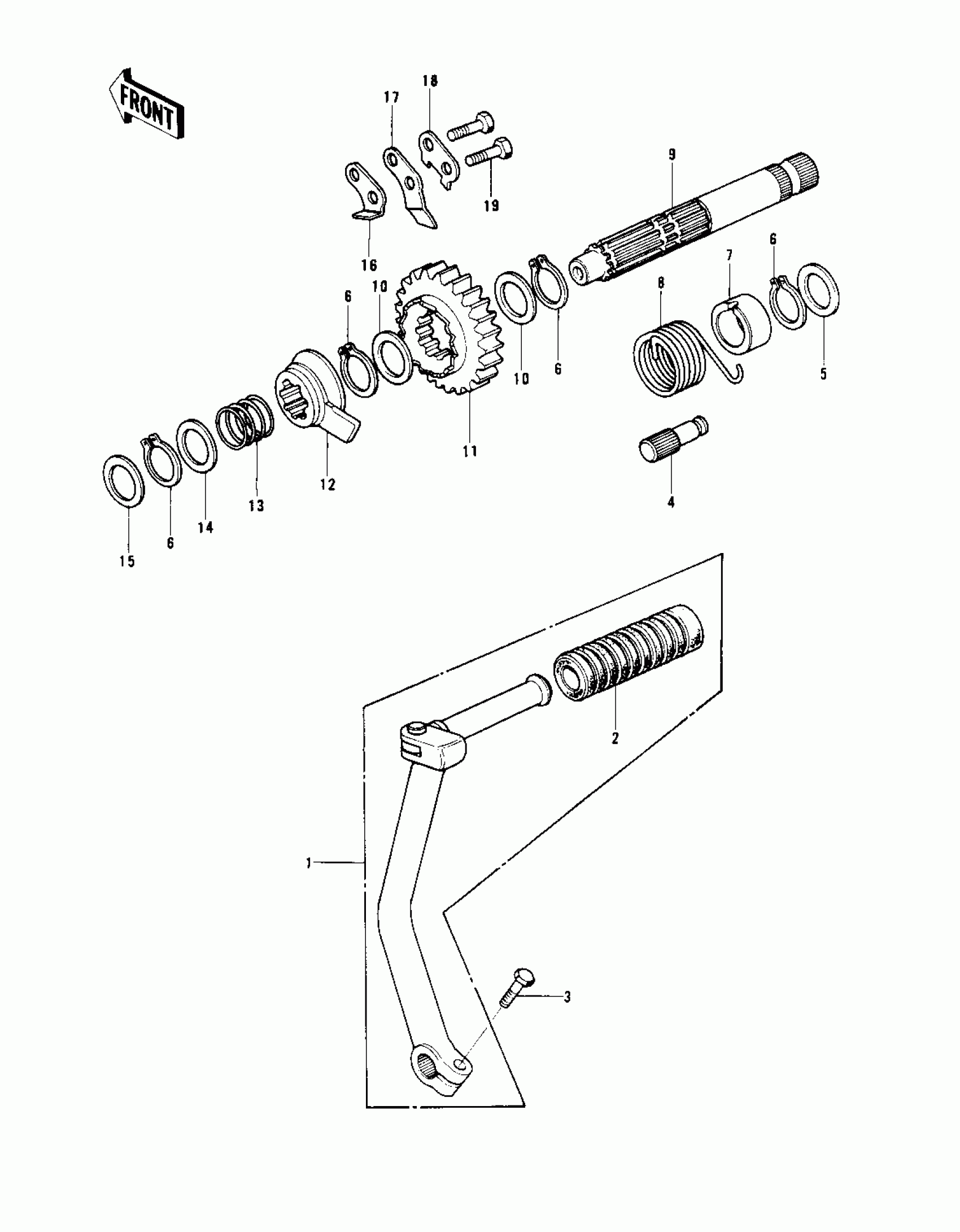

1979 Kawasaki KD125-A5 Kickstarter Mechanism Diagram

#

Description
Price
Status
Order Qty

1

PEDAL,KICKSTARTER

13064-019

Out of stock

2

DAMPER,PEDAL

13063-002

$3.58

In stock

3

BOLT-SMALL-UPSET 8X25

115G0825

Out of stock

4

PIN

92043-102

Out of stock

5

WASHER,PLAIN

92022-268

Out of stock

6

$3.43

In stock

7

GUIDE,KICKSPRING

13070-008

Out of stock

8

SPRING,KICKSTARTER

92082-005

Out of stock

9

SHAFT,KICKSTARTER

13066-1012

Out of stock

9

SHAFT,KICKSTARTER

13066-1012

Out of stock

10

WASHER,16.8X22X0.5

92022-315

Out of stock

11

GEAR,KICKSTARTER

13068-032

Out of stock

12

RATCHET

13078-1052

$67.80

In stock

13

SPRING,RATCHET

92081-122

$6.98

In stock

14

WASHER,16.8X22X0.5

92022-315

Out of stock

15

WASHER,12.3X20X0.5

92022-269

Out of stock

16

STOPPER,KICKSTARTER

32085-1061

$5.36

In stock

17

GUIDE,KICKSTARTER

13206-010

Out of stock

18

WASHER,LOCK

92024-054

Out of stock

19

BOLT-UPSET

112G0618

Out of stock
