2013 Kawasaki Kaze Hit Gear Change Mechanism Diagram

← All diagrams

Find the part on the Gear Change Mechanism diagram for your 2013 Kawasaki Kaze Hit, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

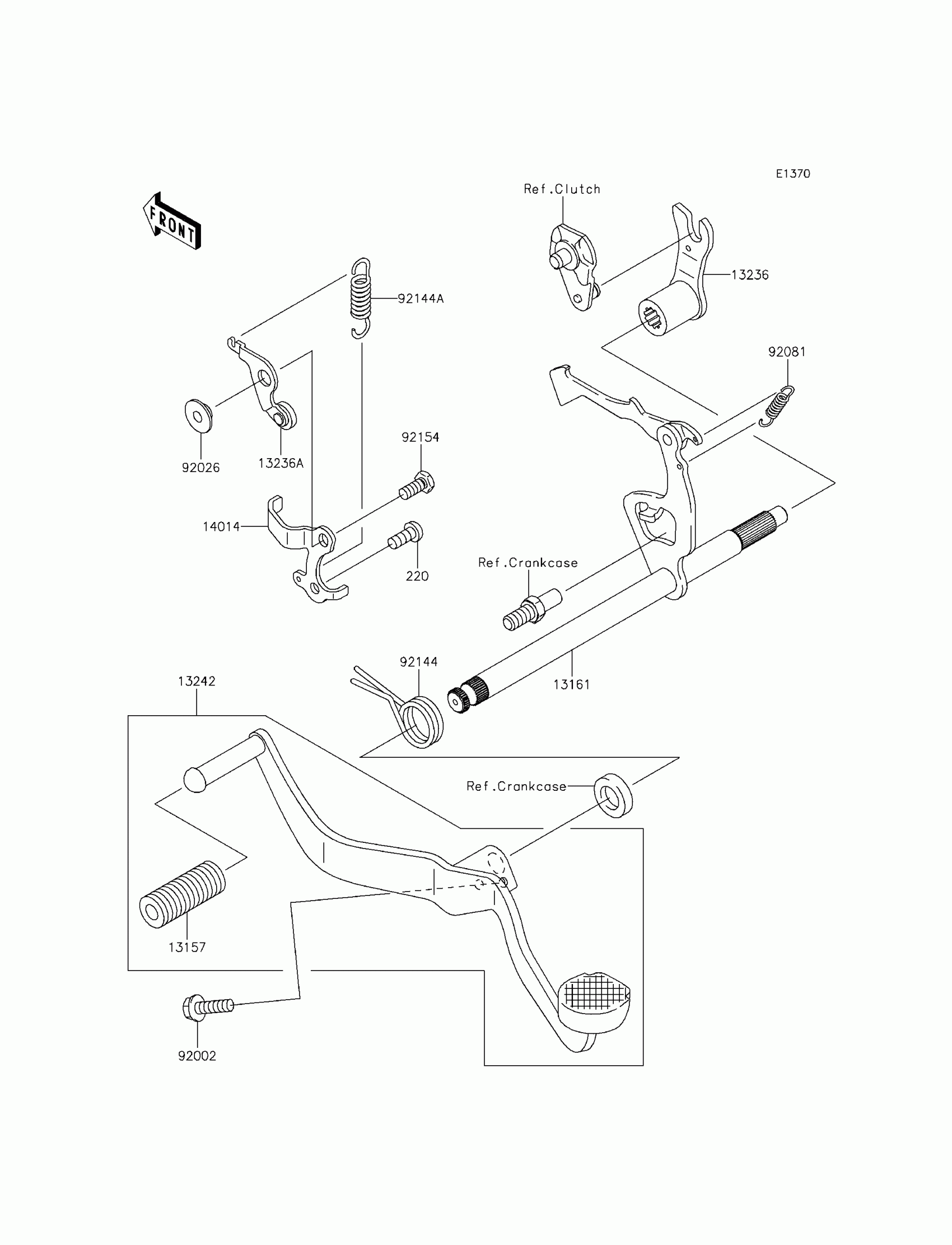

2013 Kawasaki Kaze Hit Gear Change Mechanism Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROSS,6X14

220AA0614

1
Out of stock

13157

DAMPER,CHANGE PEDAL

13157-004

1
Out of stock

13161

LEVER-COMP-CHANGE SHAFT

13161-0079

1
Out of stock

13236

LEVER-COMP

13236-0717

1
Out of stock

13236A

LEVER-COMP,POSITION

13236-1256

1
Out of stock

13242

LEVER-ASSY-CHANGE

13242-0073

1
Out of stock

14014

PLATE-POSITION

14014-1118

1
Out of stock

92002

BOLT,6X20

92002-1237

1
Out of stock

92026

SPACER

92026-1217

1
Out of stock

92081

SPRING,CHANGE LEVER

92081-076

1
Out of stock

92144

SPRING,CHANGE SHAFT RETURN

92144-1107

1
Out of stock

92144A

SPRING

92144-1590

1
Out of stock

92154

BOLT,6X14

92154-0788

1
Out of stock
