2013 Kawasaki Kaze HIT Gear Change Drum/shift Fork Diagram

← All diagrams

Find the part on the Gear Change Drum/shift Fork diagram for your 2013 Kawasaki Kaze HIT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

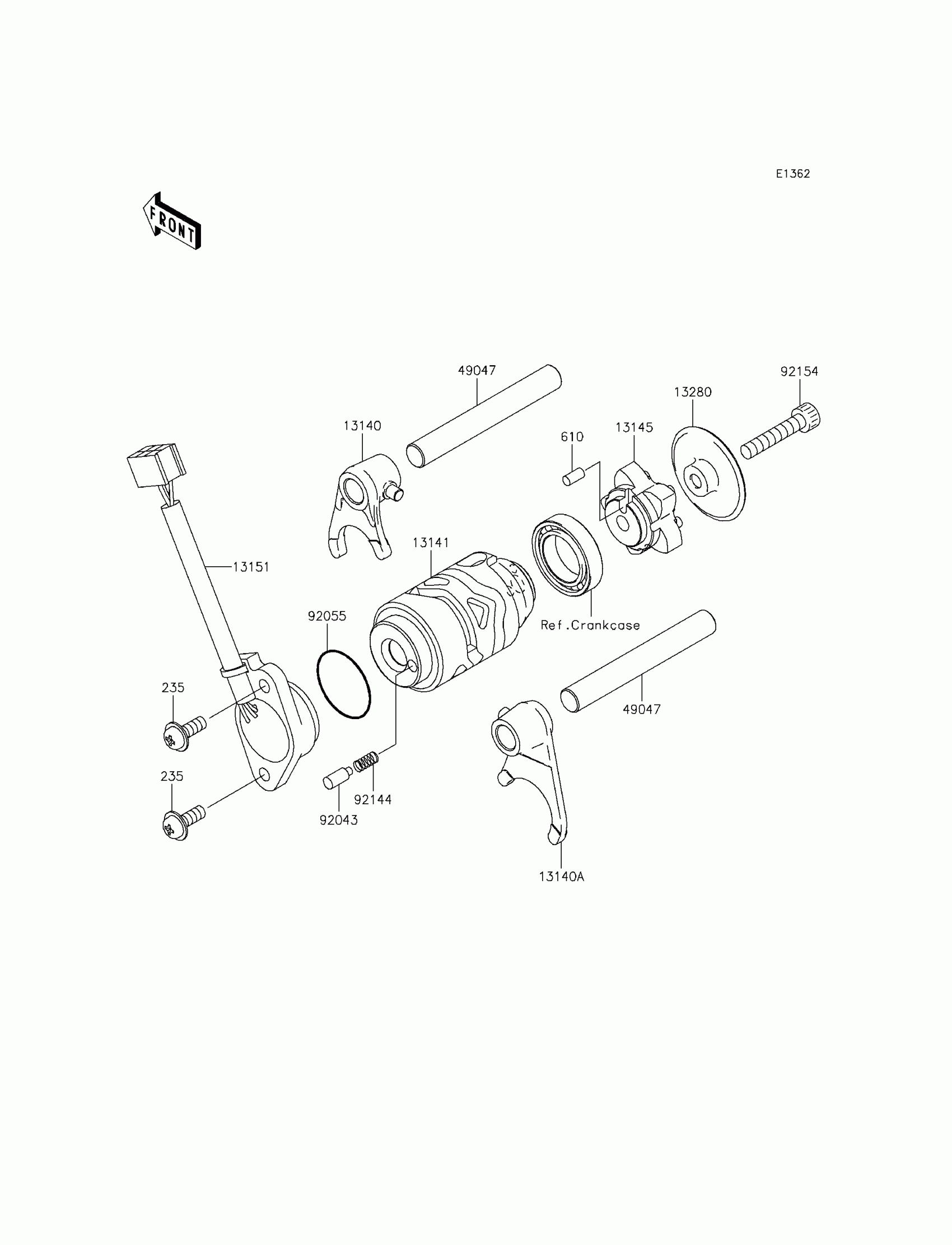

2013 Kawasaki Kaze HIT Gear Change Drum/shift Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

235

SCREW-PAN-WP-CROS,5X14

235AA0514

1
Out of stock

610

ROLLER,4X8

610A0408

1
Out of stock

13140

FORK-SHIFT

13140-0626

1
Out of stock

13140A

FORK-SHIFT

13140-0627

1
Out of stock

13141

DRUM-CHANGE

13141-1222

1
Out of stock

13145

CAM-CHANGE DRUM

13145-1093

1
Out of stock

13151

SWITCH-COMP,NEUTRAL

13151-0018

1
Out of stock

13280

HOLDER

13280-1228

1

$4.71

In stock

49047

ROD-SHIFT

49047-1058

1
Out of stock

92043

PIN

92043-0718

1
Out of stock

92055

RING-O,27.7X2.4

92055-0717

1
Out of stock

92144

SPRING

92144-1245

1
Out of stock

92154

BOLT,SOCKET,6X30

92154-0388

1
Out of stock
