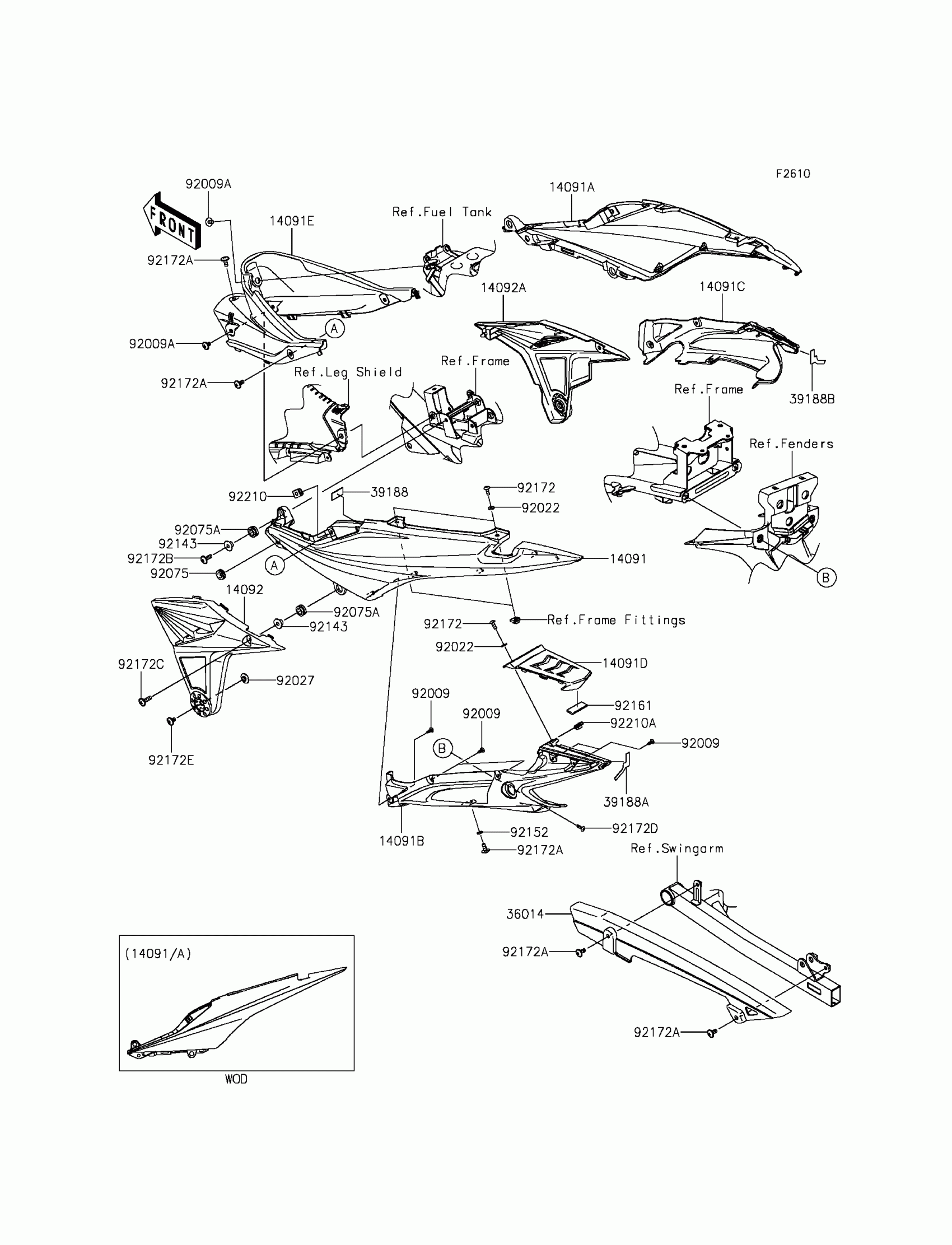

Kawasaki KAZE HIT Side Covers/Chain Cover Diagram

#

Description
Price

14091

COVER,TAIL,UPP,LH,M.F.S.BLACK

14091-1778-21P

$29.44

14091A

COVER,TAIL,UPP,RH,M.F.S.BLACK

14091-1779-21P

$30.94

14091B

COVER,TAIL,LWR,LH,F.BLACK

14091-1780-6Z

$11.68

14091C

COVER,TAIL,LWR,RH,F.BLACK

14091-1781-6Z

$11.68

14091D

COVER,TAIL,CNT,M.F.S.BLACK

14091-1782-21P

$4.08

14091E

COVER,TANK,F.BLACK

14091-1786-6Z

$12.98

14092

COVER,PIVOT,LH,F.BLACK

14092-0169-6Z

$8.66

14092A

COVER,PIVOT,RH,F.BLACK

14092-0170-6Z

$8.66

36014

CASE-CHAIN

36014-0001

$20.69

39188

TAPE

39188-0022

$0.73

39188A

TAPE

39188-0023

$0.85

39188B

TAPE

39188-0024

$0.85

92009

SCREW,TAPPING,4X12,BLACK

92009-1142

$3.69

92009A

SCREW,6X10

92009-1729

$0.26

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$2.99

92027

COLLAR

92027-1757

$3.57

92075

DAMPER

92075-1629

$3.81

92075A

DAMPER

92075-1634

$3.57

92143

COLLAR,L=9.6

92143-1016

$4.67

92152

COLLAR,6.4X8X3.3

92152-0813

$0.85

92161

DAMPER,40X15X3

92161-0983

$0.61

92172

SCREW

92172-0016

$1.88

92172A

SCREW,6X14

92172-0055

$0.44

92172B

SCREW,6X18

92172-0192

$10.83

92172C

SCREW,6X22

92172-0373

$1.47

92172D

SCREW,5X18

92172-0443

$0.61

92172E

SCREW,6X10

92172-0491

$0.85

92210

NUT,6MM

92210-0218

$1.81

92210A

NUT,PLATE,5MM

92210-0262

$1.04
