2013 Kawasaki Kaze HIT Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2013 Kawasaki Kaze HIT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

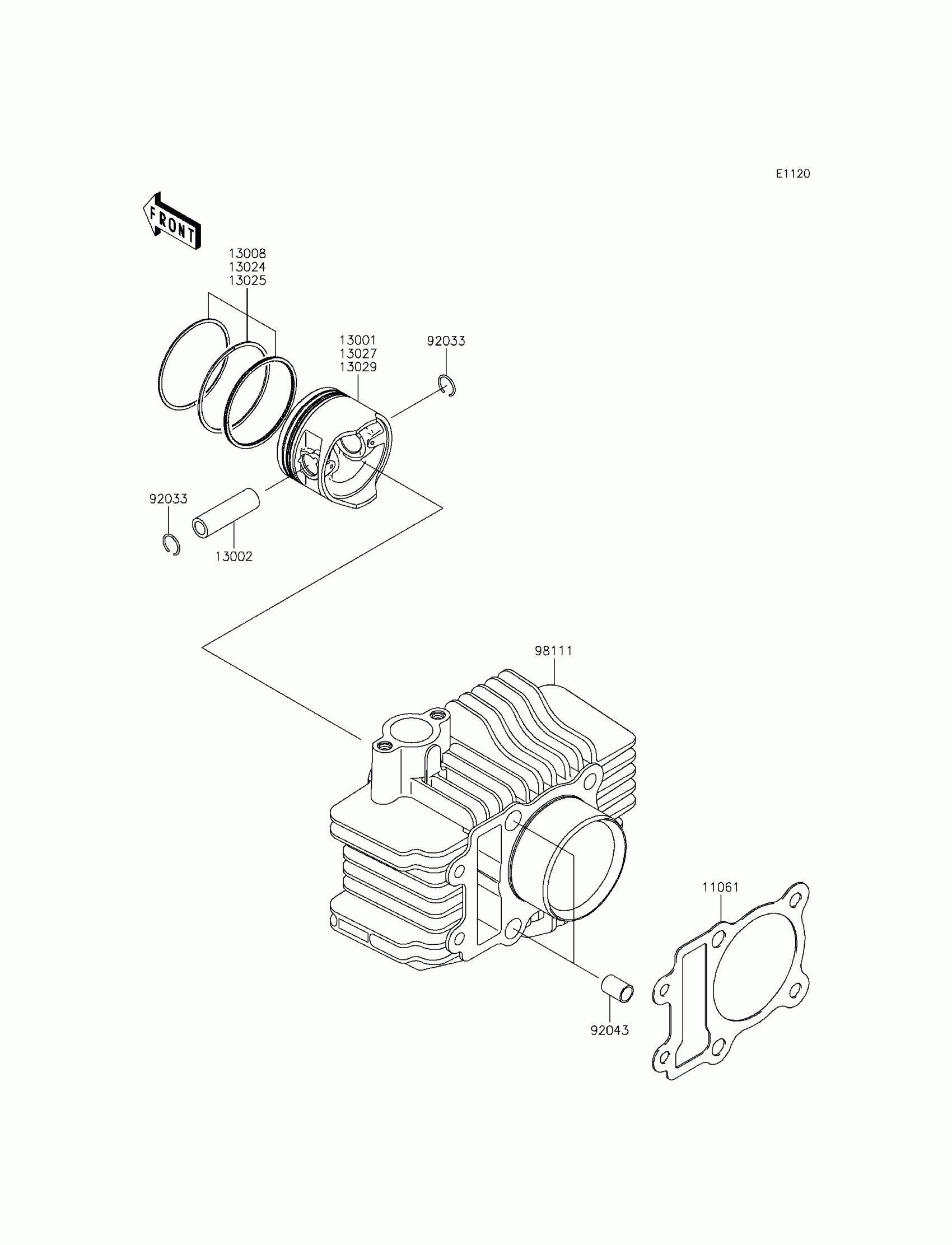

2013 Kawasaki Kaze HIT Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,CYLINDER BASE

11061-0256

1
Out of stock

13001

PISTON-ENGINE

13001-0721

1
Out of stock

13002

PIN-PISTON

13002-0031

1
Out of stock

13008

RING-SET-PISTON

13008-0011

1
Out of stock

13024

RING-SET-PISTON LL,O/S 1.00

13024-0007

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-0008

1
Out of stock

13027

PISTON-ENGINE LL

13027-0053

1
Out of stock

13029

PISTON-ENGINE L

13029-0704

1
Out of stock

92033

RING-SNAP

92033-1072

1
Out of stock

92043

PIN,8.2X10X14

92043-0100

1
Out of stock

98111

CYLINDER-COMP-ENGINE

98111-0065

1
Out of stock
