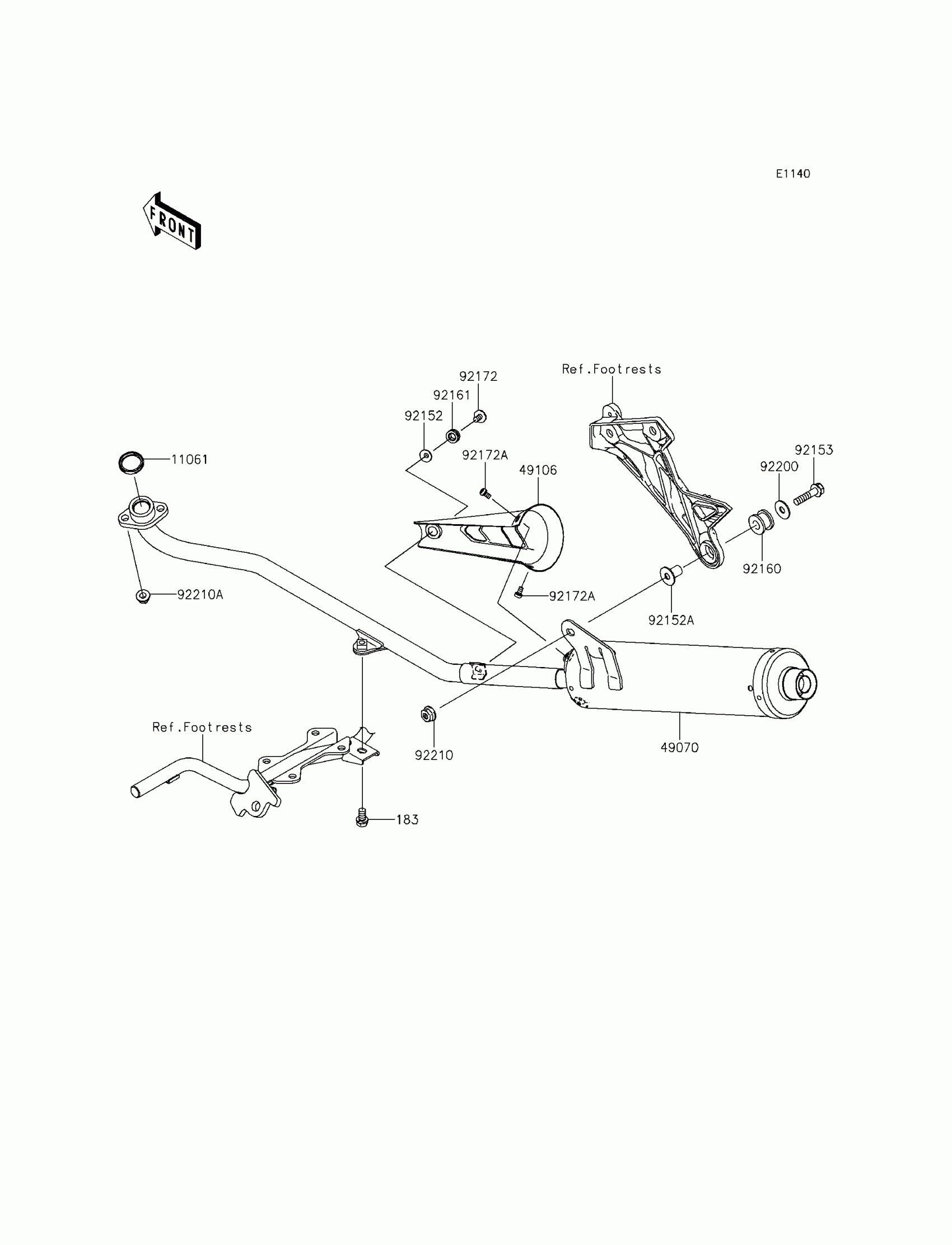

Kawasaki KAZE HIT Muffler(s) Diagram

Description

Price

183

BOLT-UPSET-WS-SMALL,8X16

183BA0816

$3.92

11061

GASKET,EXHAUST PIPE

11061-0183

$3.64

49070

MUFFLER-COMP

49070-0728

$189.28

49106

COVER-MUFFLER

49106-0109

$25.56

92152

COLLAR

92152-0334

$3.71

92152A

COLLAR

92152-0676

$3.83

92153

BOLT,8X35

92153-1186

$1.07

92160

DAMPER,MUFFLER MOUNT

92160-1116

$4.18

92161

DAMPER

92161-0306

$4.27

92172

SCREW

92172-0194

$3.68

92172A

SCREW,5X10

92172-0490

$9.68

92200

WASHER,8.5X24.5X1.6

92200-0735

$1.69

92210

NUT,8MM

92210-0177

$2.15

92210A

NUT,8MM

92210-0381

$2.76
