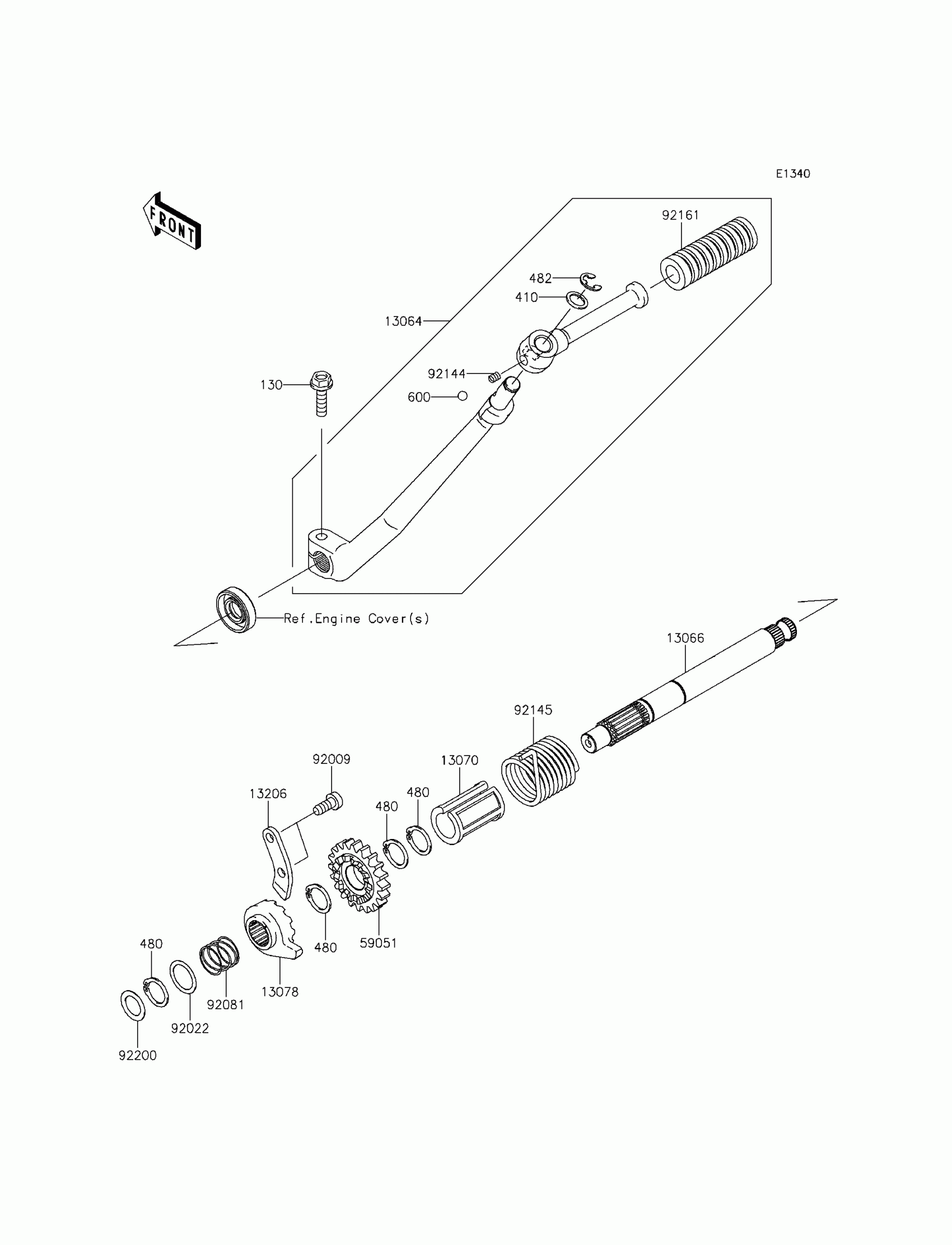

Kawasaki KAZE HIT Kickstarter Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X22

130CA0622

$1.90

410

WASHER-PLAIN-SMALL,10MM

410AA1000

$0.44

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

482

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63

600

BALL-STEEL,1/4

600A0800

$0.59

13064

LEVER-ASSY-KICK

13064-0055

$70.72

13066

SHAFT-KICK

13066-0062

$37.40

13070

GUIDE,KICK SHAFT

13070-1035

$6.08

13078

RATCHET

13078-0557

$18.78

13206

GUIDE-KICK

13206-1006

$7.81

59051

GEAR-SPUR

59051-0715

$32.96

92009

SCREW,TAPPING

92009-1104

$3.15

92022

WASHER,16.8X22X0.5

92022-315

$4.67

92081

SPRING,RATCHET

92081-122

$6.70

92144

SPRING,KICK PEDAL

92144-1791

$0.76

92145

SPRING,KICK STARTER

92145-0626

$4.63

92161

DAMPER

92161-1250

$1.44

92200

WASHER,13.2X20X0.5

92200-0571

$1.10
