1972 Yamaha JT2_JT2MX (JT2MX) Frame Diagram

← All diagrams

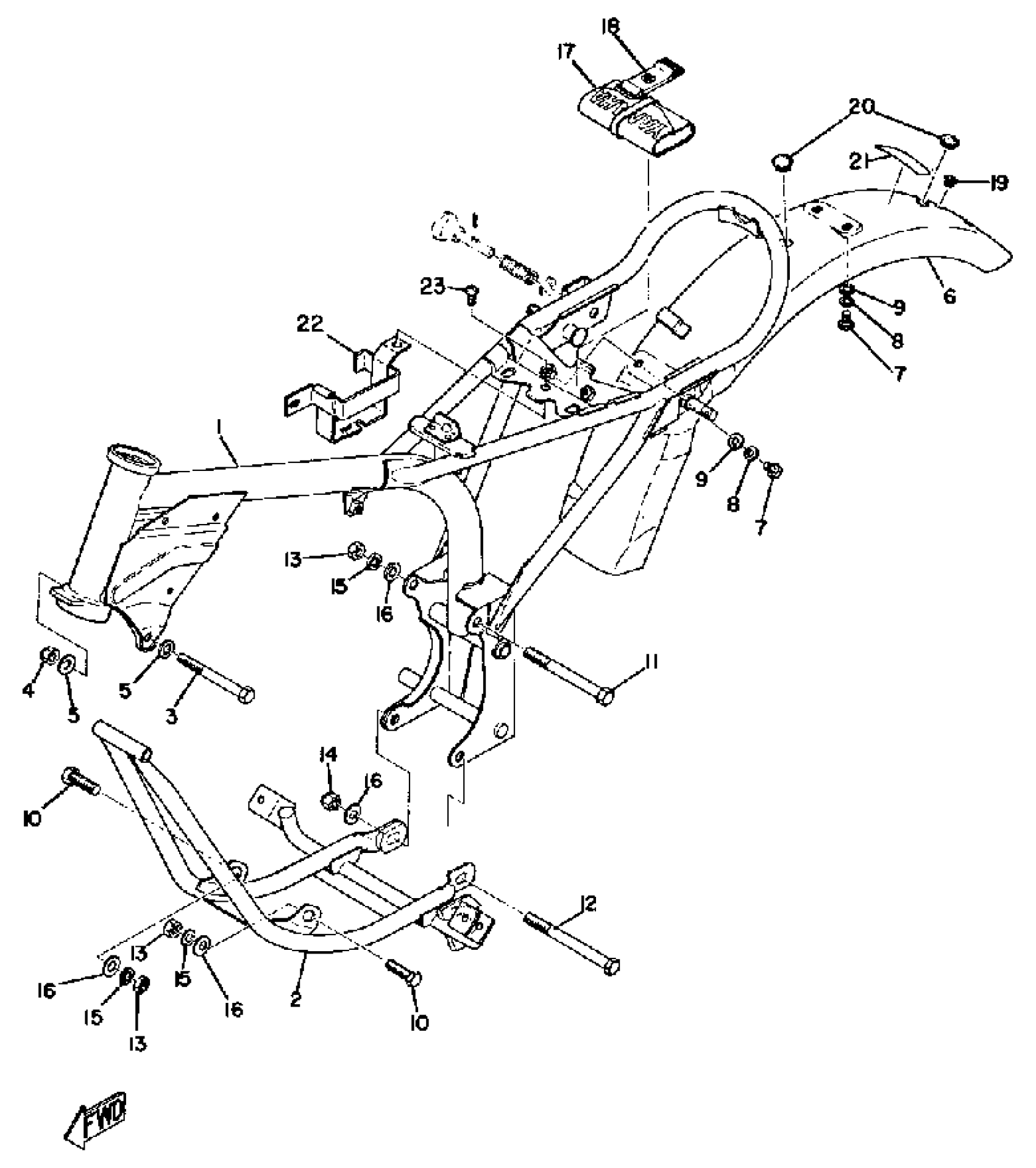

Find the part on the Frame diagram for your 1972 Yamaha JT2_JT2MX (JT2MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha JT2_JT2MX (JT2MX) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(288-21110-02-33)

1
Out of stock

2

TUBE, DOWN

(288-21280-00-33)

1
Out of stock

3

BOLT (97321-08090)

97023-08090-00

1
Out of stock

4

NUT, U

95617-08100-00

1

$6.78

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

FENDER, REAR

(288-21610-01-02)

1
Out of stock

6

FENDER, REAR

(338-21610-00-01)

1
Out of stock

7

BOLT (661)

97013-06012-00

1

$4.71

In stock

8

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

9

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

10

BOLT, HEXAGON

97013-08030-00

1

$3.20

In stock

11

BOLT, HEXAGON

97027-08100-00

1

$4.55

In stock

12

BOLT, FLANGE

95817-08115-00

1

$6.57

In stock

13

NUT(6L2)

95333-08600-00

1

$3.20

In stock

14

NUT, U

95617-08100-00

1

$6.78

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

16

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

17

TOOL KIT

(207-28100-10-00)

1
Out of stock

17

TOOL KIT

(353-28100-10-00)

1
Out of stock

18

BAND, TOOL

21V-21376-00-00

—

$6.38

In stock

19

PLUG 288833190000

90338-07043-00

—

$5.35

In stock

20

GROMMET

214-84154-60-00

1
Out of stock

21

LABEL, SAFETY

288-21659-00-00

1
Out of stock

21

LABEL, SAFETY

(338-21659-00-00)

1
Out of stock

22

BOX, BATT.

(290-21240-00-00)

1
Out of stock

23

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock
