1988 Kawasaki JS550 Hull/engine Hood Diagram

← All diagrams

Find the part on the Hull/engine Hood diagram for your 1988 Kawasaki JS550, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

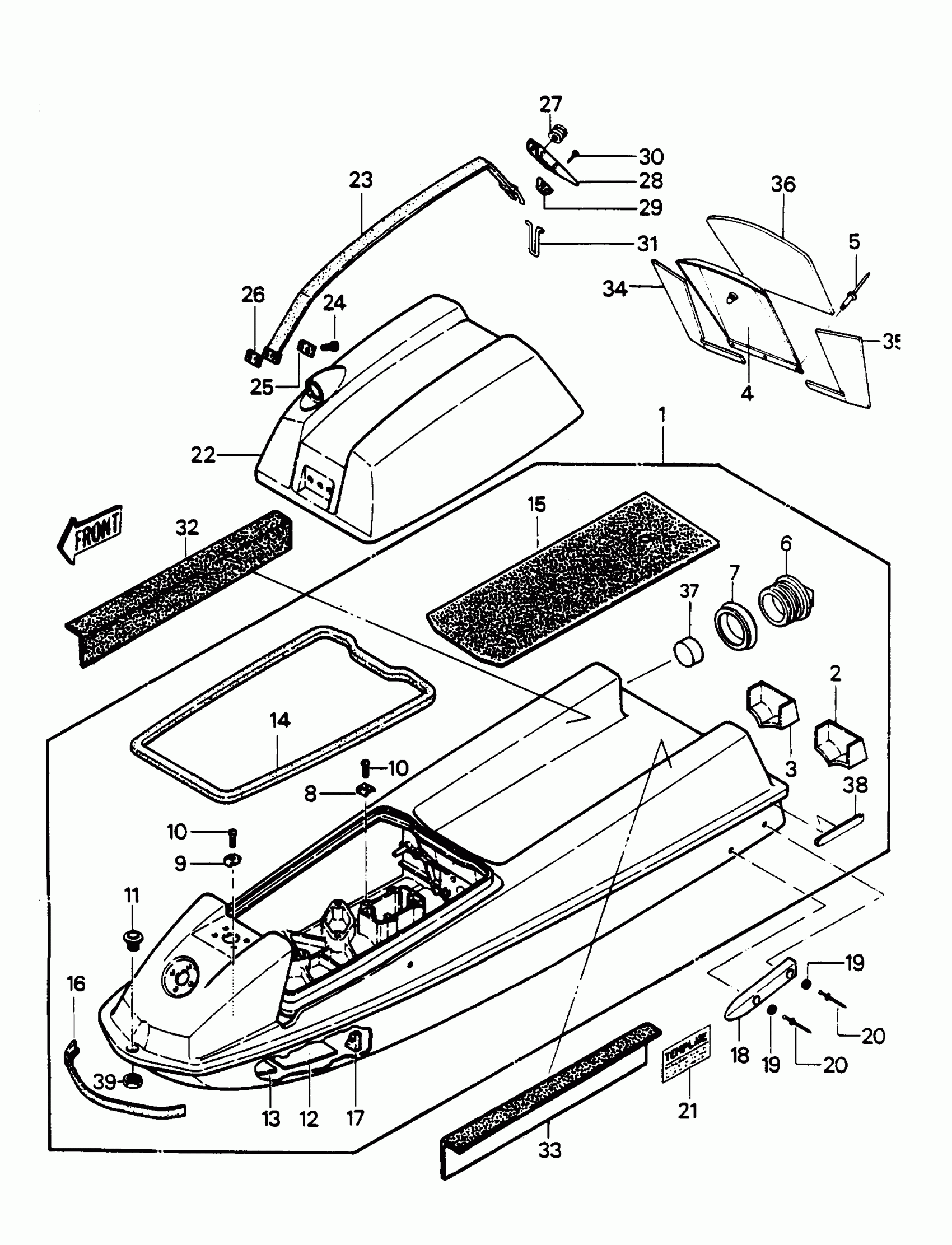

1988 Kawasaki JS550 Hull/engine Hood Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

10

SCREW,TAPPING

92011-561

1
Out of stock

11

BUSHING,L=18

92028-3724

1
Out of stock

12

DAMPER,FUEL TANK

92075-521

1
Out of stock

13

DAMPER,MUFFLER

92075-522

1
Out of stock

14

GASKET,ENGINE HOOD

92065-539

1
Out of stock

15

MAT

59131-502

1
Out of stock

16

BUMPER

59201-3691

1
Out of stock

17

DETENT

59346-504

1
Out of stock

18

STABILIZER

59437-3002

1
Out of stock

19

WASHER,5X16X1.5

92022-3041

1
Out of stock

20

RIVET

92039-3002

1
Out of stock

21

TEMPLATE,STABILIZER

99969-0560

—
Out of stock

22

HOOD-COMP-ENGINE,JET WHITE

59456-3001-8C

1
Out of stock

23

BAND,HOOD

92072-501

1
Out of stock

24

BOLT,6X30

92001-3022

1
Out of stock

25

WASHER,BAND

92022-509

1
Out of stock

26

BRACKET,PLATE

59086-501

1
Out of stock

27

GROMMET

92071-056

1
Out of stock

28

LEVER

13168-3701

1
Out of stock

29

DETENT

59346-503

1
Out of stock

30

SCREW

92011-562

1
Out of stock

31

HINGE

53009-503

1

$14.08

In stock

32

MAT,DECK FIN,RH

53004-3701

1

$173.90

In stock

33

MAT,DECK FIN,LH

53004-3702

1

$178.59

In stock

34

MAT,DASHBOARD,RH

53004-3709

1

$42.36

In stock

35

MAT,DASHBOARD,LH

53004-3710

1

$42.36

In stock

36

MAT,DASHBOARD COVER

53004-3705

1

$52.41

In stock

37

DAMPER,69X16T

92075-3710

1
Out of stock

38

GRIP,HULL

46075-3701

1
Out of stock

39

NUT,20MM

92015-3721

1
Out of stock

1

HULL-ASSY,JET WHITE

59431-3706-8C

1
Out of stock

2

HULL,LH,EXTENSION,JET WHITE

59251-3006-8C

1
Out of stock

3

HULL,RH,EXTENSION,JET WHITE

59251-3005-8C

1
Out of stock

4

COVER,DASHBOARD

14025-3706

1
Out of stock

5

RIVET,4MM

92039-3703

1
Out of stock

6

CAP

11012-3706

1
Out of stock

7

SEAL-OIL

92049-3709

1
Out of stock

8

HOOK

27012-501

1
Out of stock

9

HOOK

27012-502

1
Out of stock
