2004 Suzuki JR80 Rear Shock Absorber Diagram

← All diagrams

Find the part on the Rear Shock Absorber diagram for your 2004 Suzuki JR80, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

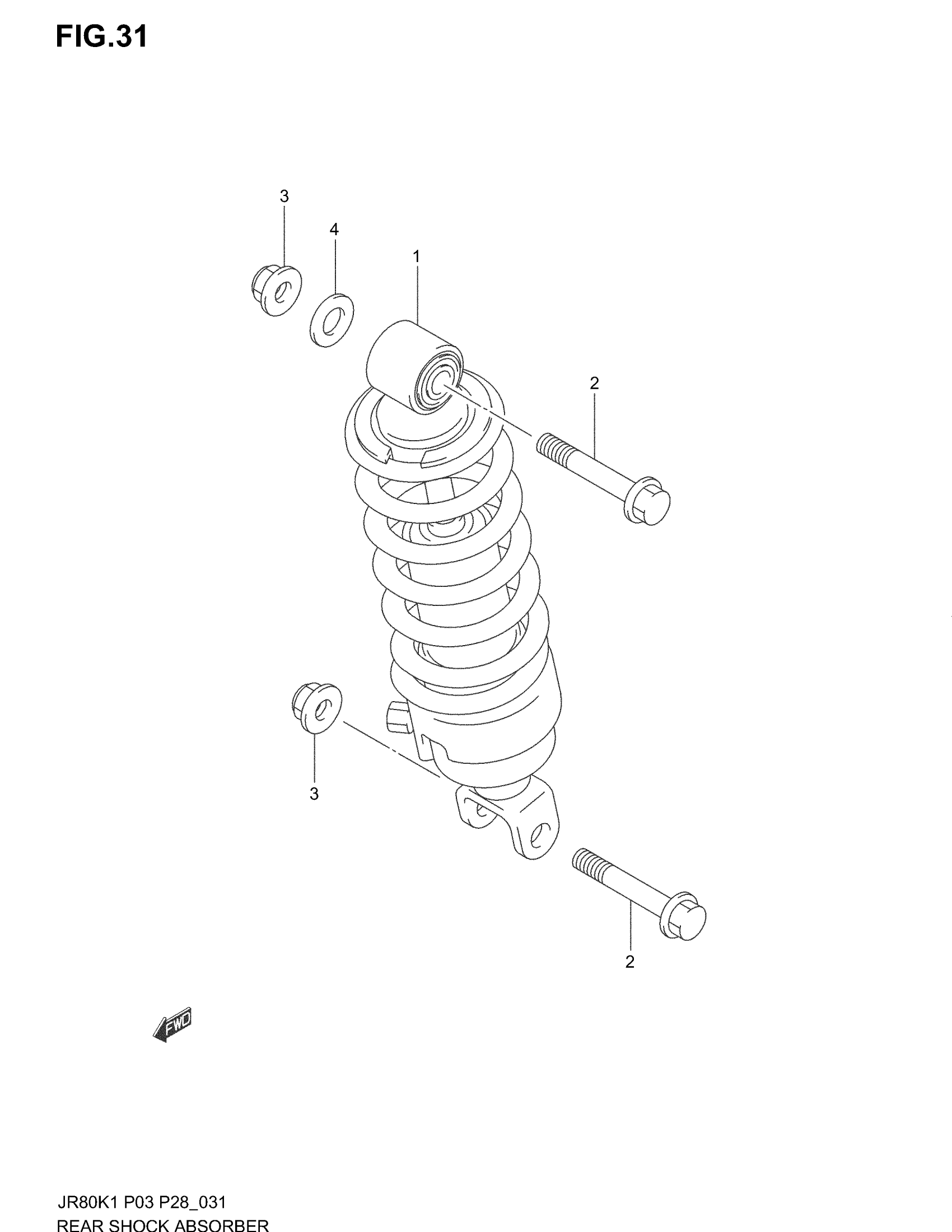

2004 Suzuki JR80 Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, REAR SHOCK

62100-03421

1
Out of stock

2

BOLT (10X51)

62311-03400

2
Out of stock

3

NUT

08319-31107

2
Out of stock

4

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

1
Out of stock
