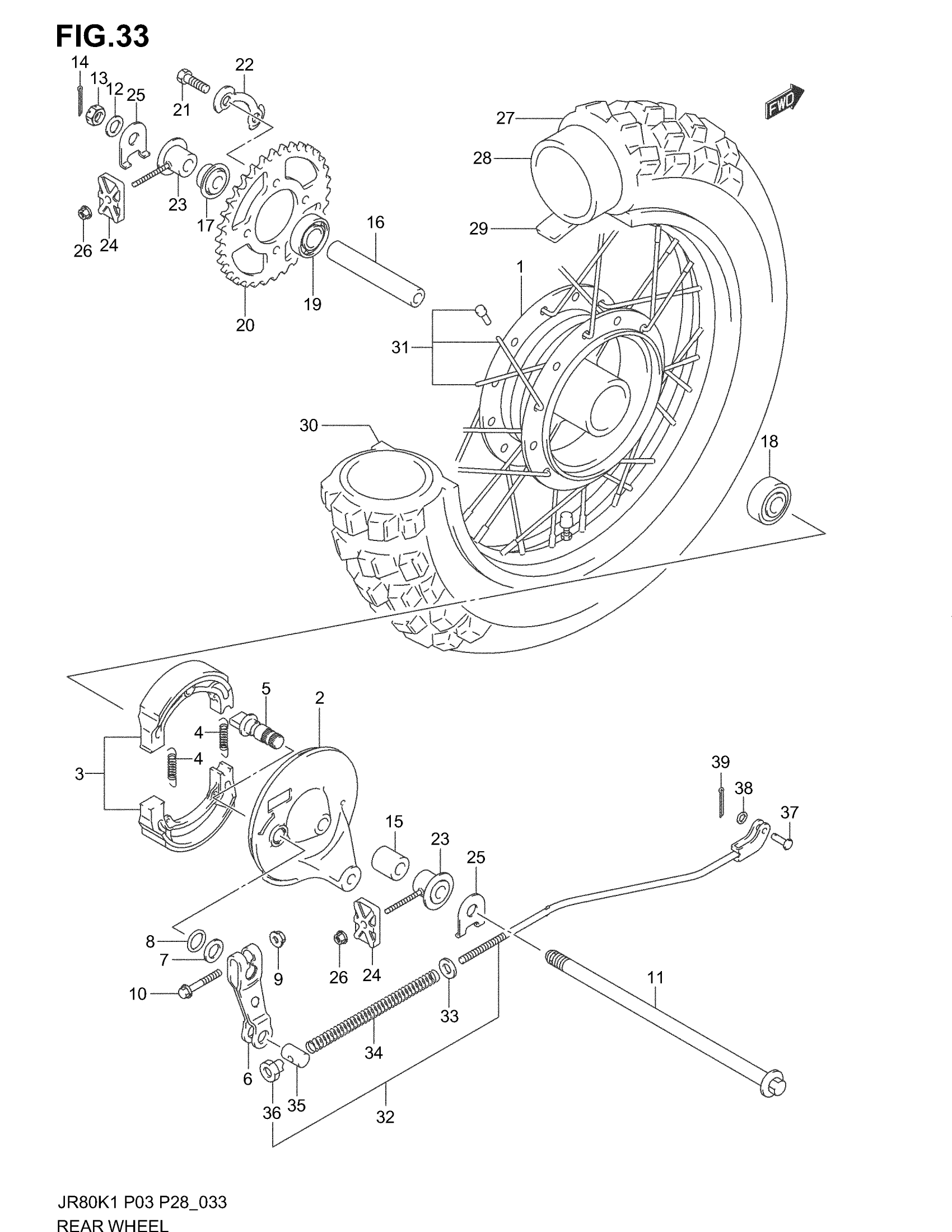

Suzuki JR80 (2004) REAR WHEEL Diagram

DRUM, REAR HUB

64110-46401

Unavailable

PANEL, REAR BRAKE ANCHOR

64210-46024

Unavailable

SHOE SET, BRAKE

54401-43810

$29.79

SPRING

09443-07025

$1.68

SHAFT, BRAKE CAM

54441-29305

$22.58

LEVER, REAR BRAKE CAM

64451-17300

$28.32

WASHER (14.5X22X1.60)

09160-14055

$2.40

O RING (ID:13.8,D:2.50)

09280-14011

$4.30

NUT This part replaces 08316-10063.

08316-1006B

$2.50

BOLT This part replaces 01550-06353.

01550-0635A

$2.31

AXLE, REAR

64711-04711

$45.62

WASHER This part replaces 08322-01123.

08322-0112B

$2.85

NUT This part replaces 08314-40123.

08314-4012A

$2.53

PIN This part replaces 04111-30308.

04111-3030A

$1.37

SPACER, RH (12.1X22X22)

09180-12092

$6.77

SPACER, HUB (12.6X19X91)

09180-12078

$12.27

SPACER, REAR AXLE LH

64750-46000

$10.42

B1 12X37X12 BEA This part replaces 08143-63017.

08143-6301B

$17.58

BEARING This part replaces 08123-63017.

08123-6301B

$12.72

SPROCKET, REAR (NT:34)

64511-46431

$58.80

BOLT (8X28)

09100-08140

$2.08

WASHER

09169-08011

$2.25

ADJUSTER, CHAIN

61410-04701

$9.41

PLATE, ADJUSTER GUIDE

61431-04702

$4.09

WASHER, CHAIN ADJUSTER

64712-20900

$2.80

NUT

08319-31067

$2.01

TIRE, REAR (3.00-12) IRC

65100-46470

$111.37

TUBE ASSY, WHEEL INNER

65200-46410

$36.68

INNER TUBE PROT This part replaces 65261-46410.

65261-46420

$3.14

RIM, WHEEL (1.60X12)

65311-46420

$140.58

SPOKE SET, REAR WHEEL

65320-46430

$47.70

ROD ASSY, REAR BRAKE | Includes Item(s) 33 - 39

43300-03400

$13.38

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

SPRING

09440-09004

$2.06

PIN

09209-11002

$2.17

.NUT This part replaces 09150-06014.

09150-06010

$2.80

PIN

09200-06013

$2.05

.WASHER This part replaces 08322-01063.

08322-0106B

$2.24

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.22
