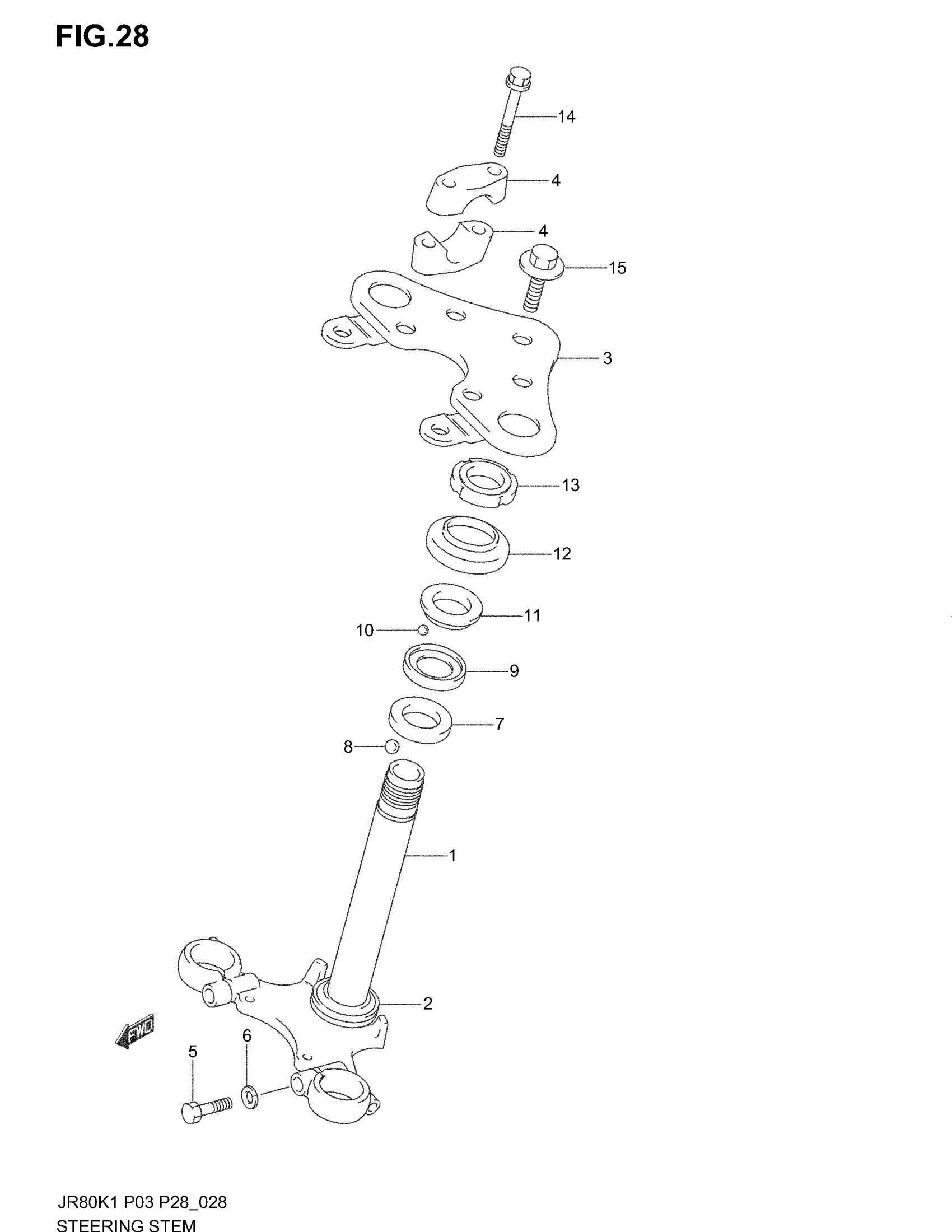

Suzuki JR80 (2004) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2

51410-03440

Unavailable

2

RACE, OUTER LOWER

51621-33001

$18.33

3

HEAD, STEERING STEM

51310-03440

Unavailable

4

HOLDER, HANDLE (BLACK)

56211-27200-291

$20.22

5

BOLT This part replaces 01500-10303.

01500-1030A

$2.90

6

LOCK WASHER

08321-01107

$1.83

7

RACE, INNER LOWER | MODEL K1/K2

51611-33002

$13.02

7

RACE, INNER LOWER | MODEL K3/K4

51612-03400

Unavailable

8

BALL, LOWER

06111-08003

$1.30

9

RACE,STEERING INNER UPPER

51611-20002

$13.50

10

BALL, UPPER

06111-06003

$1.24

11

RACE,STEERING OUTER UPPER

51621-28000

$13.50

12

DUST SEAL,STEERING UPPER

51643-25001

$4.17

13

NUT, STEERING STEM

51631-28000

$19.60

14

.BOLT This part replaces 01550-08553.

01550-0855A

$2.80

15

BOLT

51352-46030

$10.35
