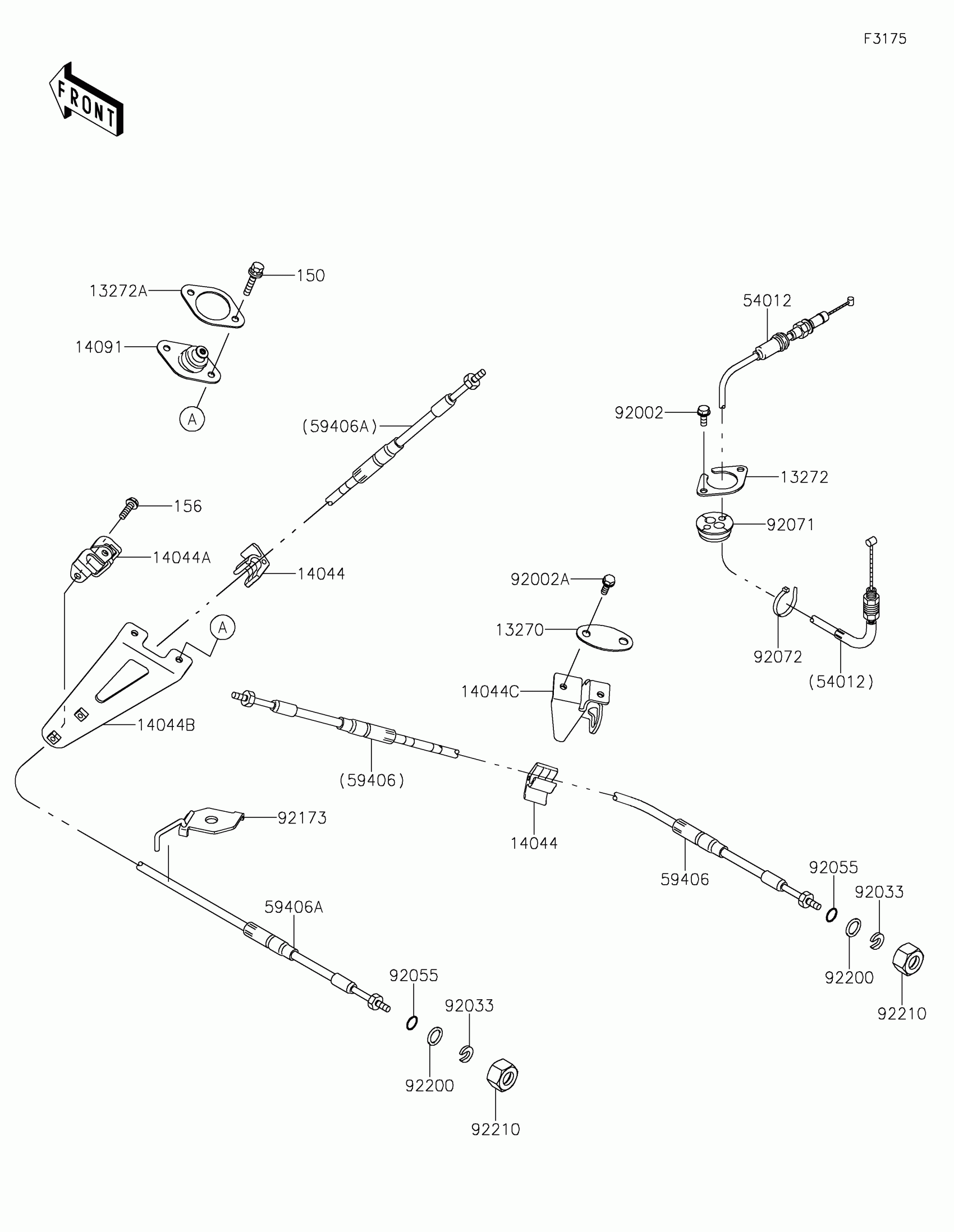

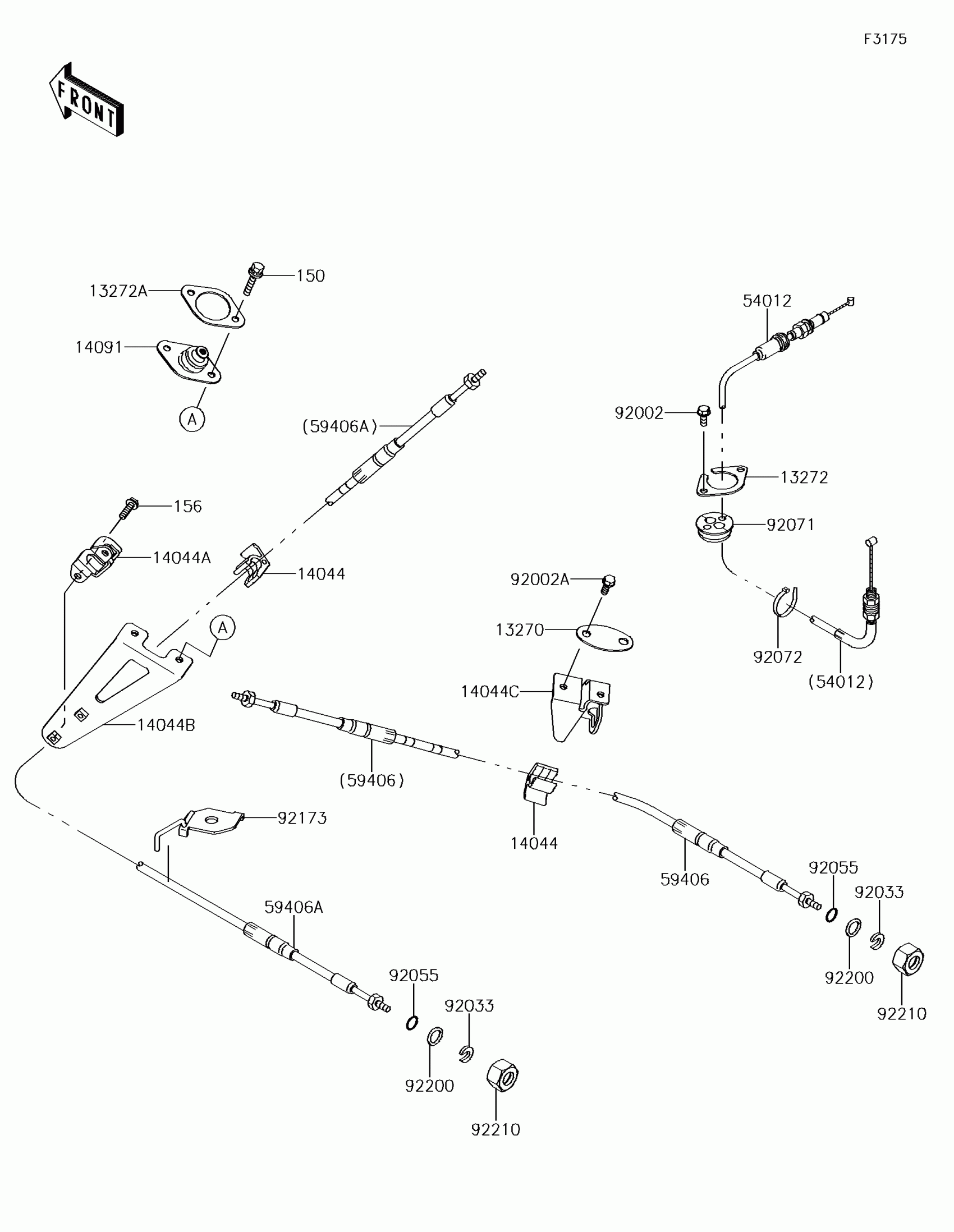

Kawasaki JET SKI® ULTRA® 310X SE Cables Diagram

Description

Price

13270

PLATE

13270-3860

$8.20

13272

PLATE

13272-3729

$13.61

13272A

PLATE

13272-3730

$14.07

14044

HOLDER-CABLE

14044-3765

$3.14

14044A

HOLDER-CABLE,REVERSE

14044-3766

$14.29

14044B

HOLDER-CABLE,REVERSE

14044-3767

$14.02

14044C

HOLDER-CABLE,STEERING

14044-3769

$16.05

14091

COVER

14091-3821

$5.68

150

BOLT-WS,6X25

150R0625

$3.88

156

BOLT-WP,6X16

156R0616

$2.76

54012

CABLE-THROTTLE

54012-0592

$47.66

59406

CABLE-STRG

59406-0003

$132.19

59406A

CABLE-STRG,REVERSE

59406-0004

$229.36

92002

BOLT,6X16

92002-3728

$3.24

92002A

BOLT,6X20

92002-3755

$3.57

92033

RING-SNAP

92033-3735

$5.87

92055

RING-O

92055-3778

$1.04

92071

GROMMET,HARNESS

92071-3790

$9.34

92072

BAND,L=368.3

92072-3872

$1.20

92173

CLAMP

92173-3704

$23.92

92200

WASHER,14.5X20X1.5

92200-3793

$1.85

92210

NUT,22MM

92210-3772

$10.34
