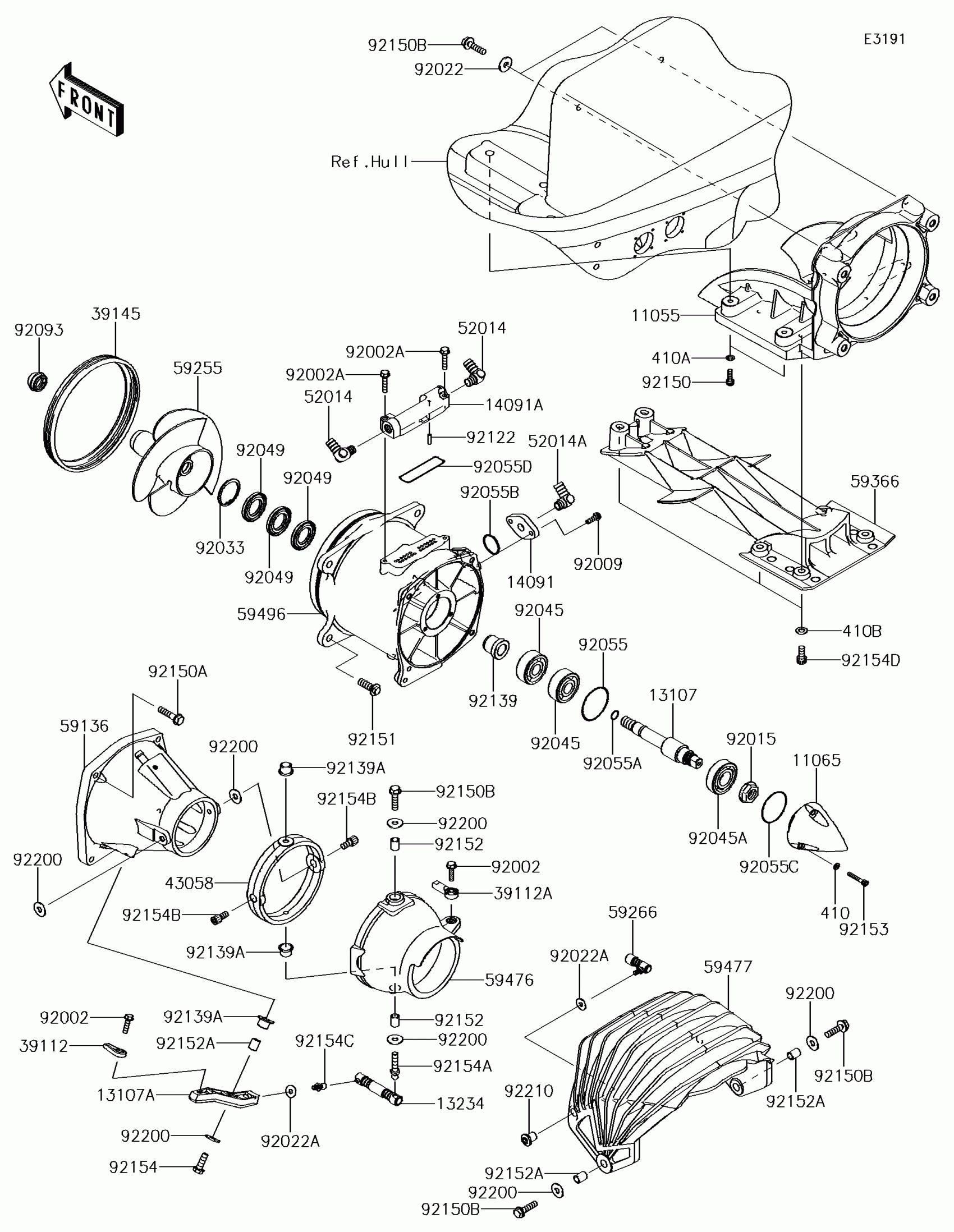

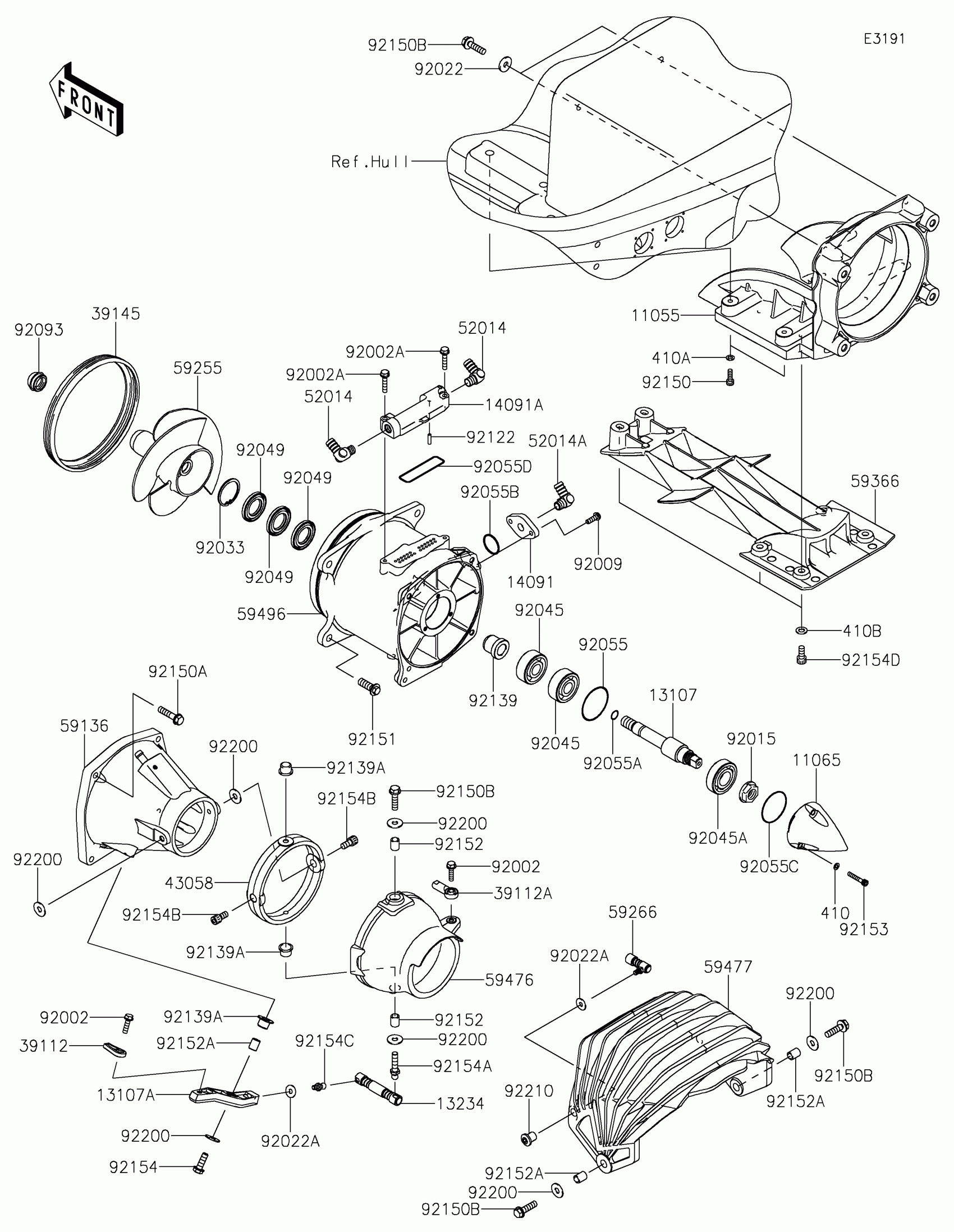

Kawasaki JET SKI® ULTRA® 310X SE Jet Pump Diagram

#

Description
Price

11055

BRACKET,PUMP

11055-3710

$578.89

11065

CAP

11065-0888

$63.00

13107

SHAFT

13107-0764

$105.12

13107A

SHAFT

13107-3804

$46.27

13234

SHAFT-COMP

13234-3712

$66.77

14091

COVER,COOLING TUBE

14091-3808

$23.71

14091A

COVER,VANE GUIDE

14091-3817

$29.40

39112

RODEND-TIE

39112-3703

$20.69

39112A

RODEND-TIE

39112-3707

$18.69

39145

TRIM-SEAL

39145-3809

$26.63

43058

RING

43058-3735

$55.40

52014

ELBOW

52014-3711

$26.63

52014A

ELBOW

52014-3727

$39.45

59136

NOZZLE-PUMP

59136-3768

$173.34

59255

IMPELLER-COMP

59255-0001

$456.03

59266

JOINT-BALL

59266-3710

$35.24

59366

GRATE

59366-3724

$244.55

59476

NOZZLE-STRG

59476-0063

$317.19

59477

BUCKET-REVERSE

59477-0001

$242.17

59496

VANE-GUIDE

59496-3767

$490.64

92002

BOLT,6X25

92002-3714

$3.81

92002A

BOLT,6X30

92002-3726

$3.57

92009

SCREW,6X20

92009-3848

$2.15

92015

NUT,18MM

92015-1512

$14.25

92022

WASHER,8.4X23X2.5

92022-3744

$3.19

92022A

WASHER

92022-567

$1.89

92033

RING-SNAP

92033-3730

$6.94

92045

BEARING-BALL,6303R-6

92045-3740

$36.26

92045A

BEARING-BALL,62/222RS

92045-3743

$18.58

92049

SEAL-OIL

92049-3739

$25.61

92055

RING-O,49.7X2.4

92055-0183

$1.73

92055A

RING-O,12X1.5

92055-025

$3.57

92055B

RING-O,27.7X1.9

92055-1272

$4.18

92055C

RING-O

92055-3741

$2.30

92055D

RING-O,66.5X2.0

92055-3784

$5.69

92093

SEAL

92093-3749

$3.78

92122

ROLLER

92122-0044

$4.85

92139

BUSHING

92139-0767

$30.28

92139A

BUSHING

92139-3720

$6.72

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

410

W-PLAIN-S,5MM

410S0500

$1.20

410A

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

410B

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

92150A

BOLT,8X35

92150-3792

$5.61

92150B

BOLT,FLANGED,8X30

92150-3803

$5.61

92151

BOLT,10X30

92151-3706

$5.71

92152

COLLAR,8.2X11.8X13.5

92152-1694

$8.37

92152A

COLLAR,8.2X11.8X15

92152-3703

$5.86

92153

BOLT,SOCKET,5X30

92153-3742

$2.09

92154

BOLT,FLANGED,8X25

92154-3705

$5.53

92154A

BOLT,BALL,8X30

92154-3706

$29.52

92154B

BOLT,SOCKET,8X15

92154-3707

$12.02

92154C

BOLT,BALL,6MM

92154-3710

$22.58

92154D

BOLT,SOCKET,8X18

92154-3711

$3.85

92200

WASHER,8.0X22.0X1.5

92200-0174

$1.85

92210

NUT,6MM

92210-3789

$19.42
