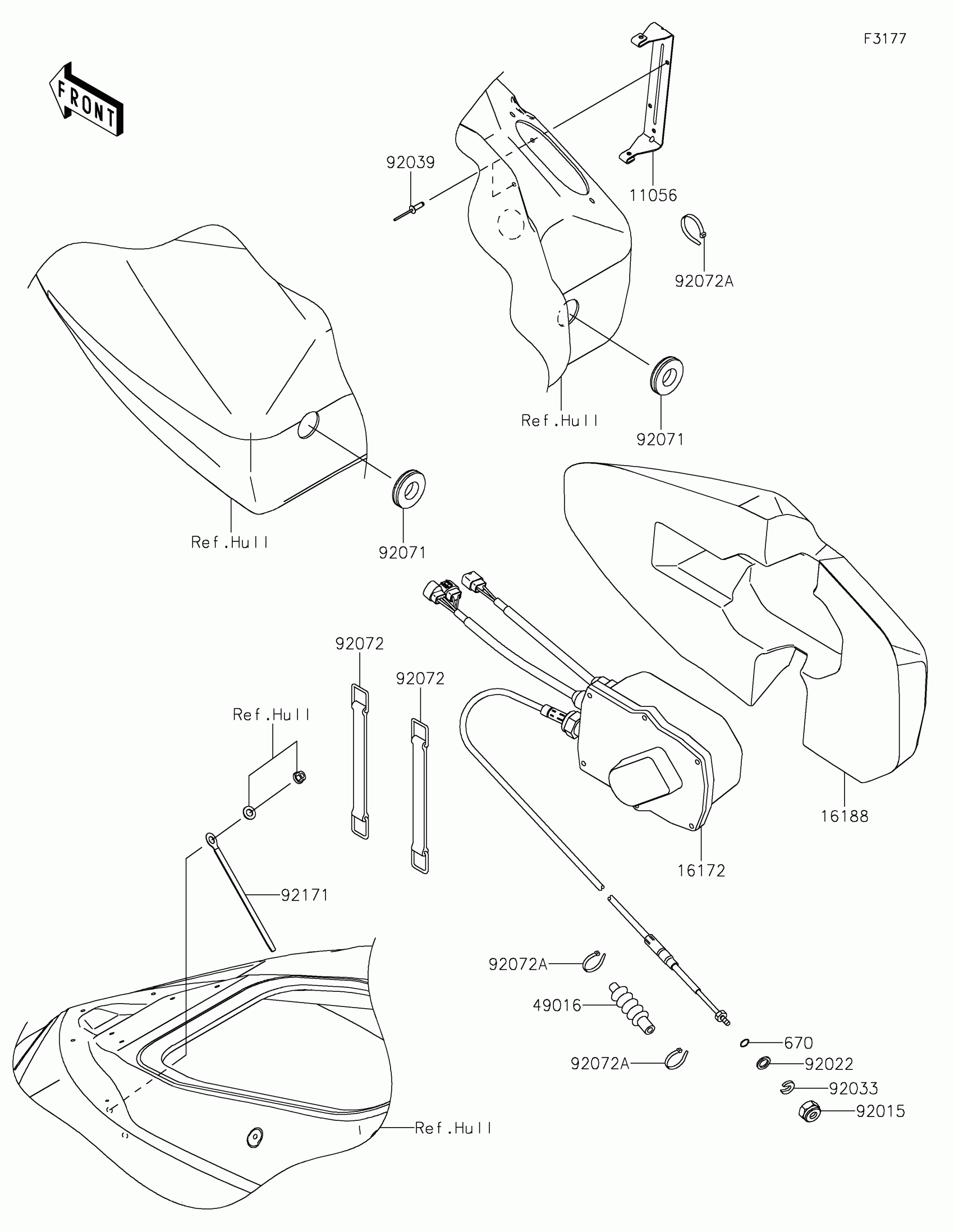

Kawasaki JET SKI® ULTRA® 310X SE Control Diagram

Description

Price

11056

BRACKET

11056-0711

$16.00

16172

ACTUATOR,JET PUMP

16172-0033

$971.06

16188

FLOAT

16188-0037

$22.75

49016

COVER-SEAL,TILT CABLE

49016-3702

$3.13

670

O RING,11MM

670B2011

$0.98

92015

NUT,20MM

92015-526

$30.30

92022

WASHER

92022-535

$7.25

92033

RING-SNAP,7.7X17.5X3.0

92033-3737

$5.15

92039

RIVET

92039-3714

$0.79

92071

GROMMET

92071-3840

$5.03

92072

BAND,BATTERY

92072-3879

$36.42

92072A

BAND,L=100.08

92072-3882

$1.71

92171

CLAMP,L=150

92171-3717

$7.61
