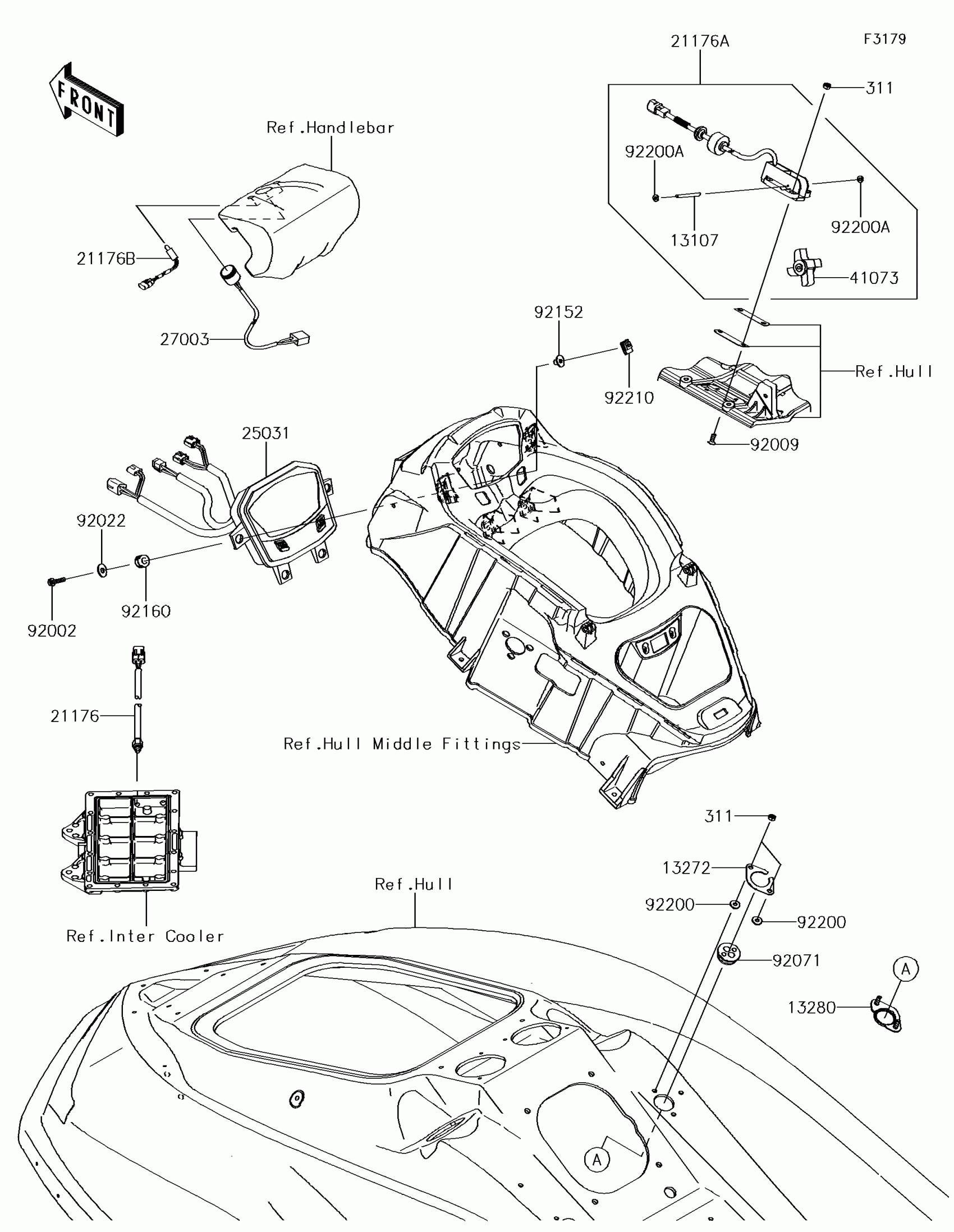

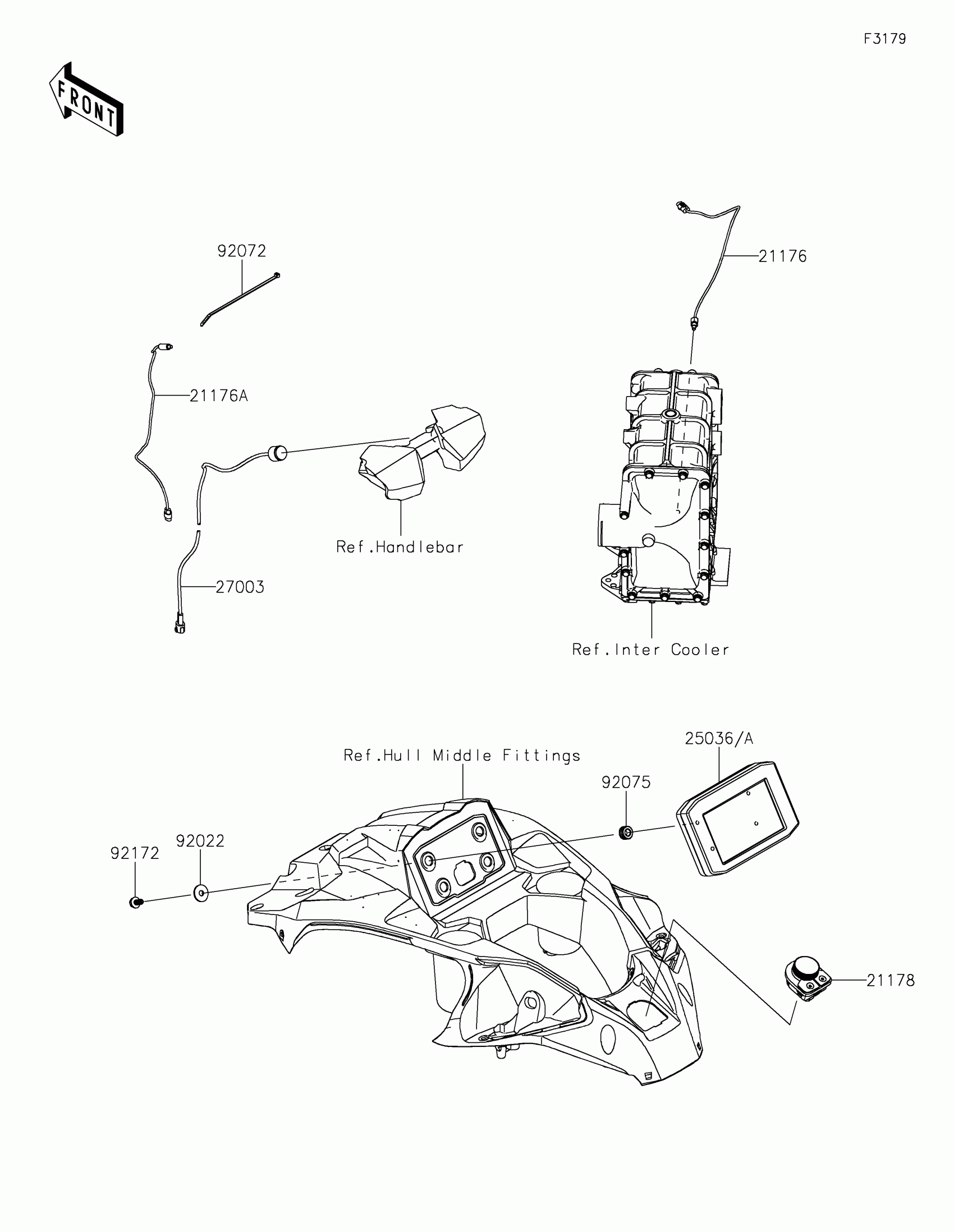

Kawasaki JET SKI® ULTRA® 310X Meters Diagram

Description

Price

13107

SHAFT

13107-3807

$4.29

13272

PLATE

13272-3729

$13.61

13280

HOLDER

13280-0724

$37.74

21176

SENSOR,TEMP

21176-0072

$75.97

21176A

SENSOR,SPEED

21176-3775

$172.98

21176B

SENSOR,AIR TEMP

21176-3778

$95.04

25031

METER-ASSY

25031-0689

$961.66

27003

HORN

27003-3706

$67.35

311

NUT-HEX,6MM

311R0600

$0.65

41073

WHEEL-ASSY,PADDLE

41073-3701

$12.76

92002

BOLT,6X25

92002-3714

$3.81

92009

SCREW,6X16

92009-3703

$3.29

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92071

GROMMET,HARNESS

92071-3790

$9.34

92152

COLLAR

92152-3755

$6.15

92160

DAMPER,10X20X12

92160-1167

$3.57

92200

WASHER,6.5X16X2.0

92200-1543

$1.68

92200A

WASHER

92200-3805

$3.36

92210

NUT,6MM

92210-3768

$4.39
