2018 Kawasaki Jet Ski® Ultra® 310X Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2018 Kawasaki Jet Ski® Ultra® 310X, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

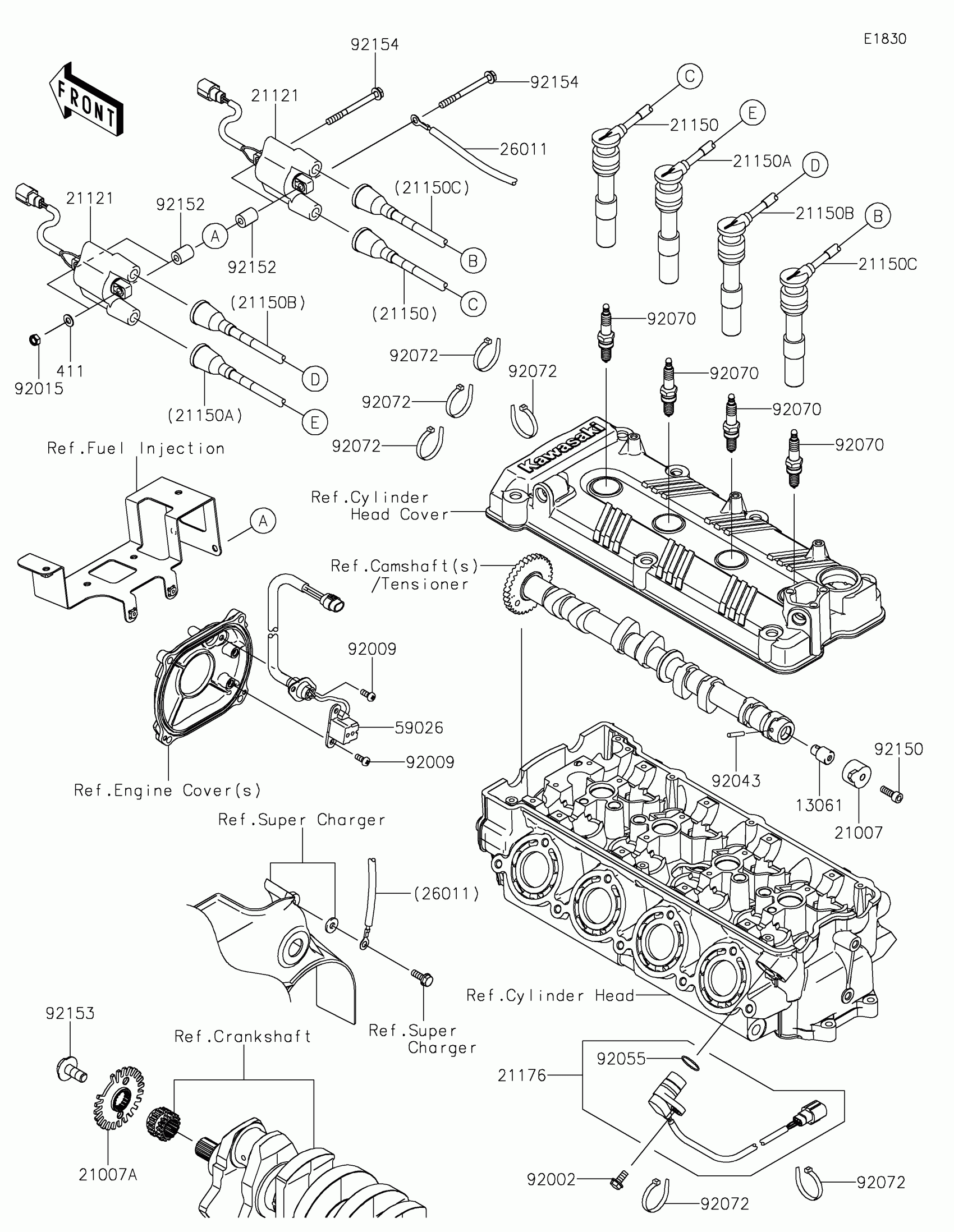

2018 Kawasaki Jet Ski® Ultra® 310X Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13061

BOSS,CAM SENSOR

13061-1687

1

$15.29

In stock

21007

ROTOR,EX CAM

21007-3742

1

$21.24

In stock

21007A

ROTOR,PULSING

21007-3747

1

$16.98

In stock

21121

COIL-IGNITION

21121-0720

1

$181.70

In stock

21150

CORD-ASSY,#1,L=340

21150-0006

1

$72.54

In stock

21150A

CORD-ASSY,#2,L=450

21150-0007

1

$72.54

In stock

21150B

CORD-ASSY,#3,L=540

21150-0008

1

$72.54

In stock

21150C

CORD-ASSY,#4,L=600

21150-0009

1

$72.54

In stock

21176

SENSOR

21176-1077

1

$92.42

In stock

59026

COIL-PULSING

59026-3702

1

$123.43

In stock

92002

BOLT,6X16

92002-3728

1
Out of stock

92009

SCREW,5X12

92009-1296

1
Out of stock

92015

NUT,6MM

92015-3767

1

$3.72

In stock

92037

CLAMP,HOSE

92037-1603

1

$4.42

In stock

92043

PIN

92043-1575

1

$2.03

In stock

92055

RING-O

92055-1639

1

$2.49

In stock

92070

1

$23.25

In stock

92072

BAND,L=188.85

92072-0105

1

$1.51

In stock

92150

BOLT,6X18

92150-1645

1

$2.92

In stock

92150A

BOLT,6X70

92150-3753

1

$7.24

In stock

92152

COLLAR

92152-3738

1
Out of stock

92153

BOLT,FLANGED,8X23

92153-0549

1
Out of stock
