2018 Kawasaki JET SKI® Ultra® 310R Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2018 Kawasaki JET SKI® Ultra® 310R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

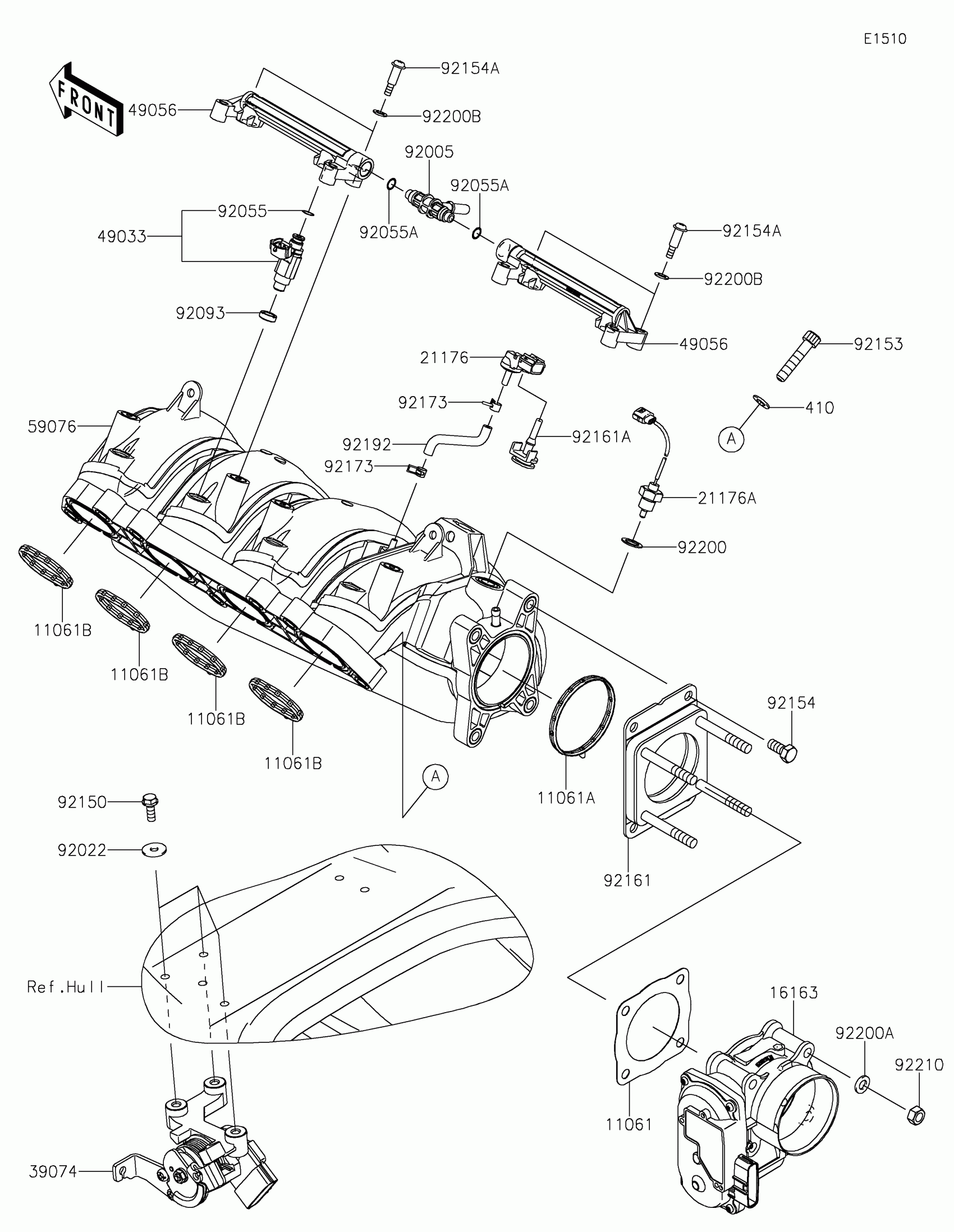

2018 Kawasaki JET SKI® Ultra® 310R Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,THROTTLE

11061-0824

1
Out of stock

11061A

GASKET,MANIFOLD

11061-3766

1
Out of stock

11061B

GASKET,THROTTLE

11061-3767

1
Out of stock

16163

THROTTLE-ASSY

16163-3717

1
Out of stock

21176

SENSOR,AIR TEMPERATURE

21176-3767

1
Out of stock

21176A

SENSOR,BOOST

21176-3777

1
Out of stock

39074

LEVER-ASSY-THROTTLE

39074-3730

1

$518.54

In stock

410

WASHER-PLAIN-SMALL,8MM

410S0800

1
Out of stock

49033

NOZZLE-INJECTION

49033-3709

1
Out of stock

49056

PIPE-INJECTION,FUEL

49056-3705

1
Out of stock

59076

MANIFOLD-INTAKE

59076-0006

1
Out of stock

92005

FITTING,FUEL PIPE

92005-3766

1
Out of stock

92022

WASHER,6.5X20X1.5

92022-3710

1
Out of stock

92055

RING-O,INJECTION NOZZLE

92055-1622

1
Out of stock

92055A

RING-O

92055-3782

1
Out of stock

92093

SEAL

92093-0127

1
Out of stock

92150

BOLT,6X18

92150-3729

1
Out of stock

92153

BOLT,SOCKET,8X40

92153-0517

1
Out of stock

92154

BOLT

92154-1389

1
Out of stock

92154A

BOLT

92154-3713

1
Out of stock

92161

DAMPER

92161-1635

1

$123.12

In stock

92161A

DAMPER

92161-3796

1

$13.61

In stock

92173

CLAMP

92173-3702

1
Out of stock

92192

TUBE

92192-1361

1
Out of stock

92200

WASHER,12X18X1

92200-0712

1
Out of stock

92200A

WASHER

92200-3806

1
Out of stock

92200B

WASHER

92200-3807

1
Out of stock

92210

NUT

92210-0897

1
Out of stock
