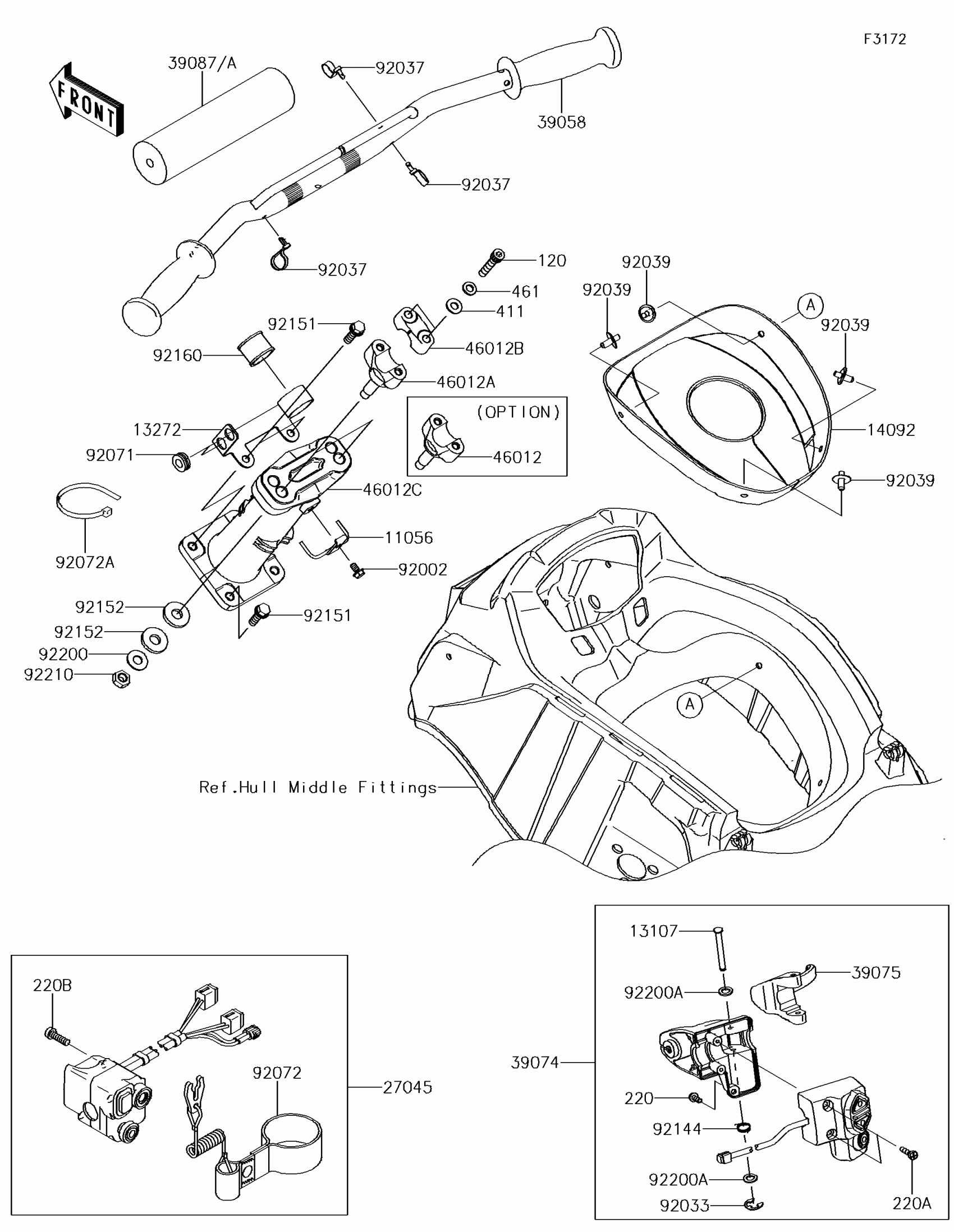

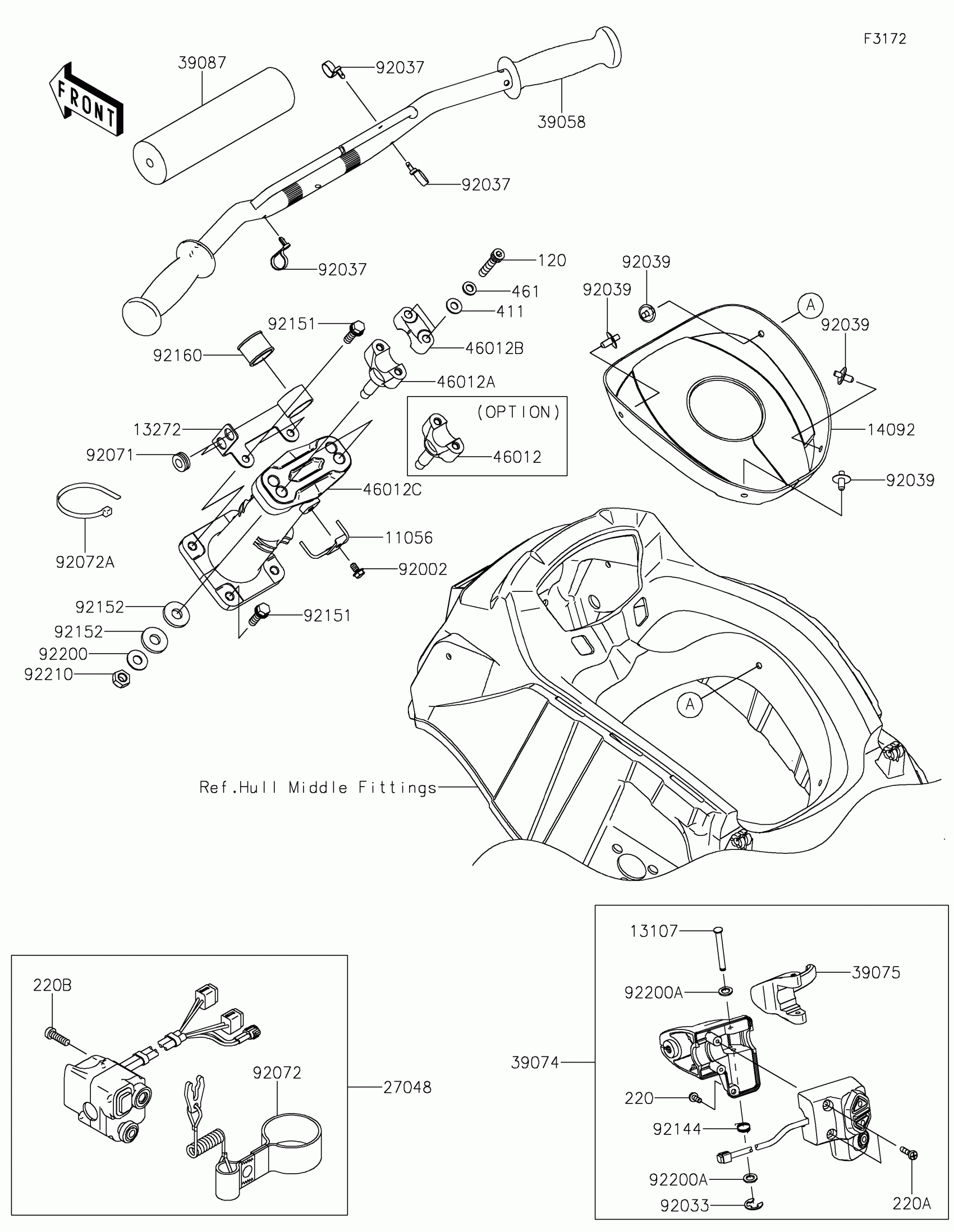

Kawasaki JET SKI® ULTRA® 310R Handlebar Diagram

#

Description
Price

11056

BRACKET

11056-2688

$31.32

120

BOLT-SOCKET,8X40

120R0840

$2.46

13107

SHAFT

13107-3766

$9.24

13272

PLATE

13272-1520

$32.37

14092

COVER,F.BLACK

14092-1124-6Z

$24.15

220

SCREW-PAN-CROS,5X14

220R0514

$3.29

220A

SCREW-PAN-CROS,5X25

220R0525

$4.23

220B

SCREW-PAN-CROS,5X30

220R0530

$4.32

27045

SWITCH-ASSY,STOP&START

27045-3767

$436.76

39058

HANDLE-COMP,F.BLACK

39058-0021-6Z

$266.98

39074

LEVER-ASSY-THROTTLE

39074-3729

$474.60

39075

LEVER-THROTTLE

39075-3715

$41.65

39087A

PAD-HANDLE

39087-0012

$29.19

411

WASHER-PLAIN,8MM

411S0800

$2.15

46012

HOLDER-HANDLE,OFF SET 5MM

46012-0333

$49.90

46012A

HOLDER-HANDLE

46012-0334

Unavailable

46012B

HOLDER-HANDLE

46012-0336

$23.53

46012C

HOLDER-HANDLE

46012-0339

$527.54

461

WASHER SPRING 8MM

461S0800

$0.57

92002

BOLT,6X12

92002-3763

$3.57

92033

RING-SNAP

92033-3723

$2.64

92037

CLAMP,SPEED,L=58

92037-1163

$4.93

92039

RIVET

92039-3785

$3.54

92071

GROMMET

92071-3716

$4.39

92072

BAND,TETHER SWITCH

92072-3809

$58.43

92072A

BAND,L=372.24

92072-3883

$1.39

92144

SPRING

92144-3749

$3.81

92151

BOLT,8X30

92151-3771

$3.88

92152

COLLAR,12.5X28X5

92152-1850

$21.47

92160

DAMPER,SPEED CONTROL

92160-1625

$14.08

92200

WASHER,10.5X24X1.5

92200-0154

$1.81

92200A

WASHER

92200-3738

$2.66

92210

NUT,LOCK,10MM

92210-3792

$5.91
