2018 Kawasaki JET SKI® Ultra® 310R Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2018 Kawasaki JET SKI® Ultra® 310R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

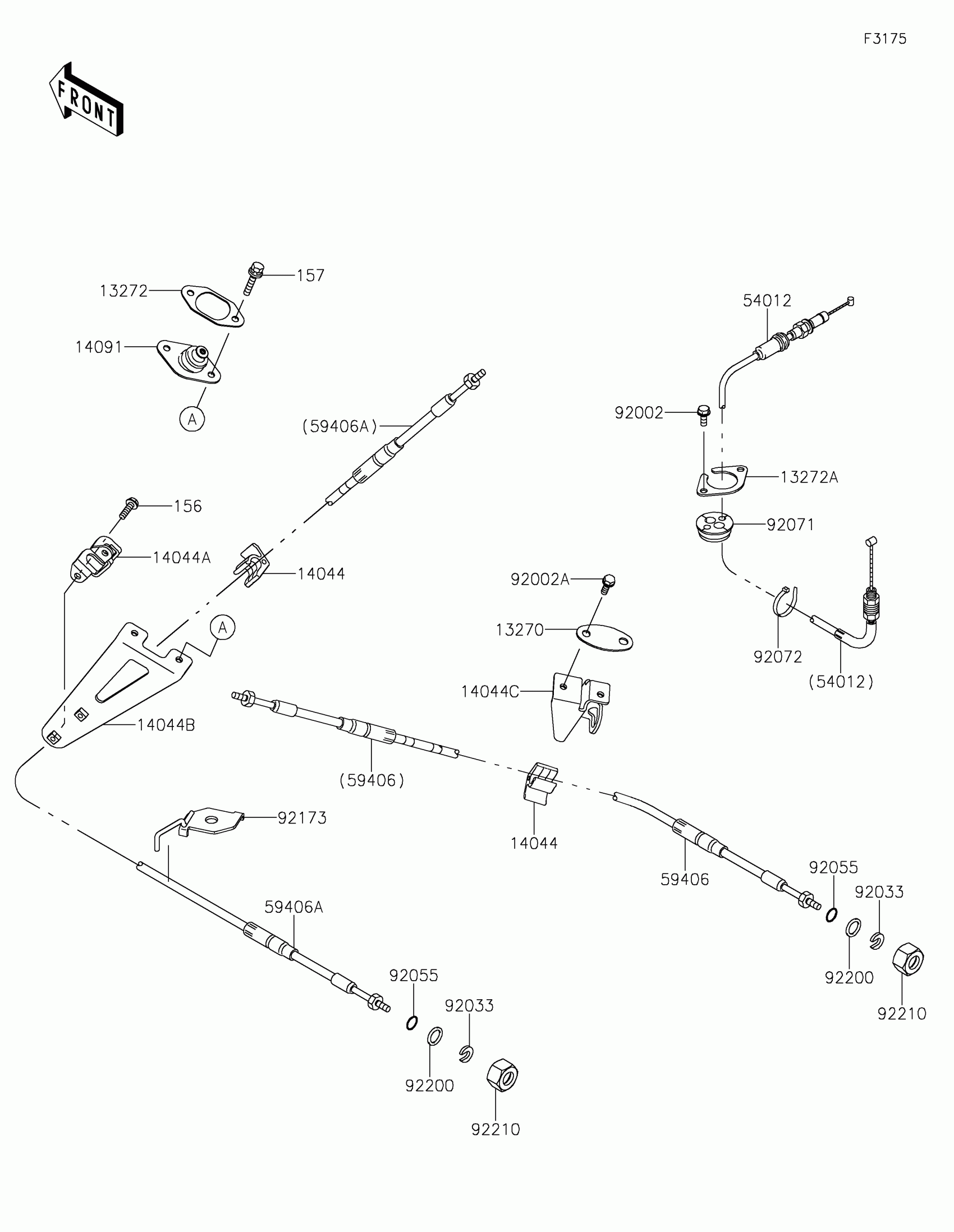

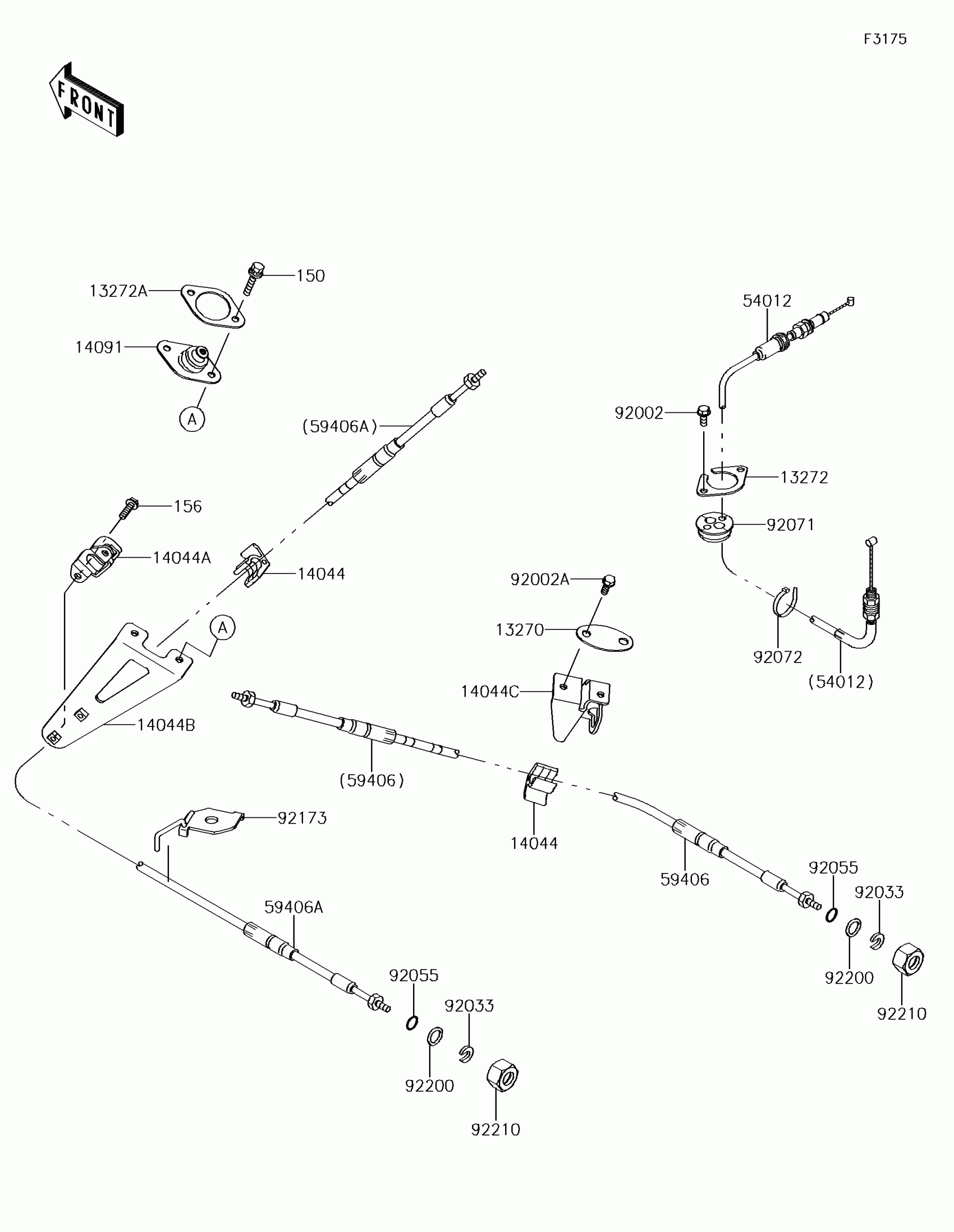

2018 Kawasaki JET SKI® Ultra® 310R Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13270

PLATE

13270-3860

1

$8.20

In stock

13272

PLATE

13272-3729

1

$13.61

In stock

13272A

PLATE

13272-3730

1

$3.17

In stock

14044

HOLDER-CABLE

14044-3765

1

$3.14

In stock

14044A

1

$14.29

In stock

14044B

1

$14.02

In stock

14044C

1

$16.05

In stock

14091

COVER

14091-3821

1
Out of stock

150

BOLT-WS,6X25

150R0625

1
Out of stock

156

BOLT-WP,6X16

156R0616

1
Out of stock

54012

CABLE-THROTTLE

54012-0592

1

$55.19

In stock

59406

CABLE-STRG

59406-0003

1
Out of stock

59406A

CABLE-STRG,REVERSE

59406-0004

1
Out of stock

92002

BOLT,6X16

92002-3728

1
Out of stock

92002A

BOLT,6X20

92002-3755

1
Out of stock

92033

RING-SNAP

92033-3735

1
Out of stock

92055

RING-O

92055-3778

1
Out of stock

92071

GROMMET,HARNESS

92071-3790

1
Out of stock

92072

BAND,L=368.3

92072-3872

1
Out of stock

92173

CLAMP

92173-3704

1
Out of stock

92200

WASHER,14.5X20X1.5

92200-3793

1
Out of stock

92210

NUT,22MM

92210-3772

1
Out of stock
