2010 Kawasaki Jet Ski® Ultra® 260LX Throttle Diagram

← All diagrams

Find the part on the Throttle diagram for your 2010 Kawasaki Jet Ski® Ultra® 260LX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

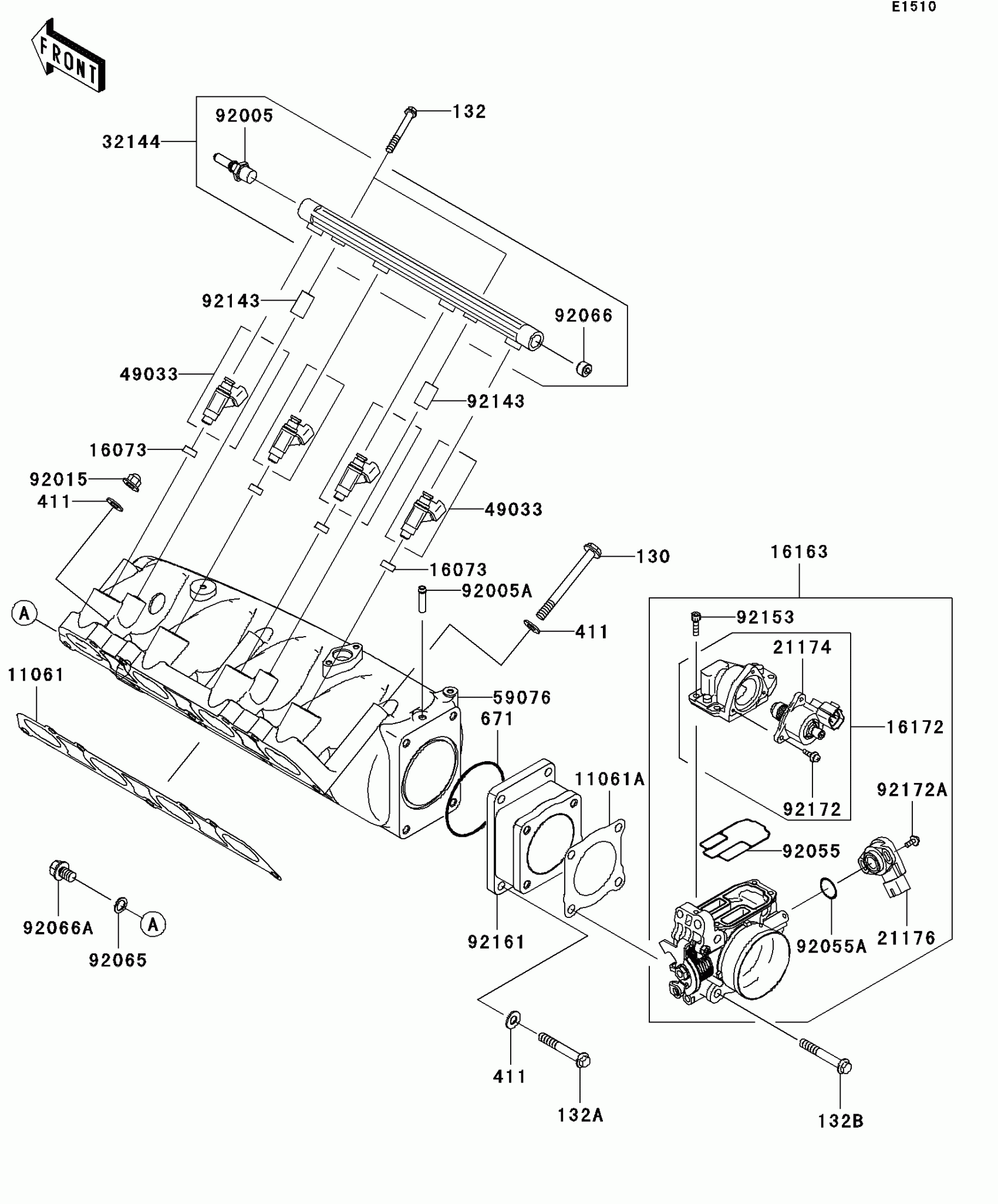

2010 Kawasaki Jet Ski® Ultra® 260LX Throttle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,MANIFOLD

11061-3716

1
Out of stock

11061A

GASKET,THROTTLE

11061-3738

1
Out of stock

16073

INSULATOR

16073-3707

1
Out of stock

16163

THROTTLE-ASSY,AC60

16163-3712

1
Out of stock

16172

ACTUATOR

16172-3705

1
Out of stock

21174

MOTOR-ELECTRIC,STM

21174-3706

1
Out of stock

21176

SENSOR,TPS

21176-3762

1
Out of stock

32144

PIPE-ASSY

32144-3706

1
Out of stock

49033

NOZZLE-INJECTION

49033-3708

1
Out of stock

59076

MANIFOLD-INTAKE

59076-3735

1
Out of stock

92005

FITTING

92005-3754

1
Out of stock

92005A

FITTING

92005-3761

1
Out of stock

92015

NUT,CAP,8MM

92015-1371

1
Out of stock

92055

RING-O

92055-3773

1
Out of stock

92055A

RING-O

92055-3774

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92066

PLUG

92066-3778

1
Out of stock

92066A

PLUG

92066-3781

1
Out of stock

92143

COLLAR

92143-3731

1
Out of stock

92153

BOLT

92153-3723

1
Out of stock

92161

DAMPER

92161-3771

1

$5.51

In stock

92172

SCREW

92172-3710

1
Out of stock

92172A

SCREW

92172-3711

1
Out of stock

130

BOLT-FLANGED,8X120

130CD08120

1

$3.49

In stock

132

1

$4.24

In stock

132A

1

$2.36

In stock

132B

1

$2.63

In stock

411

WASHER-PLAIN,8MM

411S0800

1
Out of stock

671

O RING,70MM

671B2570

1
Out of stock
