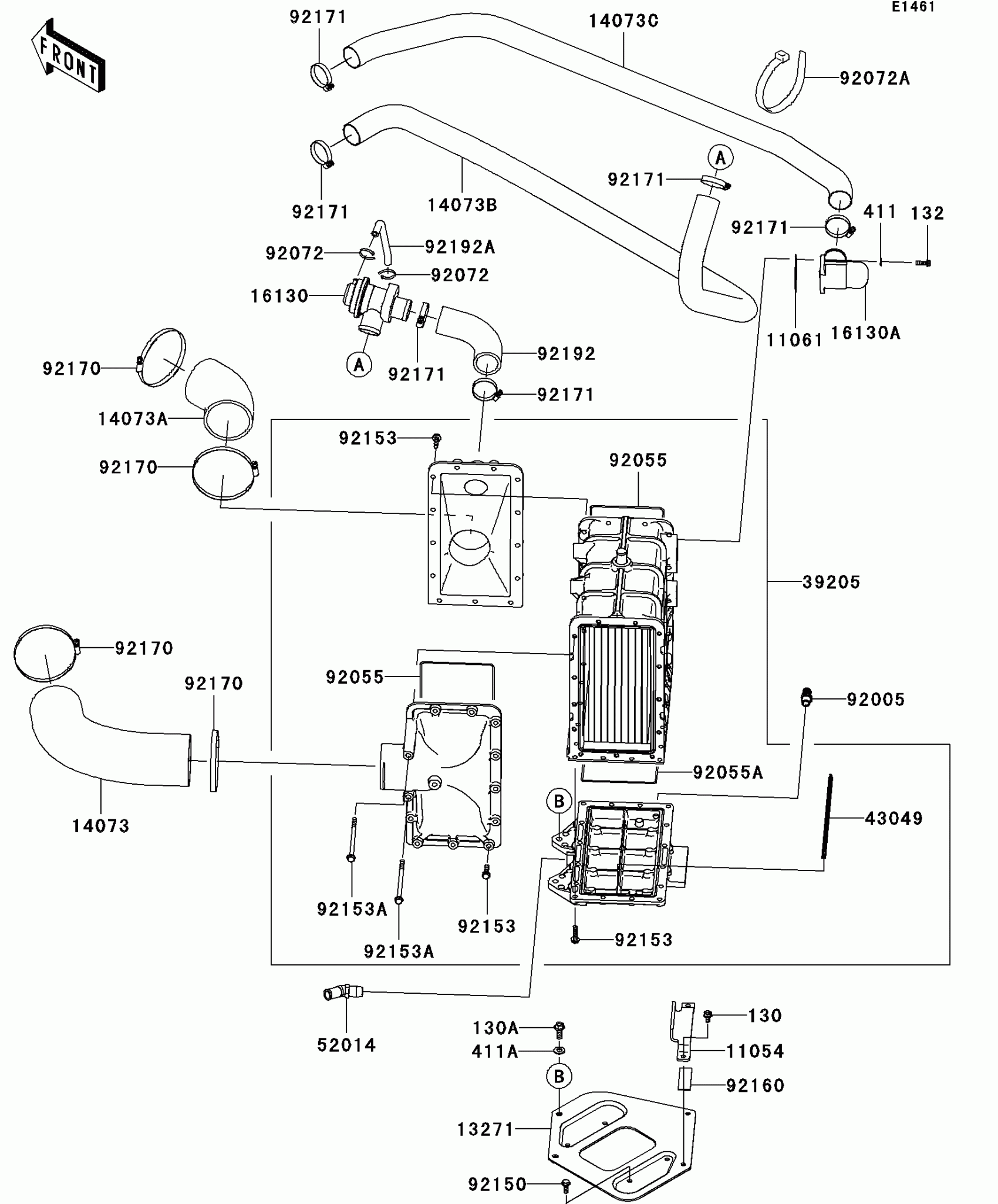

2010 Kawasaki Jet Ski® Ultra® 260LX Inter Cooler Diagram

← All diagrams

Find the part on the Inter Cooler diagram for your 2010 Kawasaki Jet Ski® Ultra® 260LX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Jet Ski® Ultra® 260LX Inter Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11054

BRACKET

11054-3739

1

$34.93

In stock

11061

GASKET

11061-3750

1
Out of stock

13271

PLATE

13271-3940

1

$124.76

In stock

14073

DUCT,S/C-I/C

14073-3813

1

$228.07

In stock

14073A

DUCT,I/C-TH.

14073-3823

1

$40.05

In stock

14073B

1

$30.89

In stock

14073C

DUCT,BLOW OFF VALVE-A/C

14073-3835

1
Out of stock

16130

1

$534.35

In stock

16130A

VALVE-ASSY-RELIEF

16130-3705

1
Out of stock

39205

1

$2,905.32

In stock

43049

PACKING

43049-3719

1

$11.32

In stock

52014

ELBOW

52014-3714

1

$46.98

In stock

92005

FITTING

92005-3714

1
Out of stock

92055

RING-O

92055-3779

1

$10.61

In stock

92055A

RING-O

92055-3780

1

$8.17

In stock

92072

BAND,L=100.08

92072-3882

1

$1.71

In stock

92072A

BAND,L=372.24

92072-3883

1

$1.39

In stock

92150

BOLT,6X18

92150-3729

1

$3.72

In stock

92153

BOLT,FLANGED,6X25

92153-3750

1

$2.15

In stock

92153A

BOLT,FLANGED,6X110

92153-3751

1

$4.14

In stock

92160

DAMPER

92160-1075

1

$5.71

In stock

92170

CLAMP

92170-3764

1

$9.95

In stock

92171

CLAMP

92171-3725

1

$12.92

In stock

92192

TUBE,I/C-ABV

92192-3784

1
Out of stock

92192A

TUBE,5.8X10.8X140

92192-3846

1
Out of stock

130

BOLT-FLANGED,6X12

130CD0612

1

$1.53

In stock

130A

BOLT-FLANGED,8X20

130CD0820

1

$2.20

In stock

132

1

$3.10

In stock

411

WASHER-PLAIN,6MM

411S0600

1

$1.73

In stock

411A

WASHER-PLAIN,8MM

411S0800

1

$2.49

In stock
