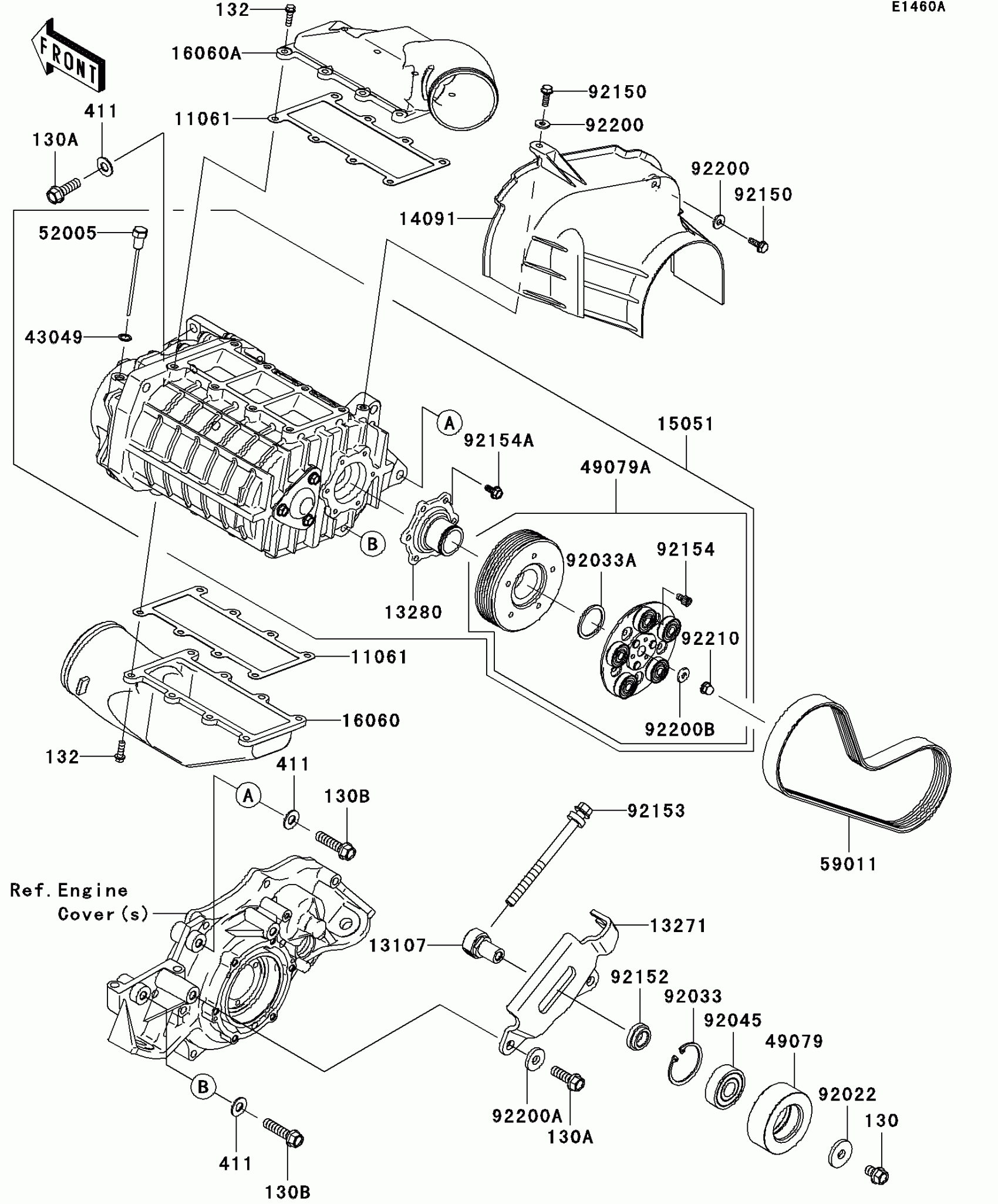

Kawasaki Jet Ski® Ultra® 260LX Super Charger(US-KAW90606 09-) Diagram

Description

Price

11061

GASKET

11061-3745

Unavailable

13107

SHAFT

13107-3791

$113.95

13271

PLATE,BELT TENSIONER

13271-3922

$85.68

13280

HOLDER

13280-3758

$160.57

14091

COVER,BELT

14091-3811

$32.96

15051

COMPRESSOR-AIR,SUPER CHARGER

15051-3702

$2,757.73

16060

PIPE-INTAKE,S/C IN

16060-3721

$334.81

16060A

PIPE-INTAKE,S/C OUT

16060-3722

$334.81

43049

PACKING

43049-3718

$9.31

49079

PULLEY-BELT

49079-3701

$95.50

49079A

PULLEY-BELT

49079-3703

$711.52

52005

GAUGE,OIL

52005-3712

$101.07

59011

BELT,6PK755

59011-3701

$48.15

92022

WASHER,32X10.5X4

92022-3023

$6.74

92033

RING-SNAP,47MM

92033-3734

$17.61

92033A

RING-SNAP

92033-3736

$17.61

92045

BEARING-BALL,17X47X14

92045-3742

$20.47

92150

BOLT,6X18

92150-3729

$3.57

92152

COLLAR,17X30X9.5

92152-3747

$16.14

92153

BOLT

92153-3758

$43.10

92154

BOLT,6X10

92154-3702

$5.51

92154A

BOLT,6X14

92154-3703

$8.76

92200

WASHER,6.5X16X2.0

92200-1543

$1.68

92200A

WASHER,10.5X26X4

92200-3798

$3.54

92200B

WASHER

92200-3804

$7.93

92210

NUT

92210-3798

$8.80

130

BOLT-FLANGED,10X14

130CD1014

$2.25

130A

BOLT-FLANGED,10X30

130CD1030

$1.95

130B

BOLT-FLANGED,10X40

130CD1040

$2.05

132

BOLT-FLANGED-SMALL,6X18

132BD0618

$2.97

411

WASHER-PLAIN,10MM

411S1000

$1.89
