2010 Kawasaki Jet Ski® STX OIL PAN Diagram

← All diagrams

Find the part on the OIL PAN diagram for your 2010 Kawasaki Jet Ski® STX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

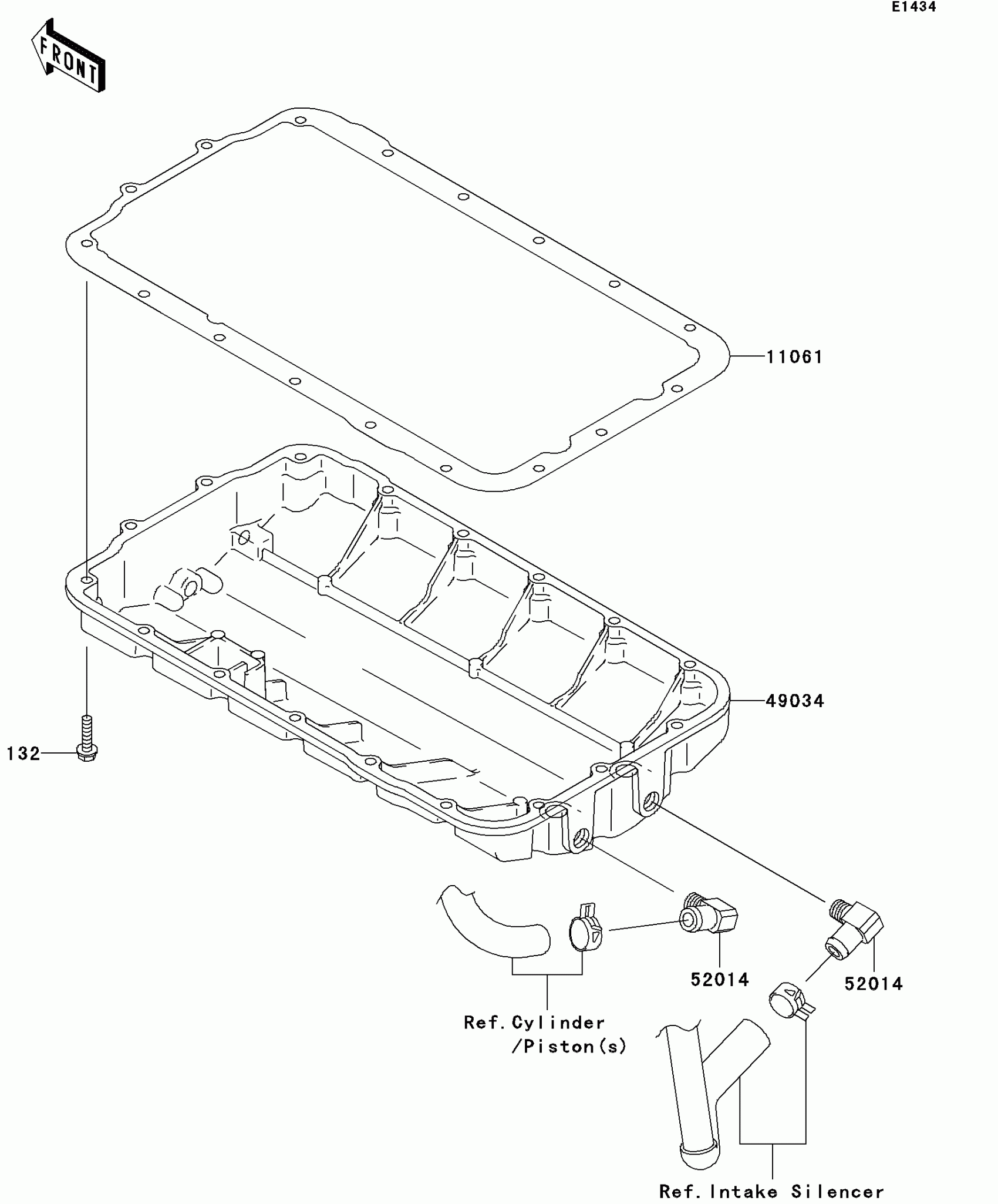

2010 Kawasaki Jet Ski® STX OIL PAN Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,OIL PAN

11061-3710

1
Out of stock

49034

PAN-OIL

49034-3702

1
Out of stock

52014

ELBOW

52014-3717

1
Out of stock

132

1

$4.28

In stock
