2010 Kawasaki Jet Ski® STX Cylinder Head Diagram

← All diagrams

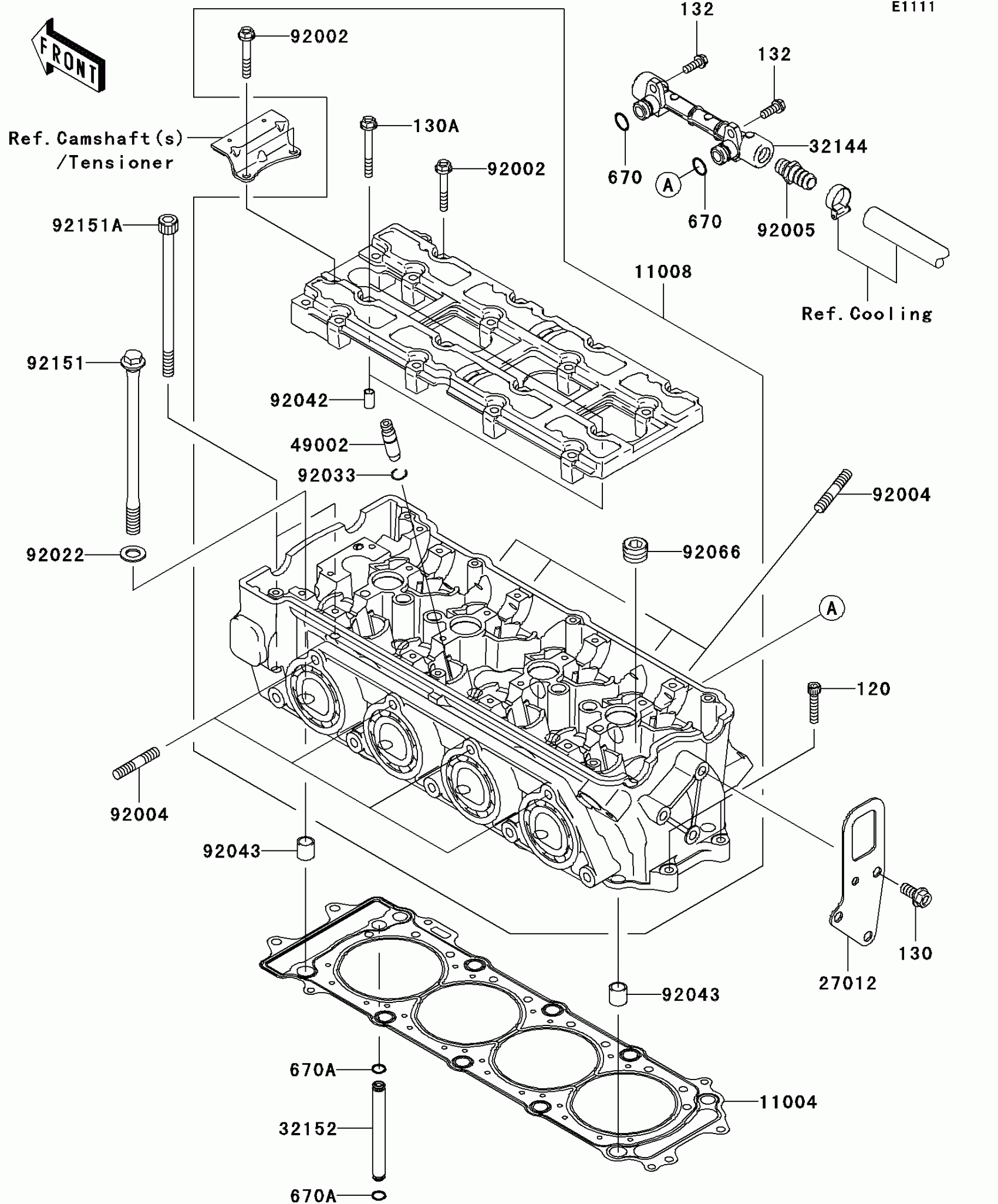

Find the part on the Cylinder Head diagram for your 2010 Kawasaki Jet Ski® STX, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Kawasaki Jet Ski® STX Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-3721

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-3709

1
Out of stock

27012

HOOK,ENGINE,RR

27012-3856

1
Out of stock

32144

PIPE-ASSY

32144-3709

1
Out of stock

32152

PIPE,OIL

32152-1544

1
Out of stock

49002

GUIDE-VALVE

49002-1140

—
Out of stock

92002

BOLT,6X40

92002-1756

1
Out of stock

92004

STUD,8X30

92004-3743

1
Out of stock

92005

FITTING

92005-3714

1
Out of stock

92022

WASHER,11.5X20.5X1.6

92022-1720

1
Out of stock

92033

RING-SNAP

92033-1247

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1
Out of stock

92043

PIN,14X14

92043-1593

1
Out of stock

92066

PLUG,PT1/2X12.5

92066-0002

1
Out of stock

92151

BOLT,11X168

92151-1513

1
Out of stock

92151A

BOLT,SOCKET,7X120

92151-1804

1
Out of stock

120

BOLT-SOCKET,6X30

120CD0630

1
Out of stock

130

BOLT-FLANGED,8X18

130BD0818

1

$2.20

In stock

130A

BOLT-FLANGED,6X50

130CD0650

1

$4.32

In stock

132

1

$3.28

In stock

670

O RING,12MM

670B2012

1
Out of stock

670A

O RING,7MM

670D1507

1
Out of stock
