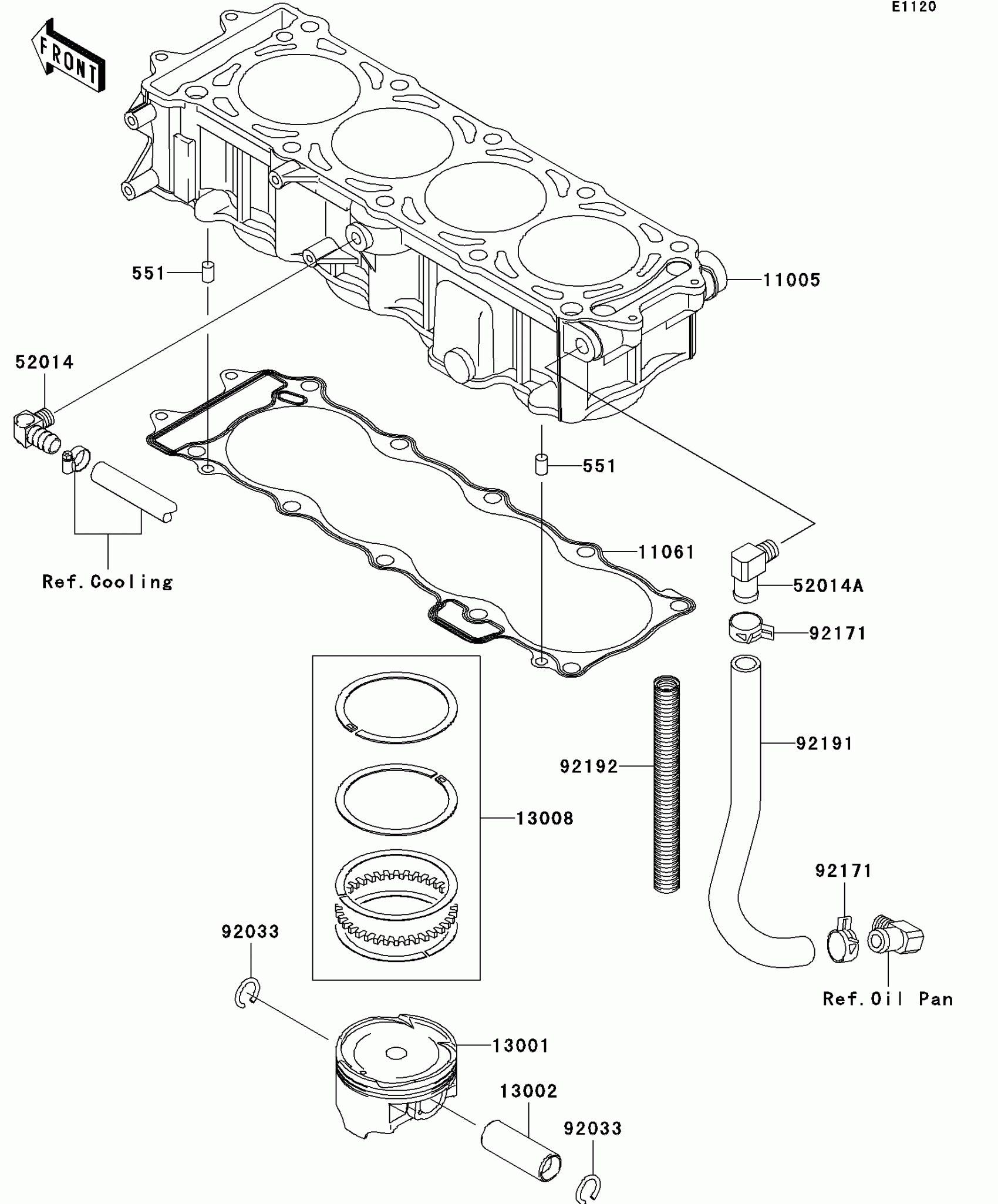

Kawasaki Jet Ski® STX Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-3768

$1,383.95

11061

GASKET,CYLINDER BASE

11061-3708

$59.78

13001

PISTON-ENGINE

13001-3737

$119.08

13002

PIN-PISTON

13002-3709

$25.41

13008

RING-SET-PISTON

13008-1196

$59.52

52014

ELBOW

52014-3711

$26.63

52014A

ELBOW

52014-3717

$33.70

92033

RING-SNAP

92033-1188

$2.72

92171

CLAMP,TUBE

92171-3710

Unavailable

92191

TUBE,BREATHER

92191-3983

$15.36

92192

TUBE,19.5X23.8X170

92192-3702

Unavailable

551

PIN-DOWEL

551R0812

$6.04
