2020 Kawasaki JET SKI® STX®160 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2020 Kawasaki JET SKI® STX®160, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

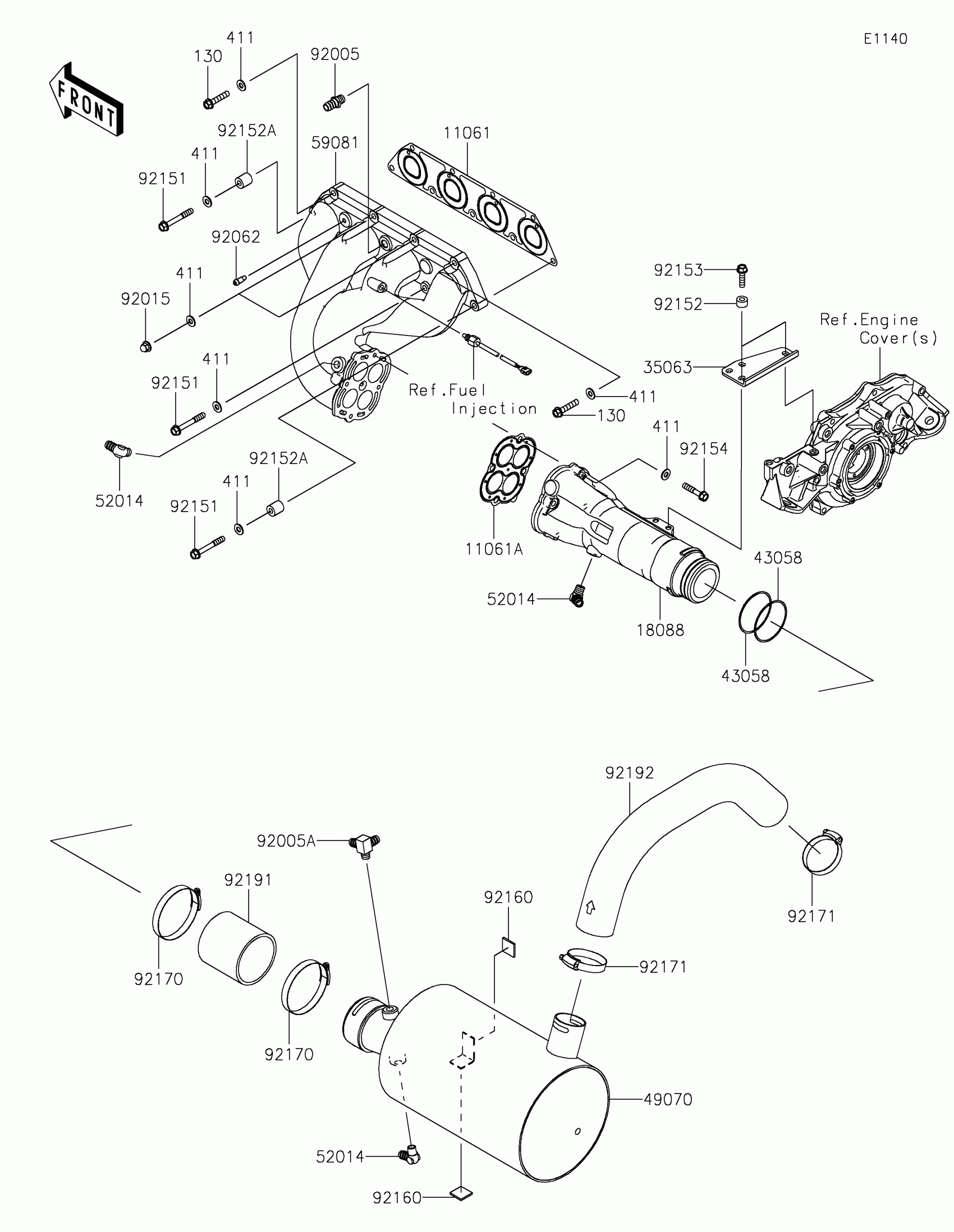

2020 Kawasaki JET SKI® STX®160 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,MANIFOLD EXHAUST

11061-3713

1
Out of stock

11061A

GASKET,PIPE EXHAUST

11061-3714

1
Out of stock

130

BOLT-FLANGED,8X40

130CD0840

1

$3.35

In stock

18088

PIPE-EXHAUST

18088-3723

1
Out of stock

35063

STAY

35063-3704

1
Out of stock

411

WASHER-PLAIN,8MM

411S0800

1
Out of stock

43058

RING,GASKET

43058-3733

1
Out of stock

49070

MUFFLER-COMP

49070-0045

1
Out of stock

52014

ELBOW

52014-3711

1
Out of stock

59081

MANIFOLD-EXHAUST

59081-3741

1
Out of stock

92005

FITTING

92005-3714

1
Out of stock

92005A

FITTING

92005-3751

1
Out of stock

92015

NUT,CAP,8MM

92015-1371

1
Out of stock

92062

NOZZLE

92062-0562

1
Out of stock

92151

BOLT,8X60

92151-3730

1
Out of stock

92152

COLLAR

92152-3736

1
Out of stock

92152A

COLLAR,8.2X17X10

92152-3740

1
Out of stock

92153

BOLT,FLANGED,8X30

92153-3722

1
Out of stock

92154

BOLT,FLANGED,8X40

92154-0992

1
Out of stock

92160

DAMPER,25X25

92160-3864

1
Out of stock

92170

CLAMP

92170-3764

1

$9.95

In stock

92171

CLAMP

92171-3723

1
Out of stock

92191

TUBE,PIPE EX-MUFFLER

92191-3986

1
Out of stock

92192

TUBE,W/M-TAIL PIPE

92192-1173

1
Out of stock
